APPC-15XP
(R23-7222)

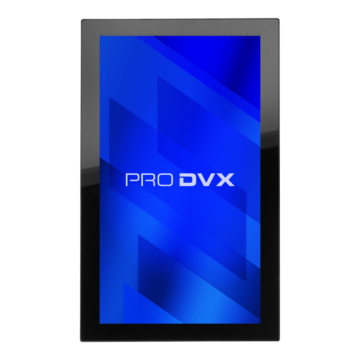

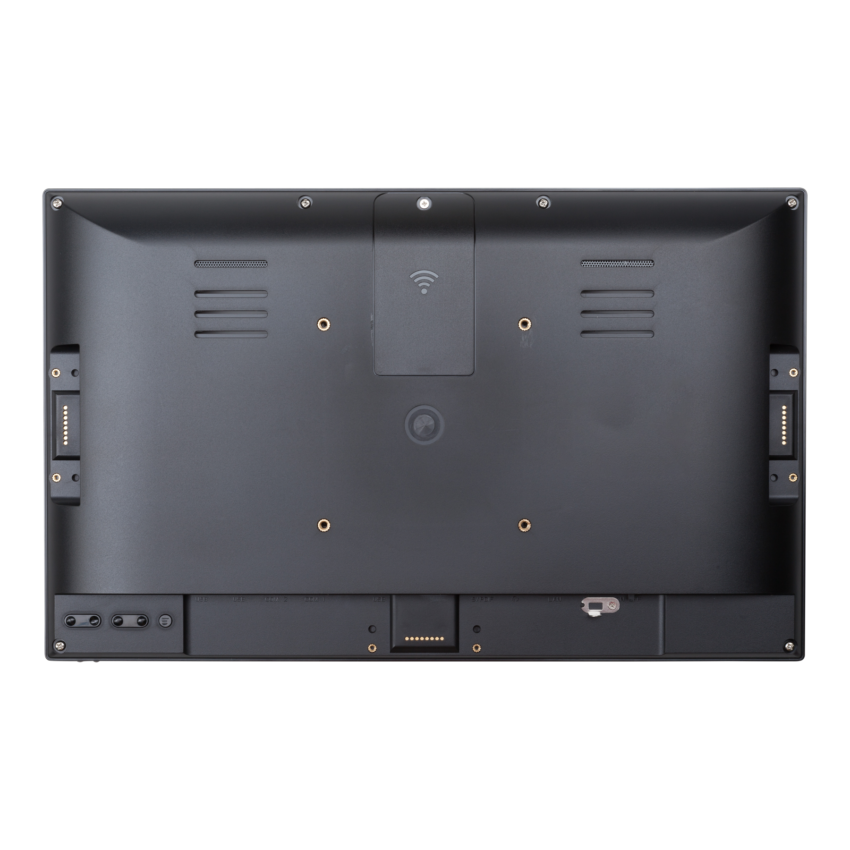

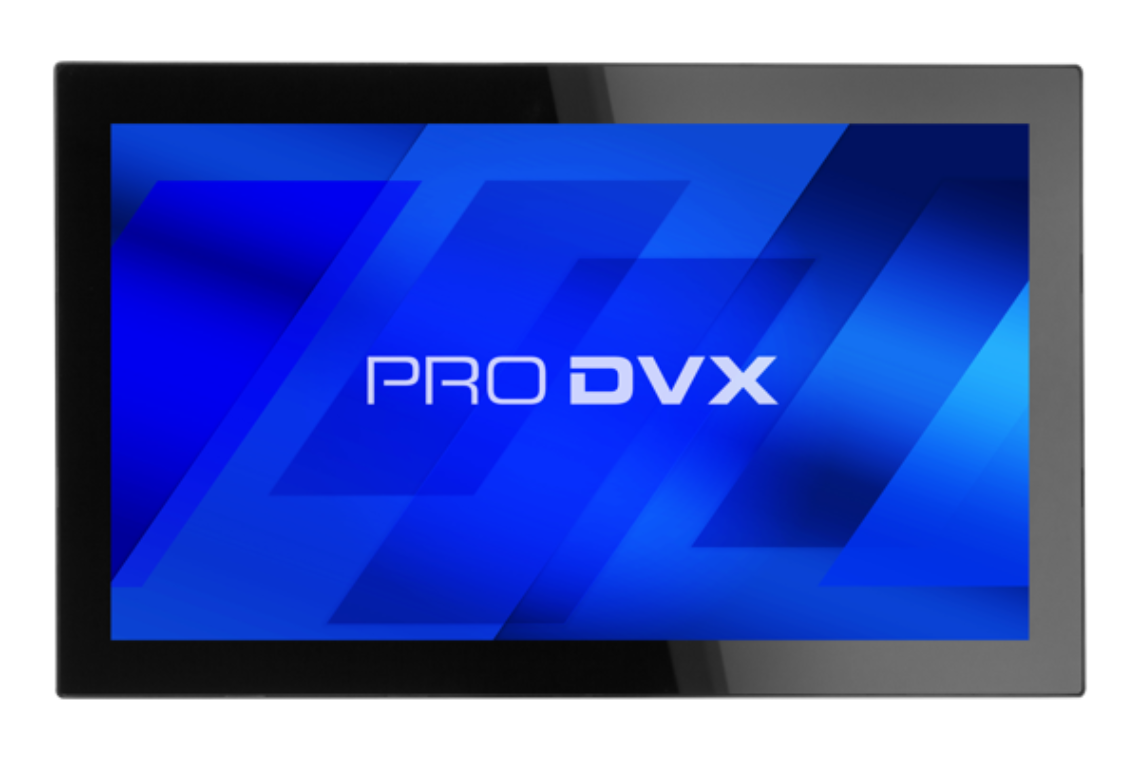

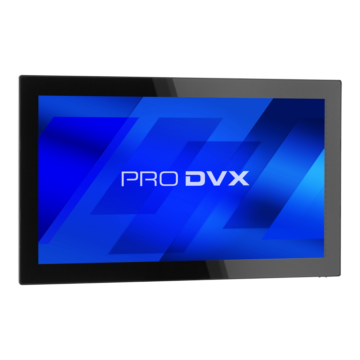

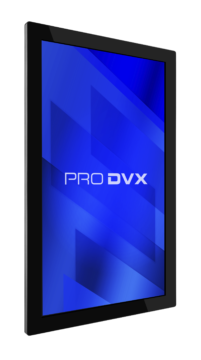

The APPC-15XP (R23-7222) is a highly versatile 15.6-inch Android Panel Panel PC designed to improve any solution. With its powerful RK3399 CPU and Android 11 operating system, this device offers high performance and seamless user experience.
Equipped with Power over Ethernet technology, the APPC-15XP (R23-7222) allows for simple and flexible installation, eliminating the need for additional power cables. The device also features Pogo pin ports, enabling easy and secure connectivity with a wide range of peripherals, such as cameras, barcode scanners or LED modules.
The APPC-15XP (R23-7222) boasts an extensive array of I/O ports, providing unparalleled flexibility for any application. Whether it's for digital signage, interactive kiosks, or point-of-sale, the APPC-15XP (R23-7222) can handle it all with ease. Upgrade your solution with the APPC-15XP R23 (R23-7222) and enjoy the benefits of a highly versatile device that offers unmatched performance, flexibility, and durability.
Panel
| Panel type | TFT LCD IPS |
| Resolution | 1920 x 1080 |
| Aspect ratio | 16:9 wide |
| Backlight | Edge-LED backlight |
| Brightness | 400 cd/m2 |
| Viewing angle | H 170° / V 170° |
| Contrast ratio | 800 : 1 |
| Touch Type | 10 TP Pcap 10ms |
| Treatment | Non-glare |
| Convenience | Landscape,Portrait,Table Mode |
| Gyro | N/A |
| Operation hours | 24/7 |
System
| Chipset | Cortex A72 2 Core+A53 4-Core |
| CPU | RK3399 (Dual Core Cortex A72 with Quad Core A53) |
| GPU | MALI T860 / 3D Graphic Engine (4K) |
| Cooling | Fanless |
| System memory | 4GB LPDDR4 SDRAM |
| Video input | N.A. |
| Video out | Yes, mini-HDMI out |
| Internal storage | 16GB eMMC |
| External storage | SD-Card Slot (door) |
| Card slot | SD |
| OS | Android 11 |
| LED Light Bar | Optional accessory |
| I/O Ports | 12 V DC-IN,mini-hdmi-out,USB-C,S/PDIF,USB 3.0,Ethernet (RJ45),2x COM (RJ45),3x Pogo pin,GPIO,4x USB 2.0,Combo Jack |
| Network LAN RJ45 | 10/100/1000 Mbps, RJ45 |
| WiFi | 802.11 a/b/g/n/ac |
| Bluetooth | 5 |
| Power over Ethernet (PoE) | IEEE 802.3at (PoE+) |
| Integrated NFC | via PoGo & USB |
| Camera | Optional accessory |
Video/Audio
| Video support | 3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS |
| Audio support | AAC,ASF,MP2,OGG,WAV,WMA |
| Photo support | JPG,JPEG,PNG,BMP,GIF |
| Microphone | Yes |
| Speakers | 2 x 3 W |
| Audio Jack Output 3.5mm | YES |
Physical
| Housing | ABS+PC (Macrolon) |
| Color | Black |
| Weight | 1300 g |
| Dimensions | 387,3 x 240,3 x 27,2 mm |
| Mounting / VESA | VESA 100 |
| Power Supply | 12 V / 2 A |
| Power Supply Included? | No |
| Power Usage | 10 ~ 20 Watt |
| Pogo Pins | 3x (bottom/left/right) |
Other
| OSD Language | Multi OSD language |
| Clock Battery (for RTC) | CR1220 - Lithium‐metal non‐rechargeable coin |
| Storage Temp | ‐10 ~ 55 degrees C |
| Working Temp | 0 ~ 40 degrees C |
| Storage/Working Humidity | 10 ~ 90% non-condensing |
| MTBF | 45,000 hours demonstrated |
| Standard Warranty | 3 years |
| Certifications | UKCA, CE, FCC, RoHS, REACH |
| SKU | 5015210 |
