SKU: 5015210

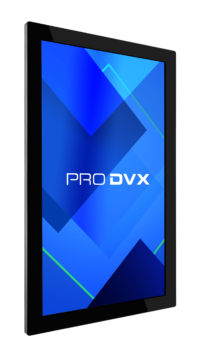

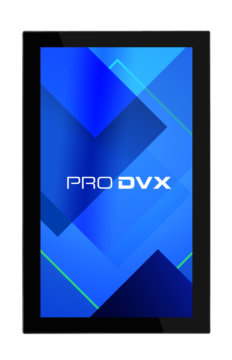

  • 15.6" Android Panel PC
  • Power over Ethernet+
  • Android 11
  • The APPC-15XP (R23-7222) is a highly versatile 15.6-inch Android Panel Panel PC designed to improve any solution. With its powerful RK3399 CPU and Android 11 operating system, this device offers high performance and seamless user experience. Equipped with Power over Ethernet technology, the APPC-15XP (R23-7222) allows for simple and flexible installation, eliminating the need for additional power cables. The device also features Pogo pin ports, enabling easy and secure connectivity with a wide range of peripherals, such as cameras, barcode scanners or LED modules. The APPC-15XP (R23-7222) boasts an extensive array of I/O ports, providing unparalleled flexibility for any application. Whether it's for digital signage, interactive kiosks, or point-of-sale, the APPC-15XP (R23-7222) can handle it all with ease. Upgrade your solution with the APPC-15XP (R23-7222) and enjoy the benefits of a highly versatile device that offers unmatched performance, flexibility, and durability.
    Panel type TFT LCD IPS
    Resolution 1920 x 1080
    Aspect ratio 16:9 wide
    Backlight Edge-LED backlight
    Brightness 400 cd/m2
    Viewing angle H170 / V170
    Contrast ratio 800 to 1
    Touch Type 10 TP Pcap 10ms
    Treatment Non-glare
    Convenience Landscape,Portrait,Table Mode
    Gyro N/A
    Operation hours 24h / 7d
    Chipset Cortex A72 2 Core+A53 4-Core
    CPU RK3399 (Dual Core Cortex A72 with Quad Core A53)
    GPU MALI T860 / 3D Graphic Engine (4K)
    Cooling Fanless
    System memory 4GB LPDDR4 SDRAM
    Video input N.A.
    Video out Yes, mini-HDMI out
    Internal storage 16GB eMMC
    External storage SD-Card Slot (door)
    Card slot SD
    OS Android 11
    LED Light Bar via PoGo
    I/O Ports 12 V DC-IN,mini-hdmi-out,USB-C,S/PDIF,USB 3.0,Ethernet (RJ45),2x COM (RJ45),3x Pogo pin,GPIO,4x USB 2.0,Combo Jack
    Network LAN RJ45 10/100/1000 Mbps, RJ45
    WiFi 802.11 a/b/g/n/ac
    Bluetooth 5
    Power over Ethernet (PoE) IEEE 802.3at (PoE+)
    Integrated NFC via PoGo & USB
    Camera via PoGo & USB
    Audio support AAC,ASF,MP2,OGG,WAV,WMA
    Photo support JPG,JPEG,PNG,BMP,GIF
    Microphone YES
    Speakers 2 x 3 W
    Audio Jack Output 3.5mm YES
    Housing ABS+PC (Macrolon)
    Color Black
    Weight 1300 g
    Dimensions 387,3 x 240,3 x 27,2 mm
    Mounting / VESA VESA 100
    Power Supply 12 V / 2 A
    Power Supply Included? No
    Power Usage 10 ~ 23 Watt
    Pogo Pins 3x (bottom/left/right)
    OSD Language Multi OSD language
    Clock Battery (for RTC) CR1220 Lithium metal, non rechargeable
    Storage Temp -10~55 degrees C
    Working Temp 0 ~ 40 degrees C
    Storage/Working Humidity 10 ~ 90% non-condensing
    MTBF 45,000 hours demonstrated
    Standard Warranty 3 years
    Certifications UKCA, CE, FCC, RoHS, REACH
    SKU 5015210
