Pogo NFC Module

SKU: 9010100
  • NFC module
  • Pogo pin connection

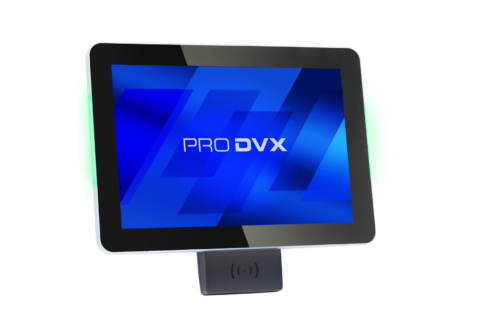

  • The ProDVX Pogo NFC Module is available for our products with pogo pin connectors running Android 8 or above, or Windows 10. The module can easily be attached using the screws, and enhances the capabilities of your device. This allows your ProDVX device to be used for access control, wireless payments or any other solution that requires the use of NFC technology.
    Color Black
    Weight 28 g
    Dimensions 70 x 55 x 24 mm
    Mounting / VESA Pogo Pins
    Working Temp -10 ~ 60 degrees C
    Operating Frequency 13.56 MHz
    Operating Distance Up to 30mm (depends on tag type)
    Protocol Standard ISO 14443A/B,ISO 15693,Mifare,Felica(Card UID)
    Support Tags ISO 14443A-NXP Ultralight,ISO 14443A-NXP NTAG 213/215/216,ISO 14443A-NXP MIFARE Classic 1K,ISO 15693-NXP ICODE SLI/SLIX,ISO 14443A-NXP MIFARE DESFire,ISO 14443A-NXP MIFARE Plus
    SKU 9010100
