APPC-32X

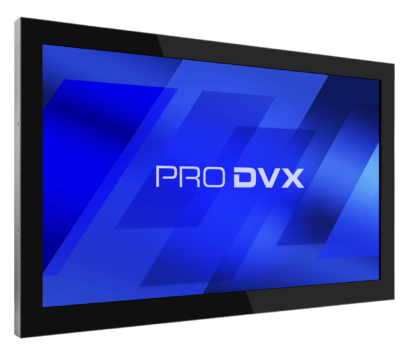

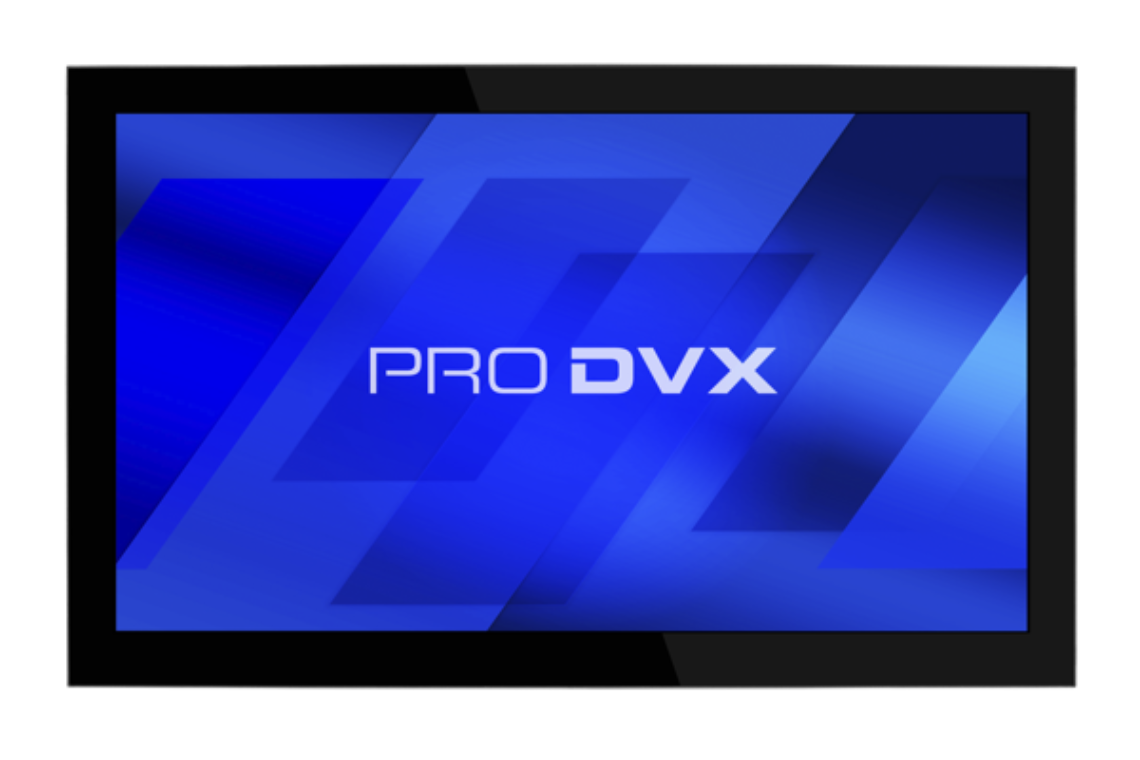

The ProDVX APPC-32X is an Android Panel PC with a 31.5” Touch Display. The ProDVX APPC-32X comes with Android 8 (or optional Linux Ubuntu). This device can be connected through RJ45 LAN, WiFi, Bluetooth and contains a standard option to schedule reboot or shut down. This Android SOC Touch Display has a projected capacitive touch display and metal housing. Optional accessories are a Barcode Scanner (USB), NFC Module (USB) or VESA mounting brackets.
Features:
- Cortex A17, Quad Core, RK328
- Pogo Pins for optional accessories
- Robust eMMC Flash Memory
- 31.5" high viewing angle IPS panel
- RJ45 LAN, WiFi, Bluetooth
- USB Connector
- Micro USB connector
- Open Source Android
- VESA Mountable
- NFC Module (USB) available
Commercial grade build suitable for 24/7 usage.
Specifications
Panel
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 wide |
| Backlight | LED Side light type |
| Brightness | 400 cd/m2 |
| Viewing Angle | H 178° / V 178° |
| Contrast Ratio | 1200 : 1 |
| Touch Type | 10 point touch projected capacitive |
System
| CPU | Cortex A17, Quad Core, RK3288 |
| GPU | MALI T764 / 3D Graphic Engine (4K) |
| System Memory | 2 GB DDR3 SDRAM |
| Internal Storage | 16 GB eMMC Flash |
| External Storage | SD-Card Slot (hidden) |
| OS | Android 8 (Optional: Linux Ubuntu) |
| LED Light Bar | N/A |

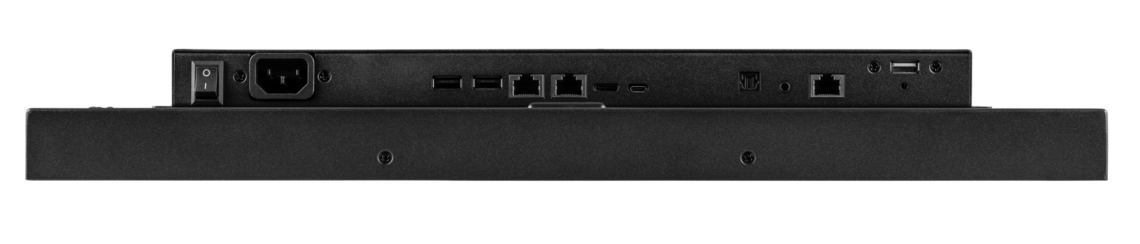

| I/O Ports | Micro-USB / USB / GPIO Port / 3.5 mm audio-out / RJ45 / 12V DC-IN |
| Network LAN RJ45 | 10/100/1000 Mbps LAN |
| WiFi / Bluetooth | 802.11 a/b/g/n / BT 4.2 |
| Power over Ethernet (PoE) | N/A |
| Camera | 2 M/P front camera (OPTIONAL) |
Video/Audio
| Video Support | MKV, TS, FLV, AVI, VOB, MPG, DAT, ASF, RM, MOV, 3GP, MP4, WMV |
| Audio Support | MP2, WMA, WAV, AAC, OGG, ASF |
| Photo Support | JPG, JPEG, PNG, BMP, GIF |
| Microphone | OPTIONAL |
| Speakers | 2 x 3 W |
| Audio Jack Output 3.5mm | YES |
Physical
| Housing | Metal |
| Color | Black |
| Weight | 10540 g |
| Dimensions | 769 x 471 x 49 mm |

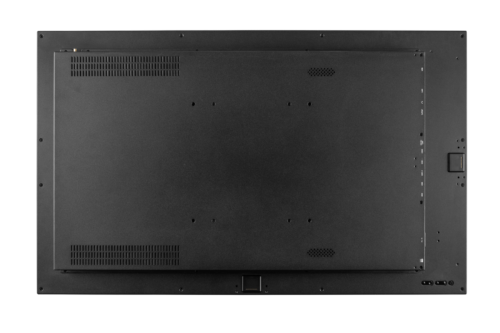

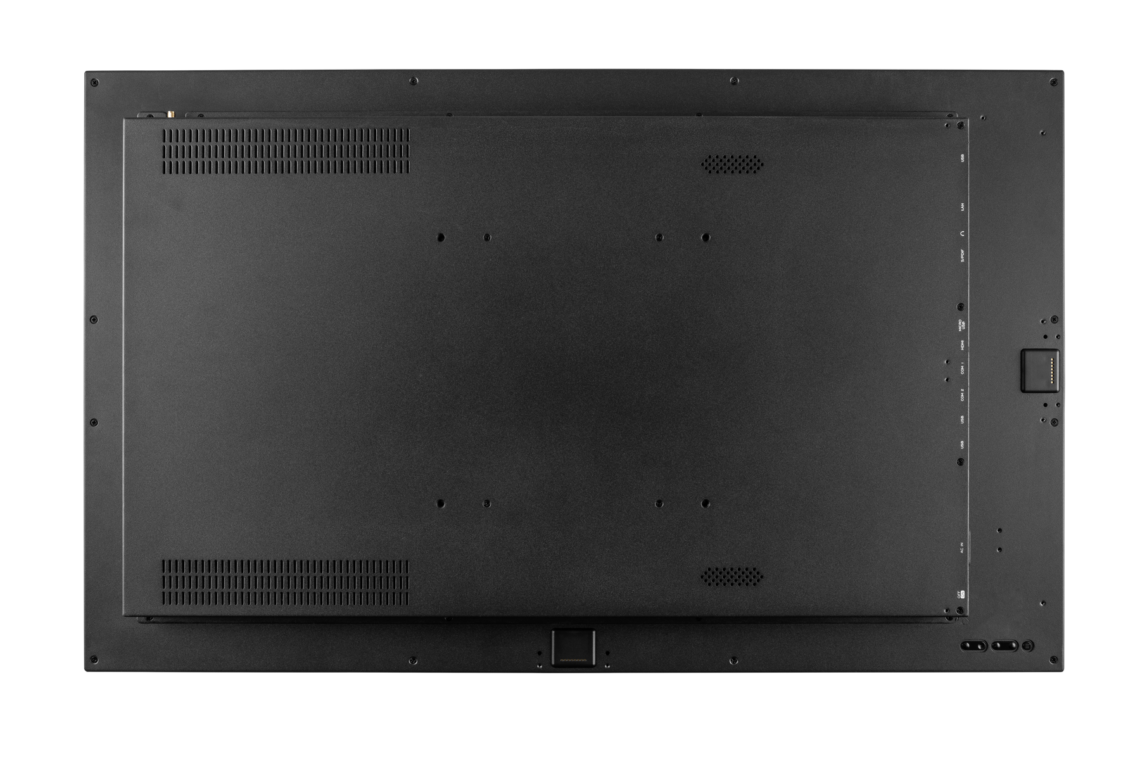

| Mounting / VESA | VESA 200 |
| Power Supply | AC 110 V - 240 V |
| Power Usage | 10 ~ 20 Watt |
Other
| LED Light Status Bar | N/A |
| Clock Battery (for RTC) | Lithium ion non rechargeable coin |
| Storage Temp | -15 ~ 65 degrees C |
| Working Temp | -10 ~ 50 degrees C |
| Storage/Working Humidity | 10 ~ 90% non-condensing |
| MTBF | 50,000 hours demonstrated |
| Standard Warranty | 2 years |
| Certifications | FCC, CE, & RoHS |
