SKU: 5032200
  • 31.5" Android Panel PC
  • Android 11

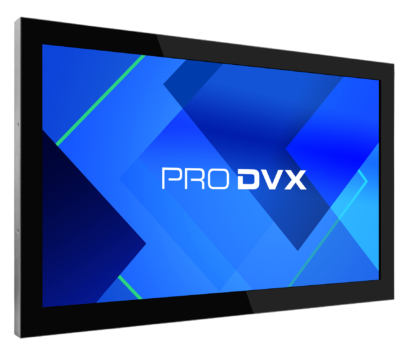

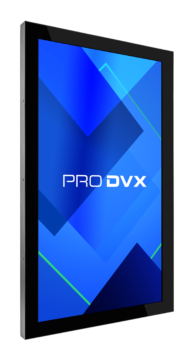

  • The APPC-32X (R23-7001), equipped with an advanced Rockchip dual-processor and Mali-T860 GPU, is designed to elevate performance to new heights. With 4GB of RAM and 16GB of storage, multitasking is a breeze. Operating on Android 11, it offers one of the most flexible and secure operating systems in the market. The APPC-32X (R23-7001) features a maximum brightness of 350 cd/m2. Paired with a 10-point touch-enabled panel treated for non-glare, this Android Panel PC ensures an optimal user experience. Designed for interactive kiosks, the APPC-32X (R23-7001) comes with a VESA mounting frame for easy installation. Its array of I/O ports ensures compatibility with a wide range of peripheral devices, making it a versatile solution for your needs.
    Panel type TFT LCD IPS
    Resolution 1920 x 1080
    Aspect ratio 16:9 wide
    Backlight Edge-LED backlight
    Brightness 350 cd/m2
    Viewing angle H178 / V178
    Contrast ratio 3000 to 1
    Touch Type 10 TP Pcap 20ms
    Treatment Non-glare
    Convenience Landscape,Portrait,Table Mode
    Operation hours 24h / 7d
    CPU RK3399 (Dual Core Cortex A72 with Quad Core A53)
    GPU MALI T860MP4 / 3D Graphic Engine (4K)
    Cooling Fanless
    System memory 4GB LPDDR4 SDRAM
    Video input N.A.
    Video out Yes, mini-HDMI out
    Video resolution 1920 x 1080
    Internal storage 16 GB eMMC Flash
    External storage SD-Card Slot (door)
    OS Android 11
    LED Light Bar via PoGo
    I/O Ports mini HDMI out,2x USB 2.0,GPIO,USB-C,USB 3.0,3x Pogo pin,240 V DC-IN,2x RS232,3.5 mm jack in/out,Ethernet (RJ45)
    Network LAN RJ45 10/100/1000 Mbps LAN
    WiFi 802.11 a/b/g/n
    Bluetooth 5
    Power over Ethernet (PoE) N.A.
    Integrated NFC via PoGo & USB
    Camera via PoGo & USB
    Audio support AAC,ASF,MP2,OGG,WAV,WMA
    Photo support JPG,JPEG,PNG,BMP,GIF
    Microphone via USB & 3.5mm jack
    Speakers 2 x 3 W
    Audio Jack Output 3.5mm YES
    Housing Metal
    Color Black
    Weight 13750 g

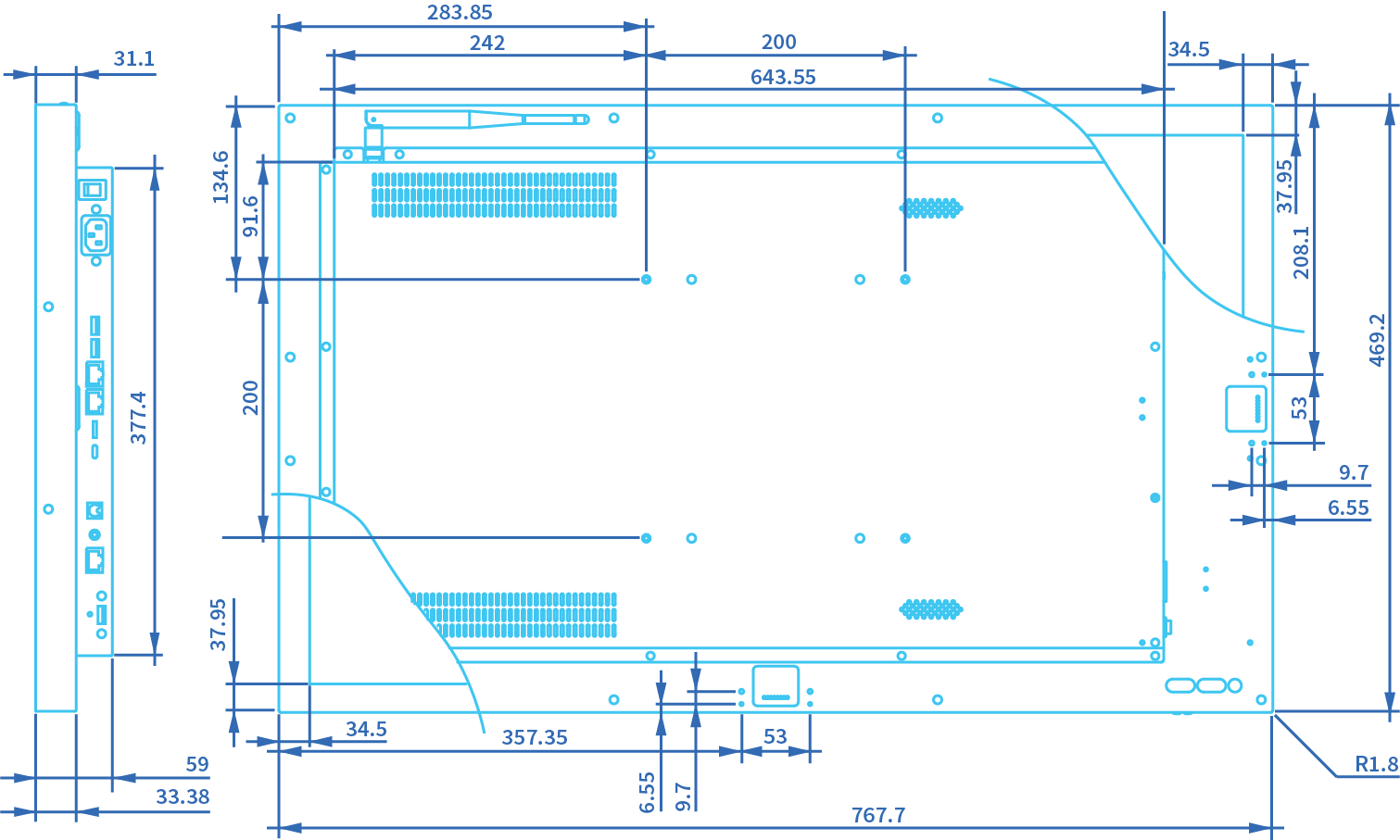

    Dimensions 767,7 x 469,2 x 59 mm
    Mounting / VESA VESA 200
    Power Supply AC 110 V - 240 V
    Power Supply Included? Yes
    Power Usage 50 ~ 75 Watt
    Pogo Pins 2x (bottom/left)
    OSD Language Multi OSD language
    Clock Battery (for RTC) CR1220 Lithium metal, non rechargeable
    Storage Temp -10~55 degrees C
    Working Temp 0 ~ 40 degrees C
    Storage/Working Humidity 10 ~ 90 % non-condensing
    MTBF 50,000 hours demonstrated
    Standard Warranty 3 years
    Certifications UKCA, CE, FCC, RoHS, REACH
    SKU 5032200
