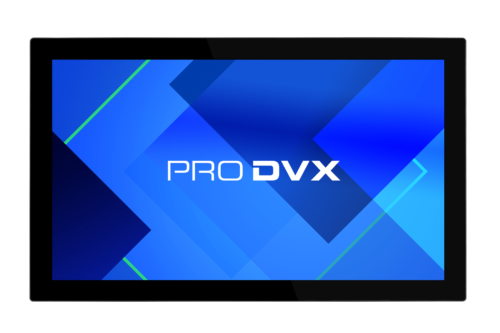

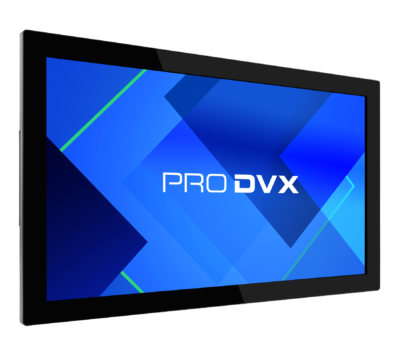

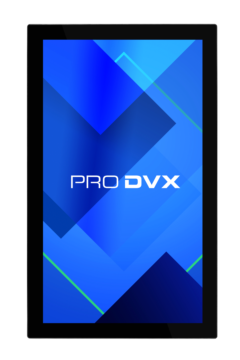

APPC-22XP-R23

  • 21.5" Android Panel PC
  • Android 11
  • Power over Ethernet++
  • The APPC-22XP-R23 is a 22-inch Android-based Panel PC, ready to improve your digital communication with its cutting-edge features. Featuring a high-performance Rockchip dual-processor and Mali-T860 GPU, it delivers a seamless user experience. Enhanced RAM and storage ensure multitasking capability, while Android 11 provides the APPC-22XP-R23 with a soft ware agnostic operating system. In addition, the APPC-22XP-R23 is easily installable thanks to its VESA mounting frame and PoE++ capability, eliminating the requirement for extra power cables. Its durable touch panel supports 10-point touch functionality, up to 250 cd/m2 and is treated for non-glare to provide the most optimal user experience. Moreover, the APPC-22XP-R23 showcases a broad range of I/O ports, granting unmatched flexibility for various applications. Whether utilized for interactive kiosks, self-service, or interactive wayfinding, the APPC-22XP-R23 effortlessly handles any solution.
    Panel
    Panel type TFT LCD IPS
    Resolution 1920 x 1080
    Aspect ratio 16:9 wide
    Backlight Edge-LED backlight
    Brightness 250 cd/m2
    Viewing angle H 178° / V 178°
    Contrast ratio 3000 : 1
    Touch Type 10 point touch projected capacitive
    Treatment Non-glare

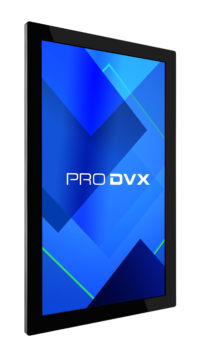

    Convenience Landscape,Portrait,Table Mode
    Operation hours 24/7
    System
    CPU RK3399 (Dual Core Cortex A72 with Quad Core A53)
    GPU MALI T860MP4 / 3D Graphic Engine (4K)
    Cooling Fanless
    System memory 4GB LPDDR4 SDRAM
    Video out mini-hdmi
    Internal storage 16GB eMMC
    External storage SD-Card Slot (door)
    Card slot SD
    OS Android 11
    LED Light Bar Optional accessory

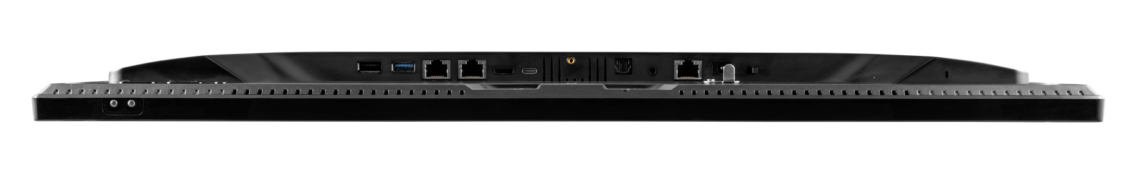

    I/O Ports 12 V DC-IN,3x Pogo pin,2x COM (RJ45),2x USB 2.0,Ethernet (RJ45),USB-C,USB 3.0,S/PDIF,mini-hdmi-out,3.5 mm jack in/out
    Network LAN RJ45 10/100/1000 Mbps LAN
    WiFi 802.11 a/b/g/n/ac
    Bluetooth BT 5.2
    Power over Ethernet (PoE) IEEE 802.3bt Type 3 (PoE++)
    Integrated NFC Optional accessory
    Camera Optional accessory
    Video/Audio
    Video support 3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS
    Audio support AAC,ASF,MP2,OGG,WAV,WMA
    Photo support JPG,JPEG,PNG,BMP,GIF
    Microphone YES
    Speakers 2 x 3 W
    Audio Jack Output 3.5mm YES
    Physical
    Housing ABS+PC (Macrolon)
    Color Black
    Weight 4200 g
    Dimensions 530,5 x 321,22 x 35 mm

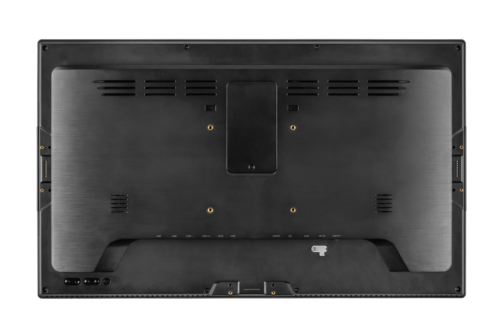

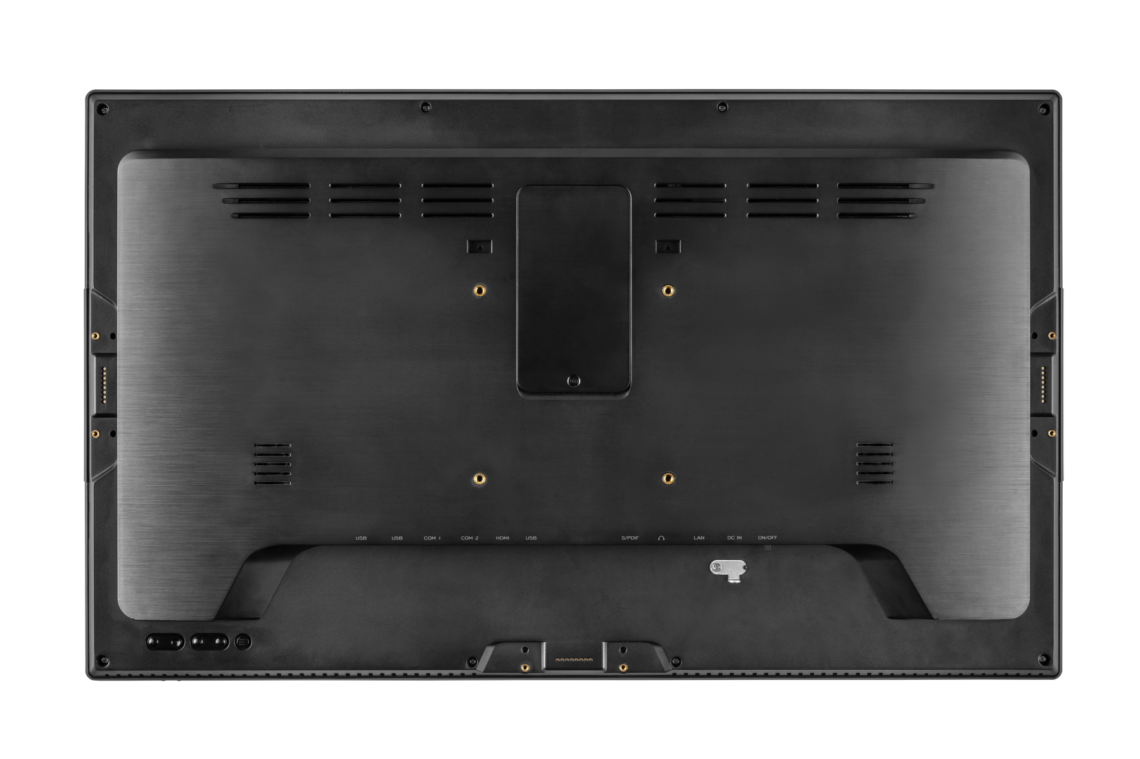

    Mounting / VESA VESA 100
    Power Supply 12 V / 5 A
    Power Supply Included? Yes
    Power Usage 30 ~ 45 Watt
    Pogo Pins YES (bottom/left/right)
    Other
    OSD Language Multi OSD language
    Clock Battery (for RTC) CR1220 - Lithium‐metal non‐rechargeable coin
    Storage Temp ‐10 ~ 55 degrees C
    Working Temp 0 ~ 40 degrees C
    Storage/Working Humidity 10 ~ 90% non-condensing
    MTBF 50,000 hours demonstrated
    Standard Warranty 3 years
    Certifications UKCA, CE, FCC, RoHS, REACH
