APPC-15XP (RK3288)
This is a legacy product and is no longer available. Contact us to help you find a replacement for this product.

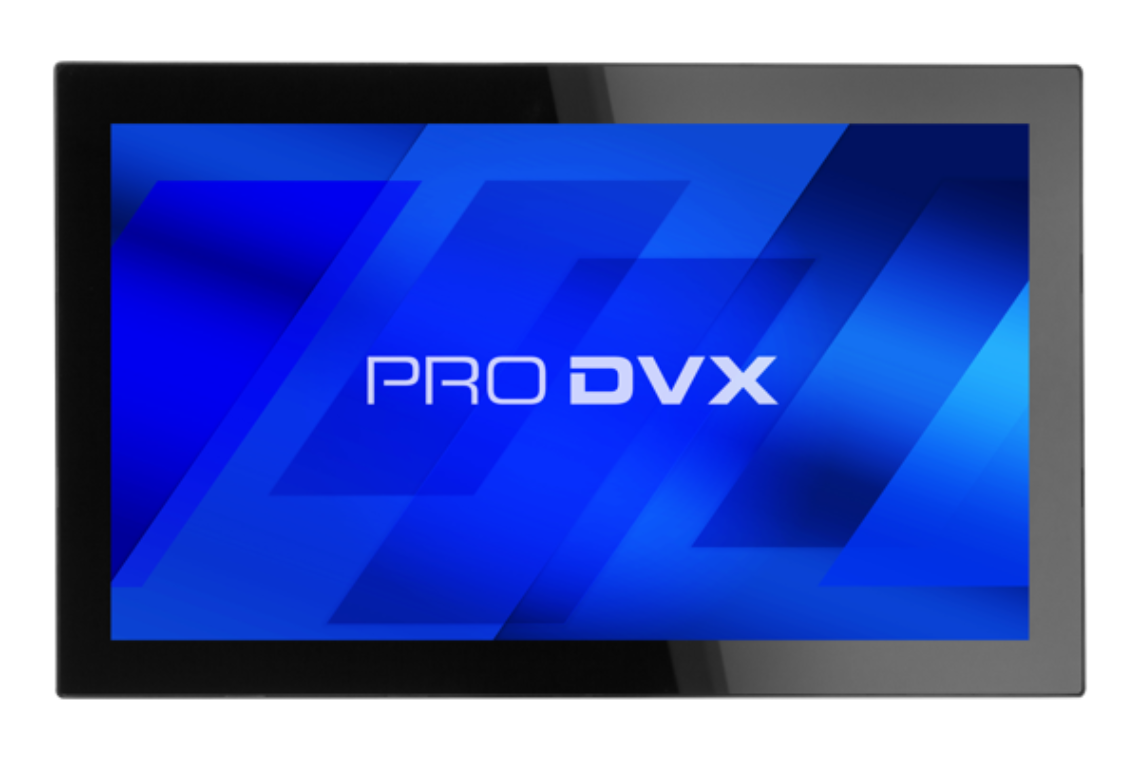

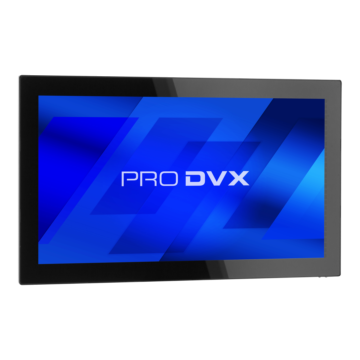

The ProDVX APPC-15XP is an Android Panel PC with a 15.6” Touch Display and Power over Ethernet (PoE). The ProDVX APPC-15XP comes with Android 9 (or optional Linux). This device can be connected through RJ45 LAN, WiFi, Bluetooth and contains a standard option to schedule reboot or shut down. This Android SOC Touch Display has a projected capacitive touch display and plastic housing. The APPC-15XP features a Pogo pin connection for optional accessories (Barcode Scanner, NFC Module, Camera Module) and VESA 100, for mounting brackets.
Panel
| Panel type | TFT LCD IPS |
| Resolution | 1920 x 1080 |
| Aspect ratio | 16:9 wide |
| Backlight | Edge-LED backlight |
| Brightness | 300 cd/m2 |
| Viewing angle | H 170° / V 170° |
| Contrast ratio | 800 : 1 |
| Touch Type | 10 point touch projected capacitive |

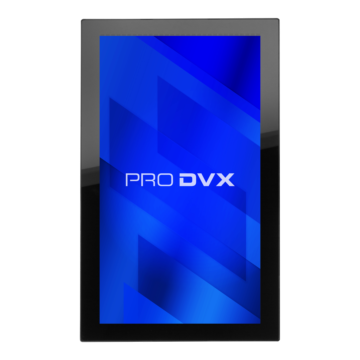

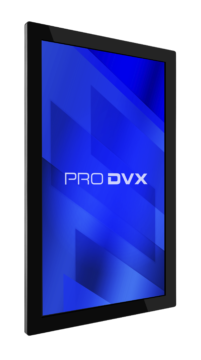

| Convenience | Landscape,Portrait,Table Mode |
| Gyro | N/A |
| Operation hours | 24/7 |
System
| CPU | Cortex A17, Quad Core, RK3288 |
| GPU | MALI T764 / 3D Graphic Engine (4K) |
| Cooling | Fanless |
| System memory | 2 GB DDR3 SDRAM |
| Video out | mini-hdmi |
| Internal storage | 16 GB eMMC Flash |
| External storage | SD-Card Slot (door) |
| Card slot | SD |
| OS | Android 9 (optional Linux) |
| LED Light Bar | Optional accessory |
| I/O Ports | 12 V DC-IN,2x COM (RJ45),3.5 mm audio-out,Ethernet (RJ45),Micro-USB,S/PDIF,mini-hdmi-out,2x USB 2.0,GPIO |
| Network LAN RJ45 | 10/100/1000 Mbps LAN |
| WiFi | 802.11 a/b/g/n/ac |
| Bluetooth | BT 4.2 |
| Power over Ethernet (PoE) | IEEE 802.3at (PoE+) |
| Integrated NFC | Optional accessory |
| Camera | Optional accessory |
Video/Audio
| Video support | 3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS |
| Audio support | AAC,ASF,MP2,OGG,WAV,WMA |
| Photo support | JPG,JPEG,PNG,BMP,GIF |
| Microphone | YES |
| Speakers | 2 x 3 W |
| Audio Jack Output 3.5mm | YES |
Physical
| Housing | Plastic |
| Color | Black |
| Weight | 1300 g |
| Dimensions | 388 x 241 x 28 mm |
| Mounting / VESA | VESA 100 |
| Power Supply | 12 V / 2 A (EU, UK, US) |
| Power Supply Included? | No |
| Power Usage | 10 ~ 20 Watt |
| Pogo Pins | YES (bottom/left/right) |
Other
| OSD Language | Multi OSD language |
| Clock Battery (for RTC) | CR1220 - Lithium‐metal non‐rechargeable coin |
| Storage Temp | ‐10 ~ 55 degrees C |
| Working Temp | 0 ~ 40 degrees C |
| Storage/Working Humidity | 10 ~ 90 % non-condensing |
| MTBF | 50,000 hours demonstrated |
| Standard Warranty | 3 years |
| Certifications | FCC, CE, RoHS |
| SKU | 5015100 |
