APPC-10XPL

X-Series | Premium Integrated Android SOC Touch Displays

APPC-10XPL

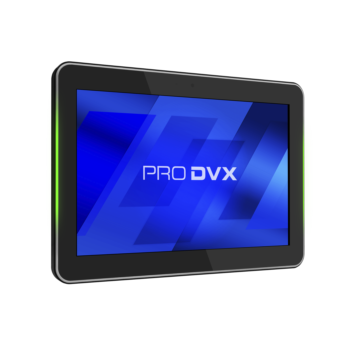

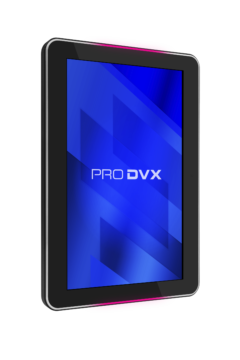

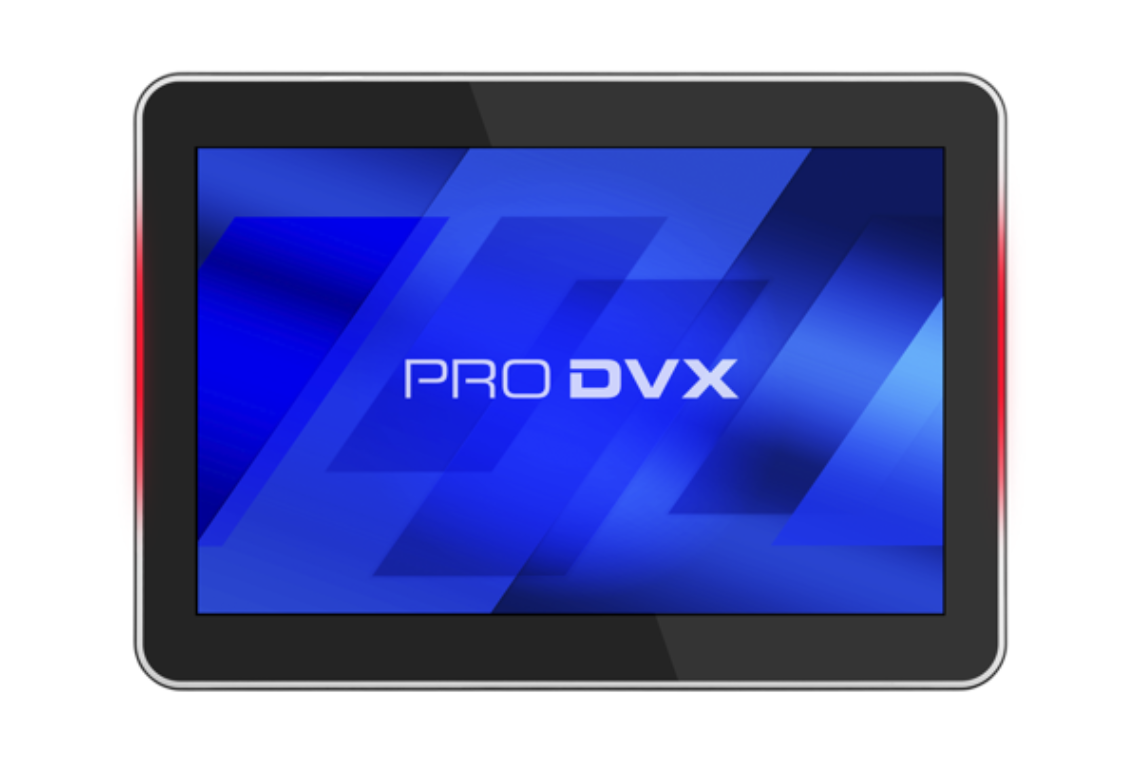

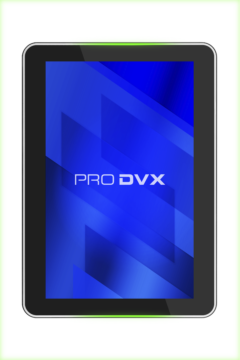

The ProDVX APPC-10XPL is an Android Panel PC with a 10.1” Touch Display, Power over Ethernet (PoE) and 2 sided LED Bar (RGB) to emphasize the displayed content such as room availability. The ProDVX APPC-10XPL comes with Android 8 (or optional Linux Ubuntu). This device can be connected through RJ45 LAN, WiFi, Bluetooth and contains a standard option to schedule reboot or shut down. This Android SOC Touch Display has a projected capacitive touch display and plastic housing. Optional accessories for the Pogo Pins are a 1D/2D Barcode Scanner, NFC Module, Motion Sensor or VESA mounting brackets.

Features:

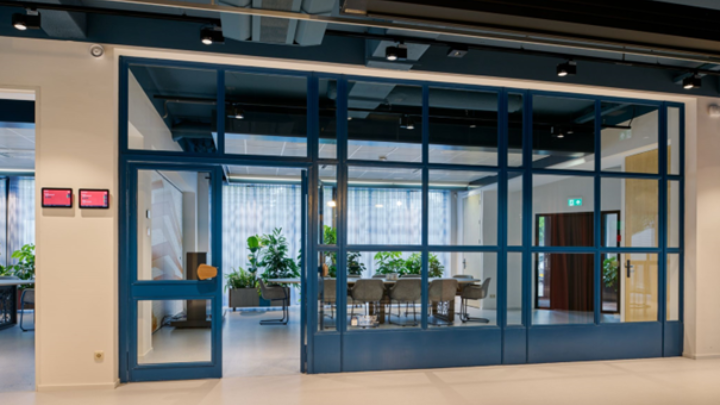

  • Side LED Status Light Bar for Room Signage and Access Control
  • Power over Ethernet
  • Cortex A17, Quad Core, RK3288
  • Robust eMMC Flash Memory
  • 10.1" high viewing angle IPS panel
  • RJ45 LAN, WiFi, Bluetooth
  • USB Connector
  • Micro USB connector
  • Open Source Android
  • Pogo Pins for optional accessories
  • Schedule: reboot / shut down / on off
  • VESA Mountable
  • BT version 4.2
  • Commercial grade build suitable for 24/7 usage
  • Available in White (optional)

Optional:

  • 1D/2D Barcode Scanner
  • NFC Module
  • Mounting Brackets

Specifications

Panel

Resolution 1280 x 800
Aspect Ratio 16:10 wide
Backlight LED Side light type
Brightness 500 cd/m2
Viewing Angle H 160° / V 160°
Contrast Ratio 800 : 1
Touch Type 5 point touch projected capacitive

System

CPU Cortex A17, Quad Core, RK3288
GPU MALI T764 / 3D Graphic Engine (4K)
System Memory 2 GB DDR3 SDRAM
Internal Storage 16 GB eMMC Flash
External Storage SD-Card Slot (hidden)
OS Android 8 (Optional: Linux Ubuntu)
LED Light Bar 2 side LED bar

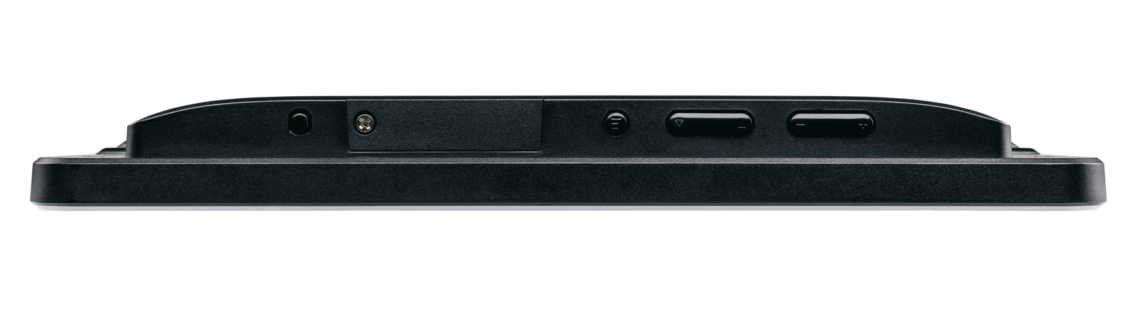

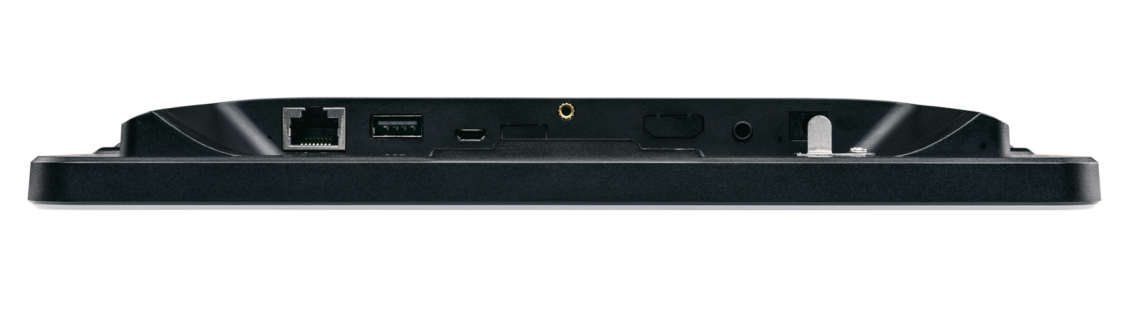

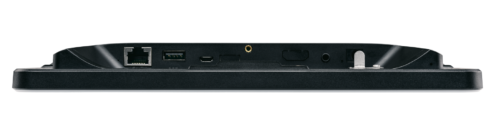

I/O Ports Micro-USB / USB / HDMI / GPIO Port / 3.5 mm audio-out / RJ45 / POGO-Connector / 12 V DC-IN
Network LAN RJ45 10/100/1000 Mbps LAN
WiFi / Bluetooth 802.11 a/b/g/n/ac / BT 4.2
Power over Ethernet (PoE) IEE 802.3 af/at
Camera 2 M/P front camera (optional)

Video/Audio

Video Support MKV, TS, FLV, AVI, VOB, MPG, DAT, ASF, RM, MOV, 3GP, MP4, WMV
Audio Support MP2, WMA, WAV, AAC, OGG, ASF
Photo Support JPG, JPEG, PNG, BMP, GIF
Microphone Yes
Speakers 2 x 2 W
Audio Jack Output 3.5mm Yes

Physical

Housing Plastic
Color Black (optional in White)
Weight 650 g
Dimensions 255 x 181 x 25 mm
Mounting / VESA VESA 75
Power Supply 12V / 2A (EU, UK, US)
Power Usage 10 ~ 20 Watt

Other

LED Light Status Bar YES
Clock Battery (for RTC) Lithium ion non rechargeable coin
Storage Temp -15 ~ 65 degrees C
Working Temp 0 ~ 40 degrees C
Storage/Working Humidity 10 ~ 90% non-condensing
MTBF 50,000 hours demonstrated
Standard Warranty 2 years
Certifications FCC, CE, & RoHS
Optional Vesa Glass Mount GM-75
Optional Wall Mount WM-25
