IPPC-10SLB

SKU: 6010200
  • 10" Intel Panel PC
  • Windows 10 IoT Enterprise LTSC
  • PoE+, Surround LED Bar
  • This is a legacy product and is no longer available.

    Please find the replacement for this product here.

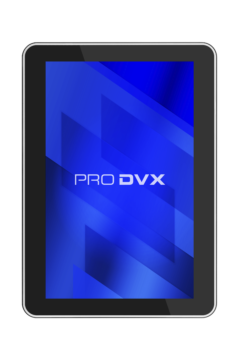

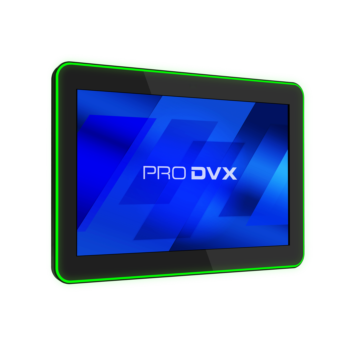

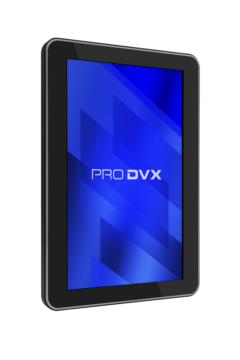

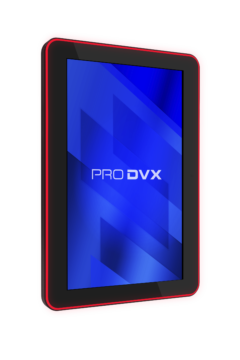

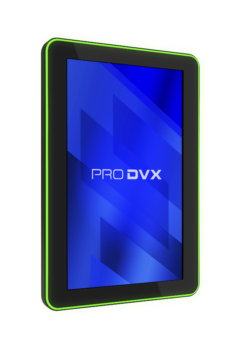

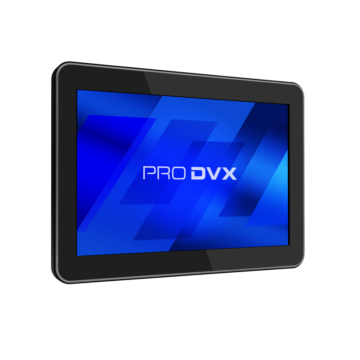

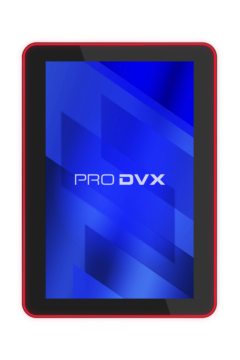

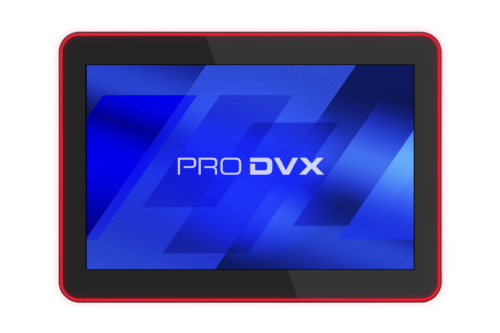

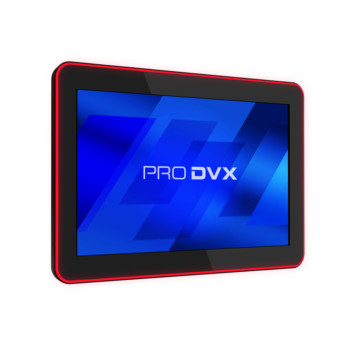

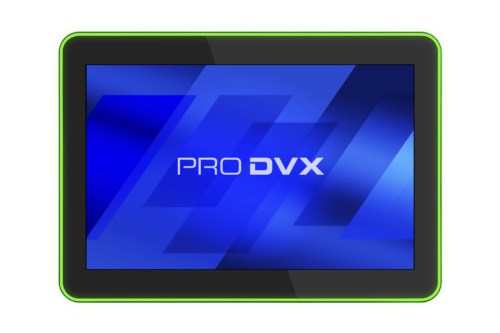

    The ProDVX IPPC-10SLB is a Commercial Grade 10.1 inch Intel Panel PC with Power over Ethernet (PoE) and Surround LED Status Light Bar (Full RGB). With its Surround LED Bar it is the ideal solution for Room Booking, Room Signage and Access Control. This device can be connected through RJ45 LAN, WiFi and Bluetooth. The IPPC-10SLB Intel Panel PC standard comes with an Intel Atom X5-Z8350 Quad Core CPU and has a projected capacitive touch display and plastic housing. Optional accessories are a 1D/2D Barcode Scanner, Camera and NFC Module. This product requires an additional Windows 10 IoT Enterprise LTSC license.
    Panel
    Panel type TFT LCD IPS
    Resolution 1280 x 800
    Aspect ratio 16:10 wide
    Backlight Edge-LED backlight
    Brightness 500 cd/m2
    Viewing angle H 160° / V 160°
    Contrast ratio 800 : 1
    Touch Type 10 point touch projected capacitive
    Convenience Landscape,Portrait,Table Mode
    Operation hours 24/7
    System
    CPU Intel Atom x5-Z8350 Quad Core
    GPU Intel HD Graphics (2GB, FullHD)
    Cooling Fanless
    System memory 4 GB DDR3L-RS 1600
    Internal storage 64 GB eMMC
    External storage SD-Card Slot (door)
    Storage socket 2 SD-Card Slot (door)
    Card slot SD
    OS Windows 10 (optional Linux)
    Additional Windows license required Yes, at a cost
    LED Light Bar Surround LED Bar (full RGB)
    I/O Ports 12 V DC-IN,3.5 mm audio-out,Micro-USB,RJ45,HDMI out,USB 2.0,GPIO
    Network LAN RJ45 10/100/1000 Mbps LAN
    WiFi 802.11 a/c wireless module
    Bluetooth BT 4.2
    Power over Ethernet (PoE) IEEE 802.3at (PoE+)
    Integrated NFC Optional accessory
    Camera Optional accessory
    Video/Audio
    Microphone YES
    Speakers 2 x 2 W
    Audio Jack Output 3.5mm YES
    Physical
    Housing Plastic
    Color Black
    Weight 650 g
    Dimensions 255,3 x 181 x 26,7 mm
    Mounting / VESA VESA 75
    Power Supply 12 V / 2 A (EU, UK, US)
    Power Supply Included? No
    Power Usage 10 ~ 20 Watt
    Pogo Pins YES (bottom/left/right)
    Other
    OSD Language Multi OSD language
    Clock Battery (for RTC) CR1220 - Lithium‐metal non‐rechargeable coin
    Storage Temp ‐10 ~ 55 degrees C
    Working Temp 0 ~ 40 degrees C
    Storage/Working Humidity 10 ~ 90 % non-condensing
    MTBF 45,000 hours demonstrated
    Standard Warranty 3 years
    Certifications FCC, CE, RoHS
    SKU 6010200

    Video

    Frequently bought together

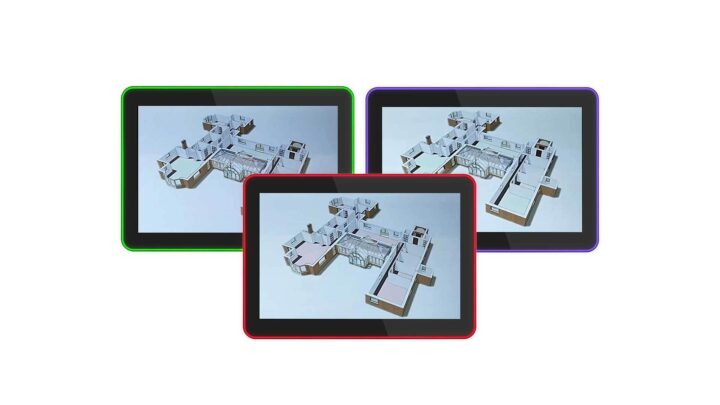

    Our partner(s) used this product for:
