IPPC-15
This is a legacy product and is no longer available. Contact us to help you find a replacement for this product.

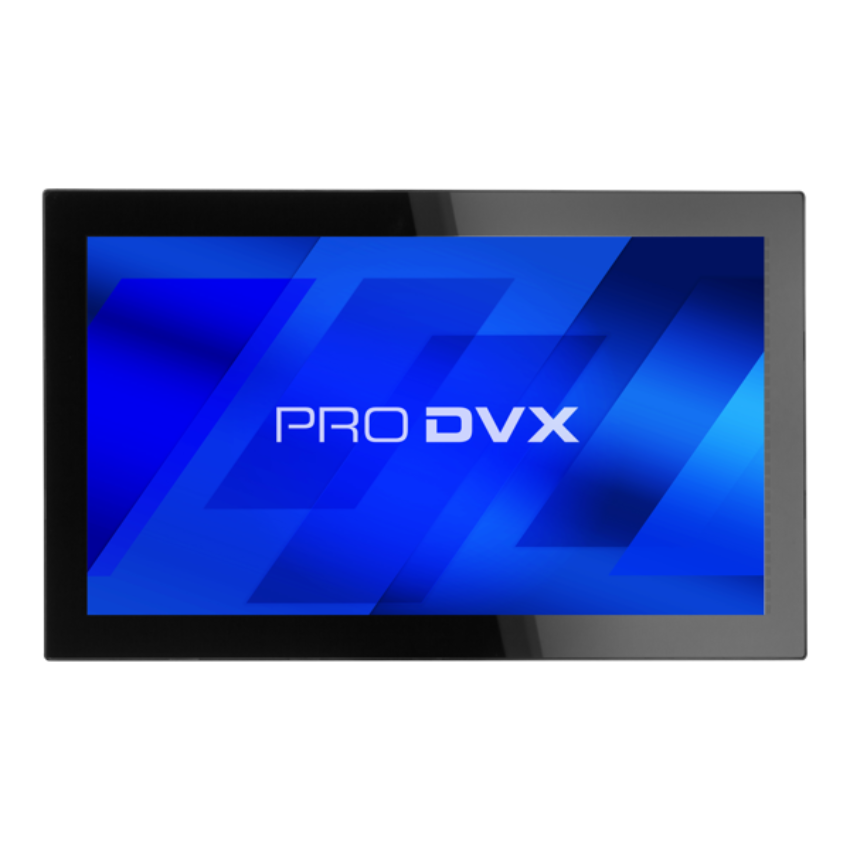

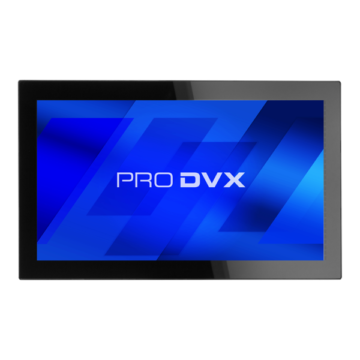

The ProDVX IPPC-15 is an Intel Panel PC with a 15.6" Touch Display. The ProDVX IPPC-15 standard comes with an Intel Braswell N3160 Quad Core. This device can be connected through RJ45 LAN, WiFi, Bluetooth and is fanless due to passive cooling. This Intel SOC Touch Display has a projected capacitive touch display in plastic housing. Optional accessories for the Pogo Pins are a 1D/2D Barcode Scanner, NFC Module, Motion Sensor or VESA brackets.
Panel
| Panel type | TFT LCD IPS |
| Resolution | 1920 x 1080 |
| Aspect ratio | 16:9 wide |
| Backlight | Edge-LED backlight |
| Brightness | 300 cd/m2 |
| Viewing angle | H 170° / V 170° |
| Contrast ratio | 800 : 1 |
| Touch Type | 10 point touch projected capacitive |
| Convenience | Landscape,Portrait,Table Mode |
| Gyro | N/A |
| Operation hours | 24/7 |
System
| CPU | Intel Braswell N3160 Quad Core |
| GPU | Intel HD Graphics |
| Cooling | Fanless |
| System memory | 4 GB DDR3L 1600 |
| Video out | mini-hdmi |
| Internal storage | 64 GB M.2 SSD |
| External storage | SD-Card Slot (door) |
| Storage socket 2 | SD-Card Slot (door) |
| Card slot | SD |
| OS | Windows 10 (optional Linux) |
| LED Light Bar | N/A |
| I/O Ports | 12 V DC-IN,2x COM (RJ45),2x USB 3.0,3.5 mm audio-out,Ethernet (RJ45),Micro-USB,S/PDIF,USB 2.0,mini-hdmi-out,GPIO |
| Network LAN RJ45 | 10/100/1000 Mbps LAN |
| WiFi | 802.11 b/g/n SiP wireless module |
| Bluetooth | BT 4.0 |
| Power over Ethernet (PoE) | N/A |
| Integrated NFC | N/A |
| Camera | N/A |
Video/Audio
| Speakers | 2 x 2 W |
| Audio Jack Output 3.5mm | YES |
Physical
| Housing | Plastic |
| Color | Black |
| Weight | 1400 g |
| Dimensions | 388 x 242 x 28 mm |
| Mounting / VESA | VESA 100 |
| Power Supply | 12 V / 5 A |
| Power Supply Included? | Yes |
| Power Usage | 11 ~ 26 Watt |
| Pogo Pins | YES (bottom/left/right) |
Other
| OSD Language | Multi OSD language |
| Clock Battery (for RTC) | CR2032 - Lithium‐metal non‐rechargeable coin |
| Storage Temp | ‐10 ~ 55 degrees C |
| Working Temp | 0 ~ 40 degrees C |
| Storage/Working Humidity | 10 ~ 90 % non-condensing |
| MTBF | 45,000 hours demonstrated |
| Standard Warranty | 2 years |
| Certifications | FCC, CE, RoHS |
| SKU | 50070015.151 |
