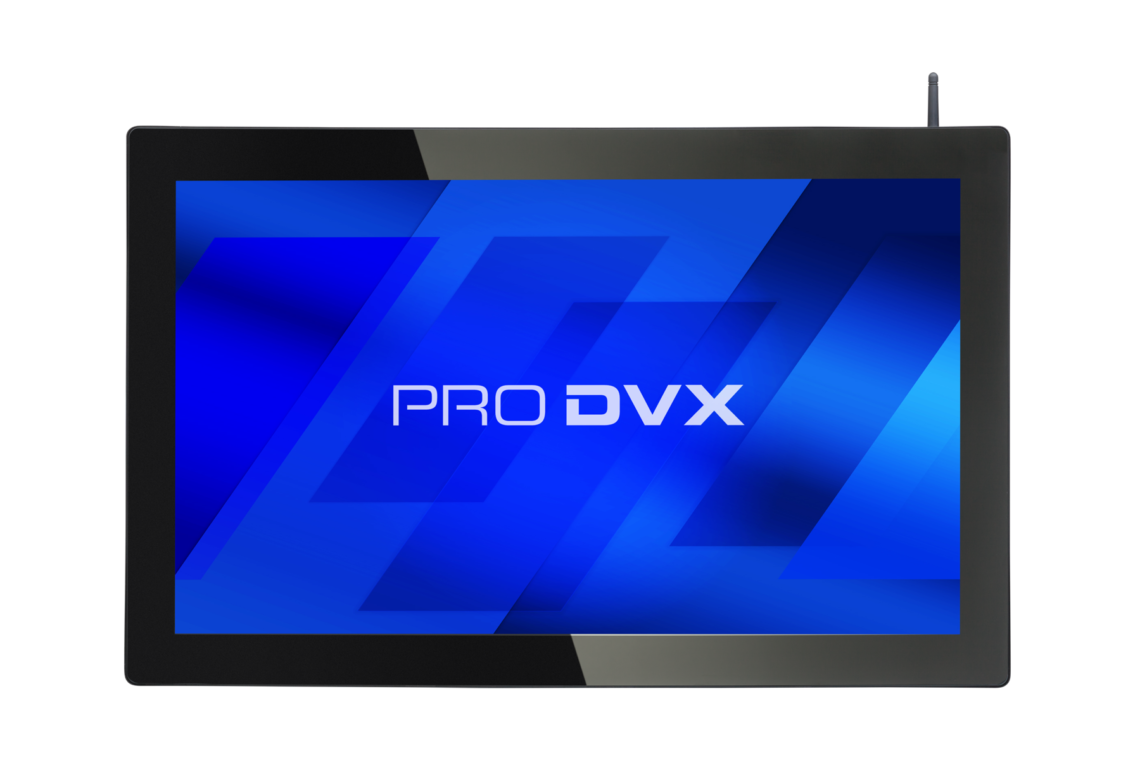

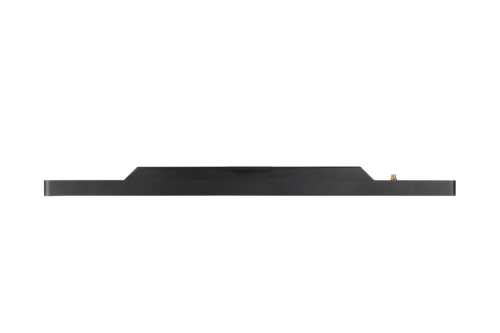

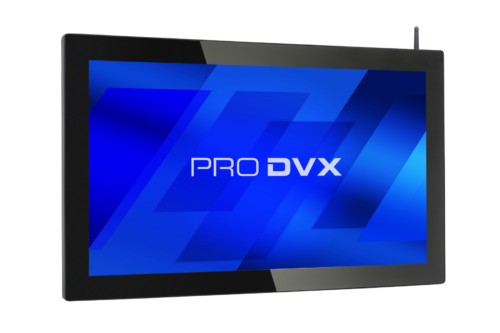

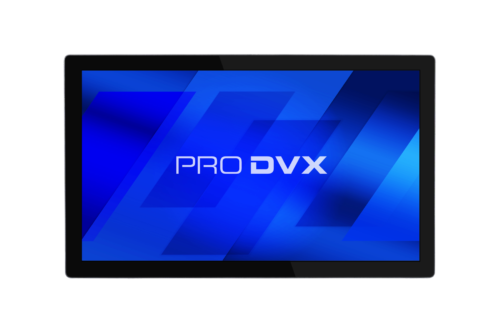

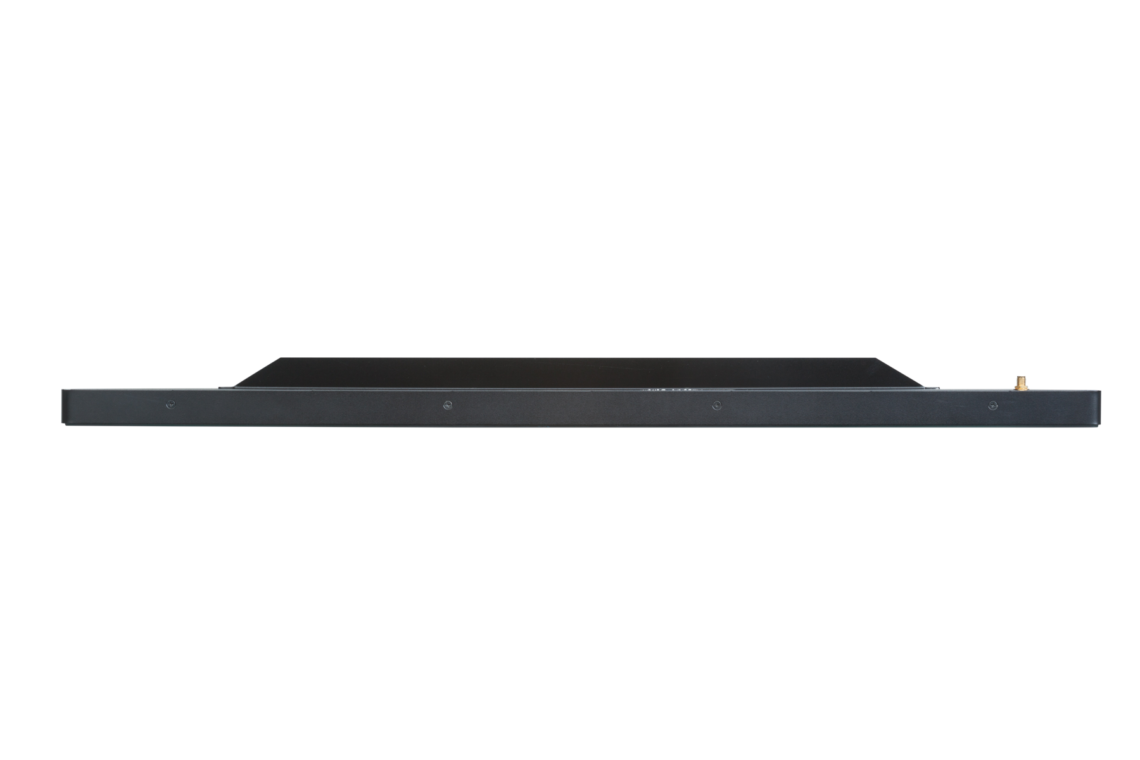

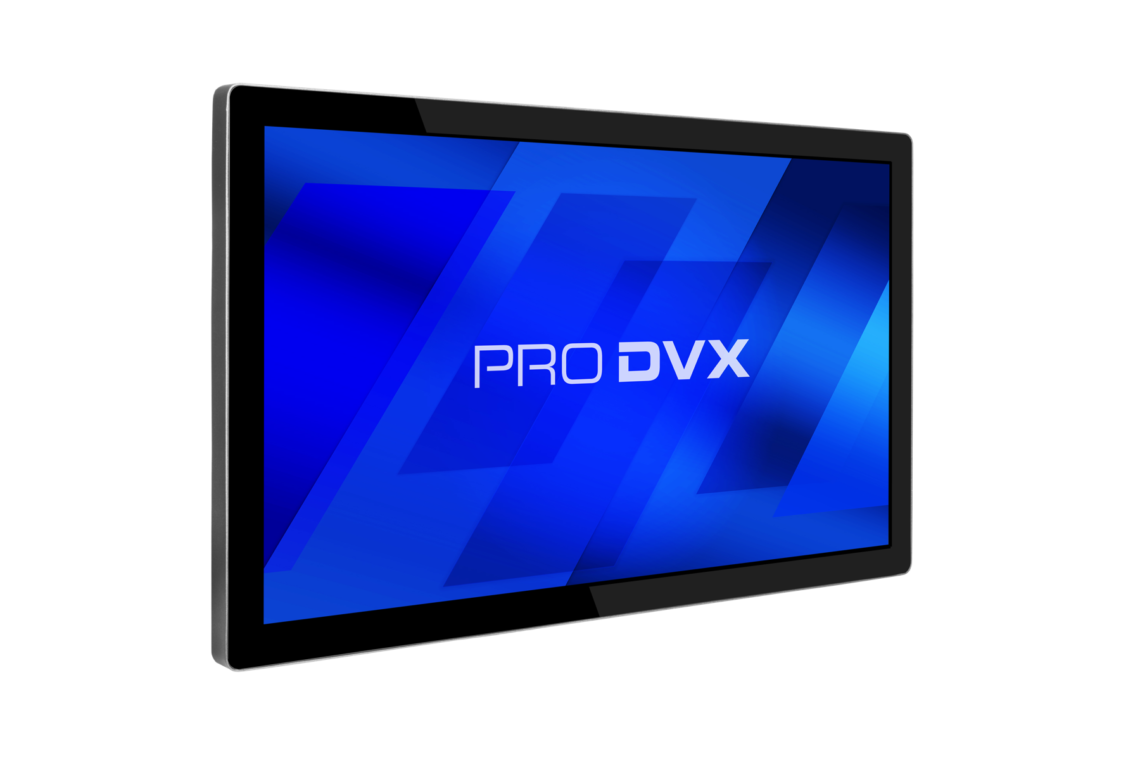

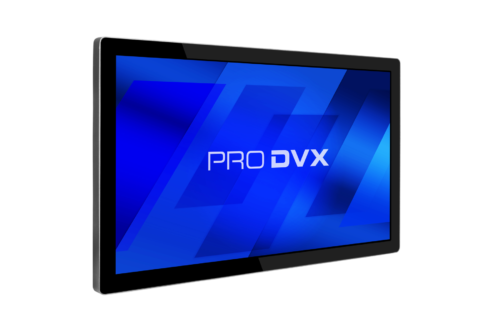

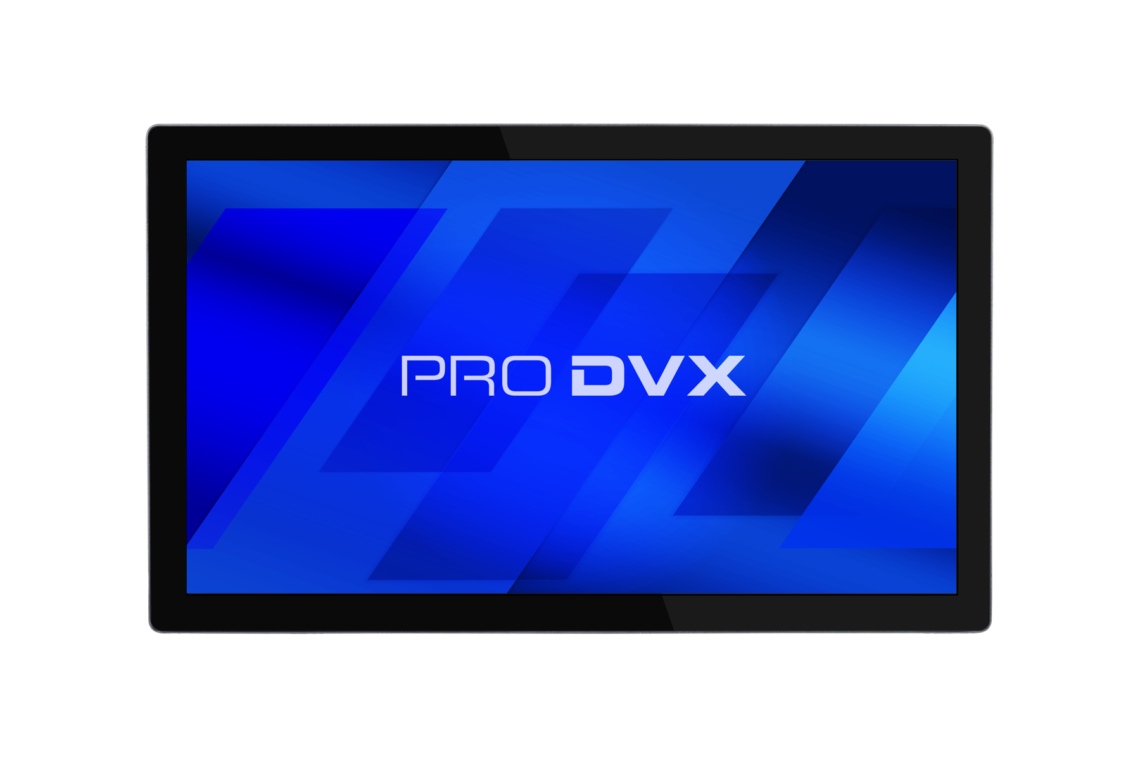

APPC-24X
(R23-7001)
Art. No: 5024200
The APPC-24X (R23-7001), featuring the latest Rockchip dual-processor and Mali-T860 GPU, is set to redefine performance standards. With 4GB of RAM and 16GB of storage, multitasking becomes a breeze. Operating on Android 11, it boasts one of the most flexible and secure operating systems available. The APPC-24X (R23-7001) achieves a maximum brightness of 250 cd/m2. Paired with a 10-point touch-enabled panel treated for non-glare, this Android Panel PC ensures an optimal user experience. Tailored for interactive kiosks, the APPC-24X (R23-7001) comes with a VESA mounting frame for easy installation. Its array of I/O ports ensures compatibility with a wide range of peripheral devices, making it a versatile solution for your needs.
Panel
| Panel type | TFT LCD IPS |
| Resolution | 1920 x 1080 |
| Aspect ratio | 16:9 wide |
| Backlight | Edge-LED backlight |
| Brightness | 250 cd/m2 |
| Viewing angle | H178 / V178 |
| Contrast ratio | 1000 to 1 |
| Touch Type | 10 point touch projected capacitive |
| Treatment | Non-glare |

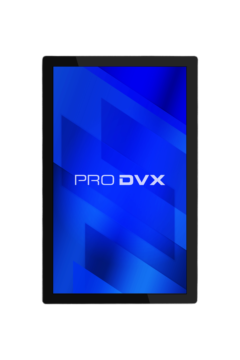

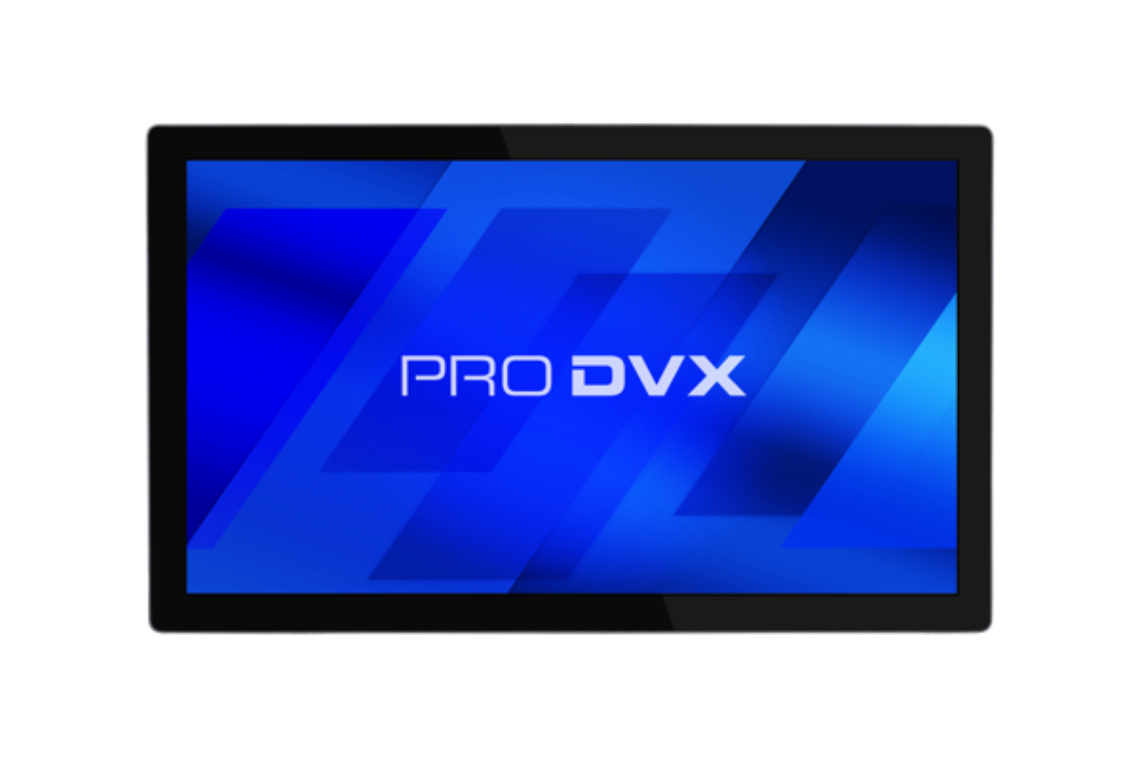

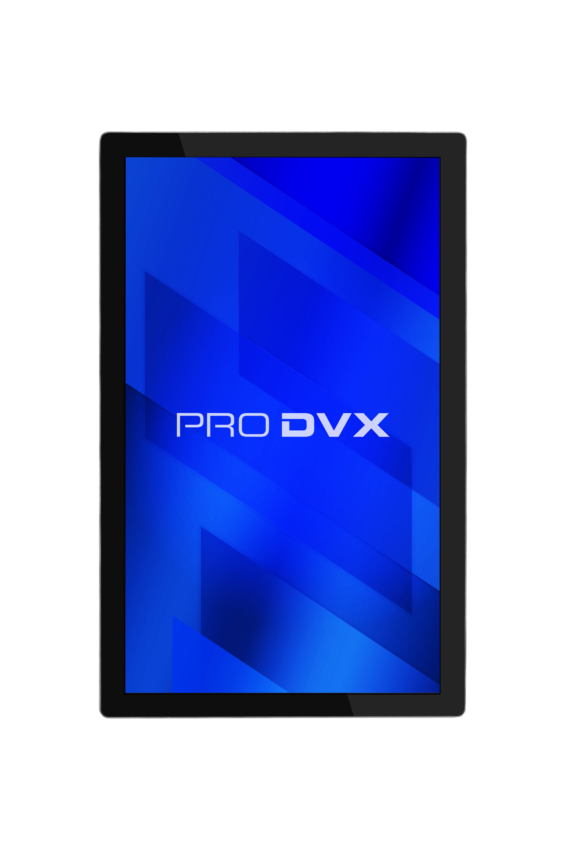

| Convenience | Landscape,Portrait,Table Mode |
| Gyro | N/A |
| Operation hours | 24h / 7d |
System
| Chipset | Cortex A72 2 Core+A53 4-Core |
| CPU | RK3399 (Dual Core Cortex A72 with Quad Core A53) |
| GPU | MALI T860MP4 / 3D Graphic Engine (4K) |
| Cooling | Fanless |
| System memory | 4GB LPDDR4 SDRAM |
| Video input | N.A. |
| Video out | Yes, mini-HDMI out |
| Internal storage | 16 GB eMMC Flash |
| External storage | SD-Card Slot (door) |
| Card slot | SD |
| OS | Android 11 |
| LED Light Bar | via PoGo |

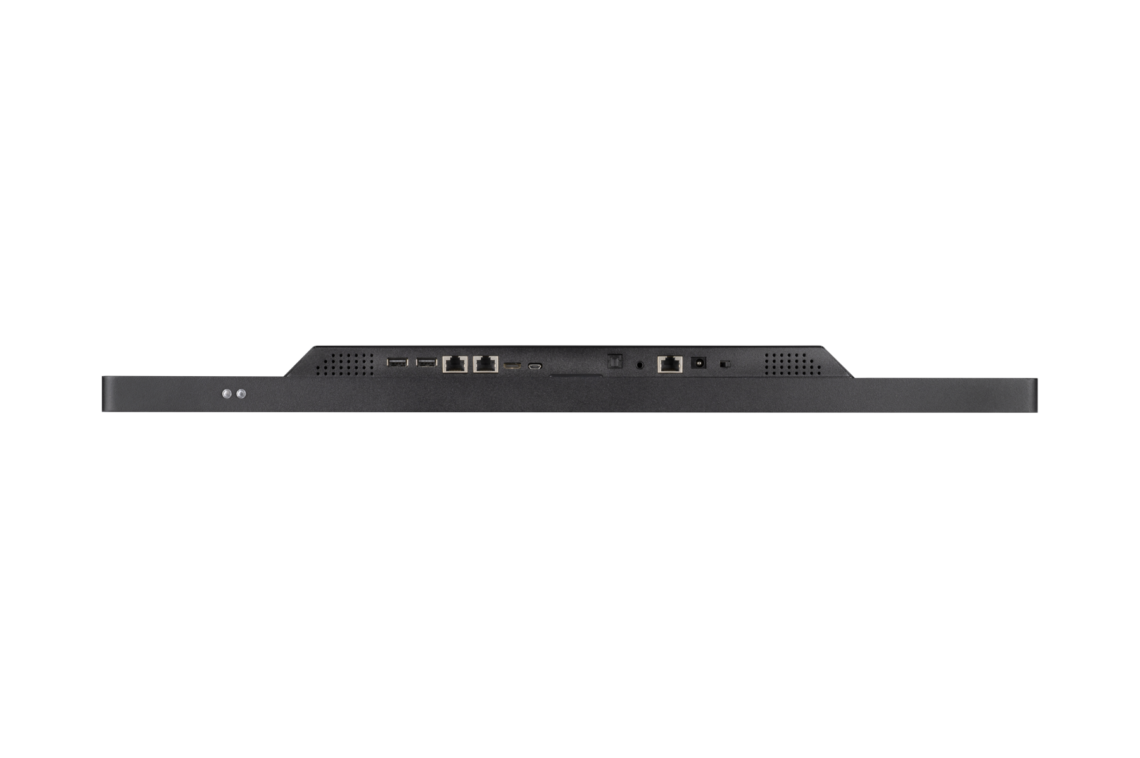

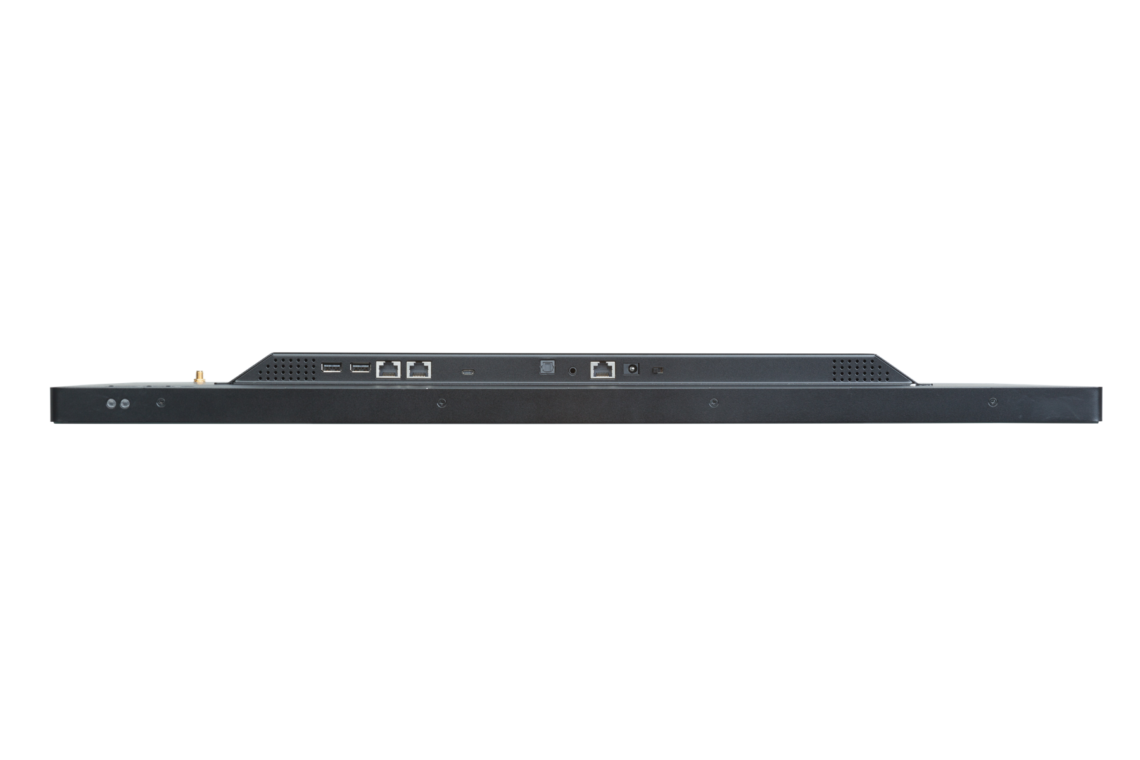

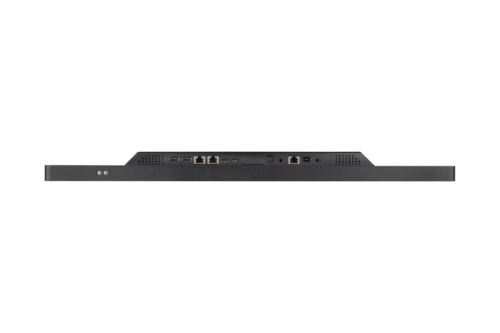

| I/O Ports | 12 V DC-IN,2x COM (RJ45),3.5 mm audio-out,Ethernet (RJ45),Micro-USB,S/PDIF,mini-hdmi-out,2x USB 2.0 |
| Network LAN RJ45 | 10/100/1000 Mbps LAN |
| WiFi | 802.11 a/b/g/n (external antenna) |
| Bluetooth | 5 |
| Power over Ethernet (PoE) | N/A |
| Integrated NFC | via PoGo & USB |
| Camera | via PoGo & USB |
Video/Audio
| Video support | 3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS |
| Audio support | AAC,ASF,MP2,OGG,WAV,WMA |
| Photo support | JPG,JPEG,PNG,BMP,GIF |
| Microphone | via USB & 3.5mm jack |
| Speakers | 2 x 3 W |
| Audio Jack Output 3.5mm | YES |
Physical
| Housing | Metal |
| Color | Black |
| Weight | 7210 g |
| Dimensions | 575,8 x 344,8 x 44 mm |

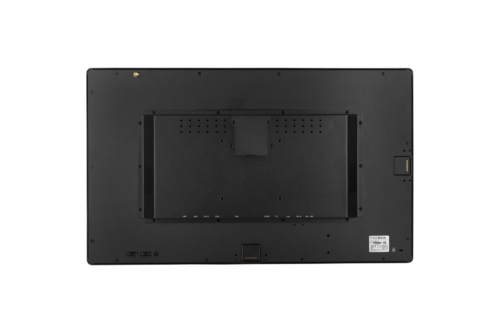

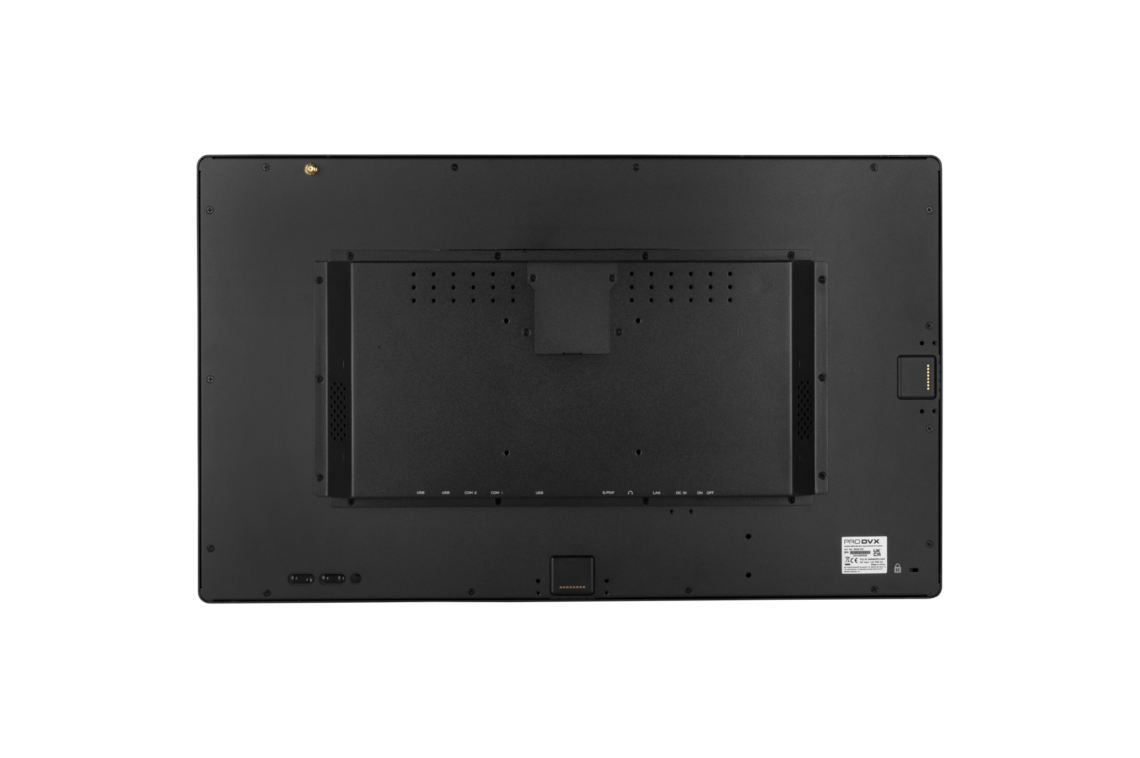

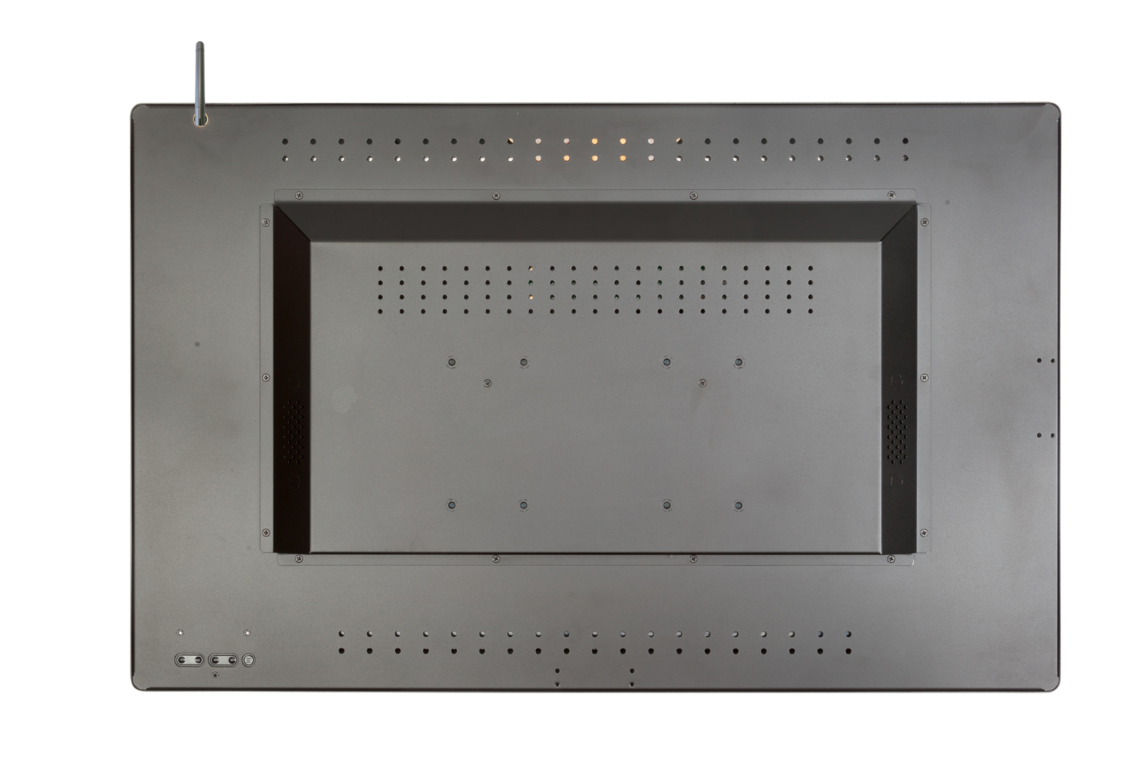

| Mounting / VESA | VESA 100 |
| Power Supply | 12 V / 5 A |
| Power Supply Included? | Yes |
| Power Usage | 40 ~ 60 Watt |
| Pogo Pins | 2x (bottom/left) |
Other
| OSD Language | Multi OSD language |
| Clock Battery (for RTC) | CR1220 Lithium metal, non rechargeable |
| Storage Temp | -10~55 degrees C |
| Working Temp | 0 ~ 40 degrees C |
| Storage/Working Humidity | 10 ~ 90 % non-condensing |
| MTBF | 50,000 hours demonstrated |
| Standard Warranty | 3 years |
| Certifications | UKCA, CE, FCC, RoHS, REACH |
| Art. No | 5024200 |
