APPC-10DSKPL

Integrated Android SOC Touch Displays

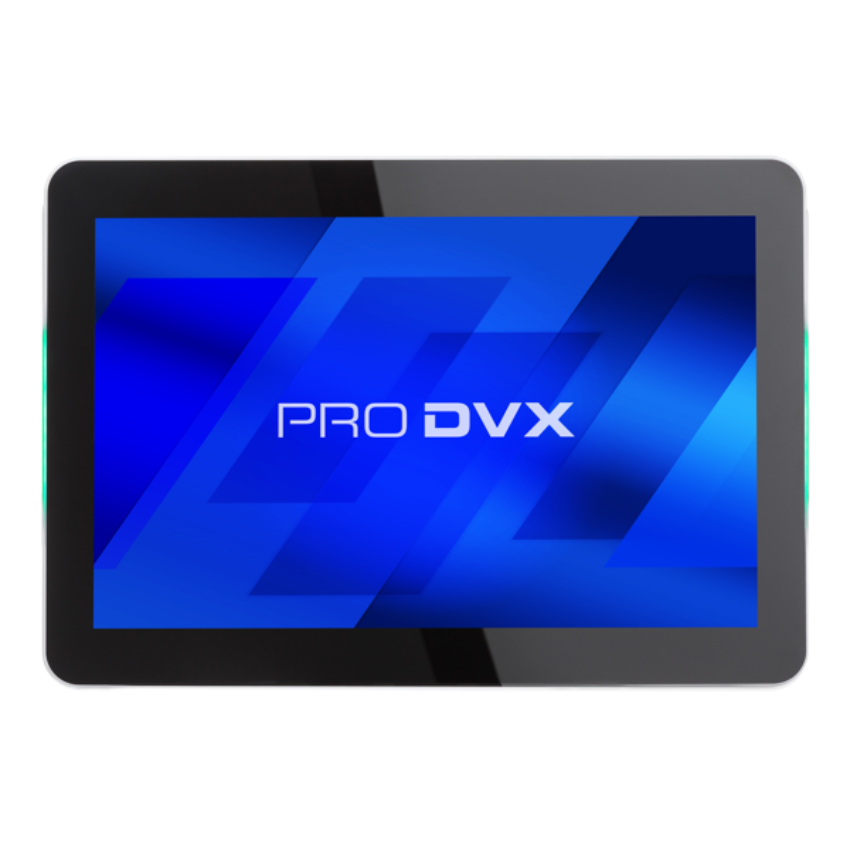

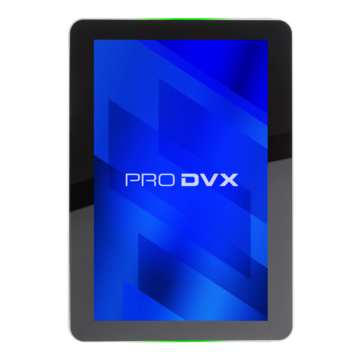

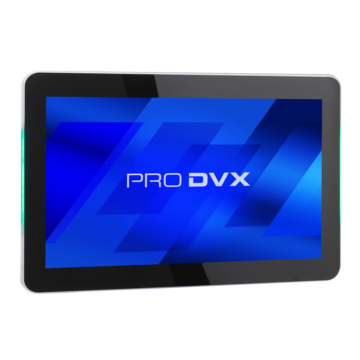

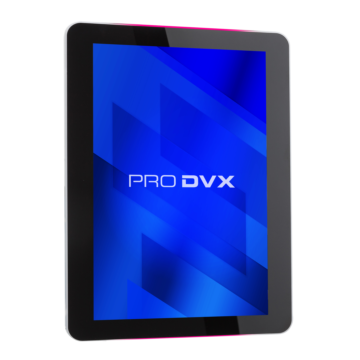

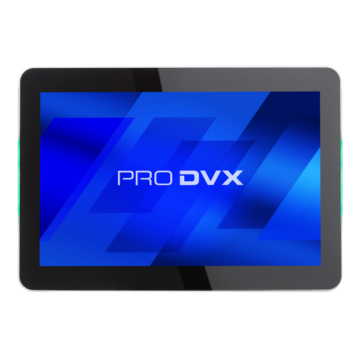

APPC-10DSKPL

Commercial Grade 10" Android Panel PC (Tablet) with unique features. The ultimate solution for your Interactive Digital Signage, Home Automation, Room Booking and many more applications. The Android DSK range is available in Metal, Plastic and Open Frame enclosure and various options including Power over Ethernet. Please contact us for all the possibilities for this specific product.

Features:

  • LED Color Bar for Room Signage and Access Control
  • Power over Ethernet
  • Cortex A17, Quad Core, RK3288
  • Robust eMMC Flash Memory
  • 10.1" high viewing angle IPS panel
  • RJ45 LAN, WiFi, Bluetooth
  • USB Connector
  • Micro USB connector
  • Open Source Android
  • Pogo Pins for optional accessories
  • Schedule: reboot / shut down / on off
  • VESA Mountable
  • BT version 4.2

Commercial grade build suitable for 24/7 usage.

Optional:

  • 1D/2D Barcode Scanner
  • NFC Module
  • Mounting Brackets

Specifications

Panel

Resolution 1280 x 800
Aspect Ratio 16:10 wide
Backlight LED Side light type
Brightness 500 cd/m2
Viewing Angle H 160° / V 160°
Contrast Ratio 600 : 1
Touch Type 5 point touch projected capacitive

System

CPU Cortex A17, Quad Core, RK3288
GPU MALI T764 / 3D Graphic Engine (4K)
System Memory 2 GB DDR3 SDRAM
Internal Storage 8 GB eMMC Flash
External Storage SD-Card Slot (hidden)
OS Android 6 / 8 / Linux Ubuntu
LED Light Bar RED / GREEN
I/O Ports Micro-USB / USB / HDMI / GPIO Port / 3.5 mm audio-out / RJ45 / POGO-Connector / 12V DC-IN
Network LAN RJ45 10/100/1000 Mbps LAN
WiFi / Bluetooth 802.11 a/b/g/n / BT 4.2
Power over Ethernet (PoE) IEE 802.3 af/at
Camera 2 M/P front camera (OPTIONAL)

Video/Audio

Video Support MKV, TS, FLV, AVI, VOB, MPG, DAT, ASF, RM, MOV, 3GP, MP4, WMV
Audio Support MP2, WMA, WAV, AAC, OGG, ASF
Photo Support JPG, JPEG, PNG, BMP, GIF
Microphone YES
Speakers 2 x 2 W
Audio Jack Output 3.5mm YES

Physical

Housing Plastic
Color Black
Weight 610 g
Dimensions 252 x 178 x 24 mm
Mounting / VESA VESA 75
Power Supply 12 V / 2 A
Power Usage 10 ~ 20 Watt

Other

LED Light Status Bar YES
Clock Battery (for RTC) Lithium ion non rechargeable coin
Storage Temp -15 ~ 65 degrees C
Working Temp -10 ~ 50 degrees C
Storage/Working Humidity 10 ~ 90% non-condensing
MTBF 45,000 hours demonstrated
Standard Warranty 2 years
Certifications FCC, CE, & RoHS
Optional Vesa Glass Mount GM-75
Optional Wall Mount WM-25
