IPPC-15-6300
(R26-6300)
Art. No: 6015200

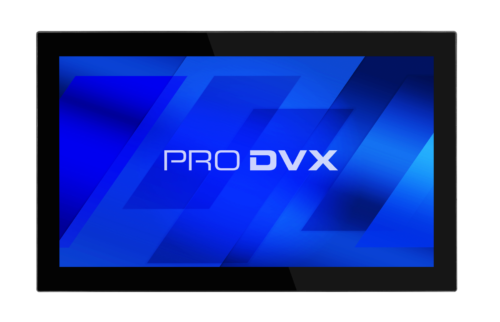

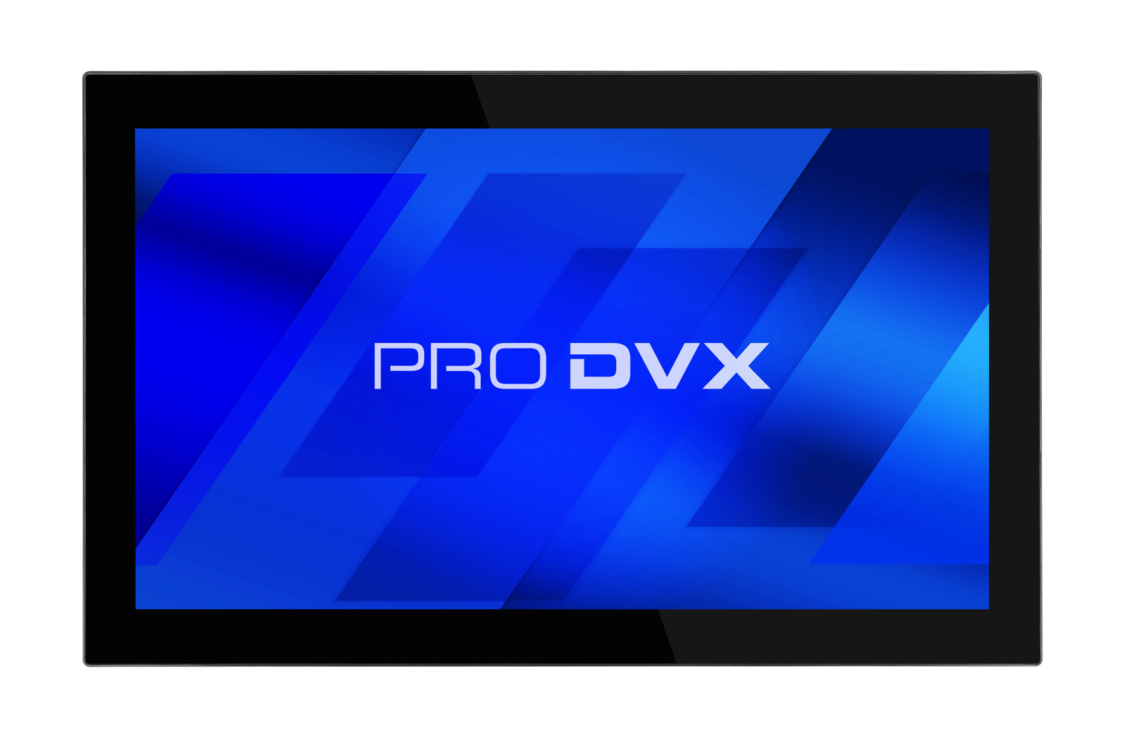

The ProDVX IPPC-15-6300 is an Intel Panel PC with a 15.6" Touch Display. The ProDVX IPPC-15-6000 standard comes with an Intel Pentium N150 (up to 3.6 GHz). This device can be connected through RJ45 LAN, WiFi (optional), Bluetooth (optional) and is fanless due to passive cooling. This Intel SOC Touch Display has a projected capacitive touch display in plastic housing. Optional accessories for the Pogo Pins are a 1D/2D Barcode Scanner, NFC Module or VESA brackets. This product requires an additional Windows 11 IoT Enterprise LTSC license.
Panel
| Panel type | TFT LCD IPS |
| Resolution | 1920 x 1080 |
| Aspect ratio | 16:9 wide |
| Backlight | Edge-LED backlight |
| Brightness | 400 cd/m2 |
| Viewing angle | H170 / V170 |
| Contrast ratio | 800 to 1 |
| Touch Type | 10 TP Pcap 10ms |
| Treatment | Glare |
| Convenience | Landscape,Portrait,Table Mode |
| Operation hours | 24h / 7d |
System
| CPU | Intel® Processor N150 |
| GPU | Intel® Graphics |
| Cooling | Fanless |
| System memory | 8GB DDR5 |
| Video input | N.A. |
| Video out | Yes, mini-HDMI out |
| Internal storage | 128GB NVMe M.2 SSD |
| External storage | N.A. |
| Storage socket 2 | N.A. |
| OS | Windows 11 IoT LTSC |
| Additional Windows license required | Yes, at a cost |
| LED Light Bar | via PoGo |

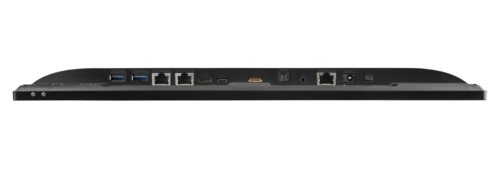

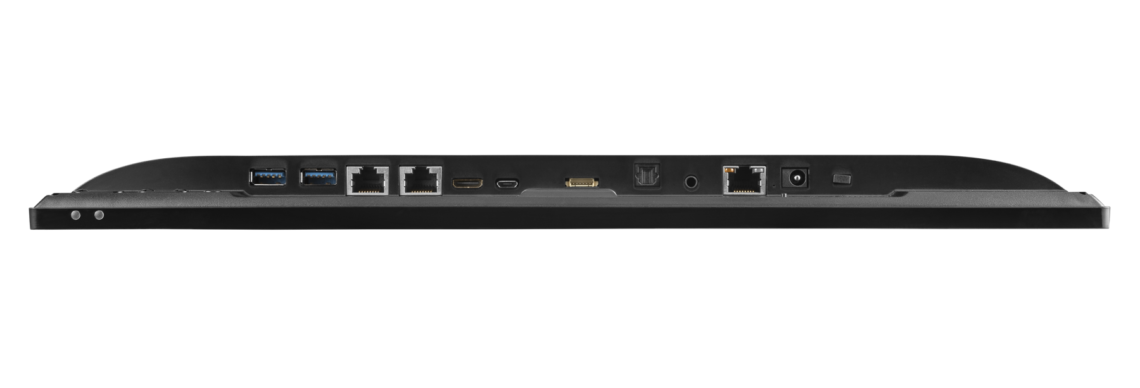

| I/O Ports | 12 V DC-IN,mini HDMI out,2x USB 3.0,3.5 mm jack in/out,USB-C,2x USB 2.0 |
| Network LAN RJ45 | 10/100/1000 Mbps LAN |
| WiFi | optional via USB dongle |
| Bluetooth | optional via USB dongle |
| Power over Ethernet (PoE) | N.A. |
| Integrated NFC | via PoGo & USB |
| Camera | via PoGo & USB |
Video/Audio
| Video support | MKV,MP4,AVI |
| Audio support | MP3,AAC,WMA |
| Photo support | JPEG,PNG |
| Microphone | via USB & 3.5mm jack |
| Speakers | 2 x 2 W |
| Audio Jack Output 3.5mm | YES |
Physical
| Housing | ABS+PC (Macrolon) |
| Color | Black |
| Weight | 1600 g |
| Dimensions | 387,3 x 240,3 x 27,2 mm |
| Mounting / VESA | VESA 100 |
| Power Supply | 12 V / 5 A |
| Power Supply Included? | Yes |
| Power Usage | 17 ~ 28 Watt |
| Pogo Pins | 3x (bottom/left/right) |
Other
| OSD Language | Multi OSD language |
| Clock Battery (for RTC) | CR2032 Lithium metal, non rechargeable |
| Storage Temp | -10~55 degrees C |
| Working Temp | 0 ~ 40 degrees C |
| Storage/Working Humidity | 10 ~ 90 % non-condensing |
| MTBF | 45,000 hours demonstrated |
| Standard Warranty | 3 years |
| Certifications | UKCA, CE, FCC, RoHS, REACH |
| Art. No | 6015200 |
