APPC-7XPLN (RK3368H)

SKU: 5007160
  • 7" Android Panel PC
  • Power over Ethernet+
  • 2-sided LED bar, Integrated NFC
  • This is a legacy product and is no longer available. Contact us to help you find a replacement for this product.

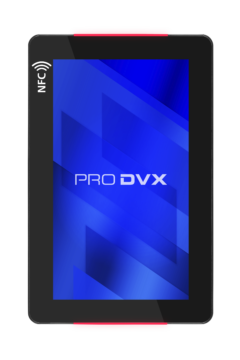

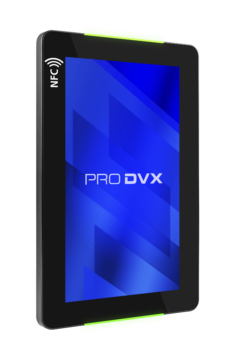

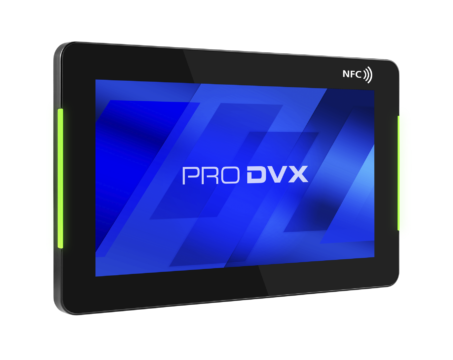

    The ProDVX APPC-7XPLN is an Android Panel PC with a 7” Touch Display, Power over Ethernet (PoE), Integrated NFC Module and 2 sided LED Bar (RGB) to emphasize the displayed content such as room availability. The ProDVX APPC-7XPLN comes with Android 8.1. This device can be connected through RJ45 LAN, WiFi, Bluetooth and contains a standard option to schedule reboot or shut down. This Android SOC Touch Display has a projected capacitive touch display and plastic housing. Optional accessories for the APPC-7XPLN are a 1D/2D Barcode Scanner, Camera or VESA mounting brackets.
    Panel
    Panel type TFT LCD
    Resolution 1024 x 600
    Aspect ratio 17:10 wide
    Backlight Edge-LED backlight
    Brightness 240 cd/m2
    Viewing angle H 140° / V 130°
    Contrast ratio 600 : 1
    Touch Type 10 point touch projected capacitive
    Convenience Landscape,Portrait,Table Mode
    Operation hours 24/7
    System
    CPU Cortex A53, Octa Core, RK3368H
    GPU Embedded 3D GPU - GC6110 (4k)
    Cooling Fanless
    System memory 2 GB DDR3 SDRAM
    Internal storage 16 GB eMMC Flash
    External storage miniSD-Card Slot (door)
    Card slot miniSD
    OS Android 8.1
    LED Light Bar 2 sided LED bar (RGB)
    I/O Ports 12 V DC-IN,3.5 mm audio-out,Micro-USB,RJ45,USB 2.0
    Network LAN RJ45 10/100 Mbps LAN
    WiFi 802.11 a/b/g/n/ac
    Bluetooth BT 4.2
    Power over Ethernet (PoE) IEEE 802.3at (PoE+)
    Integrated NFC Integrated NFC reader (NXP PN553)
    Camera Optional accessory
    Video/Audio
    Video support 3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS
    Audio support AAC,ASF,MP2,OGG,WAV,WMA
    Photo support JPG,JPEG,PNG,BMP,GIF
    Microphone YES
    Speakers 2 x 2 W
    Audio Jack Output 3.5mm YES
    Physical
    Housing Plastic
    Color Black
    Weight 500 g
    Dimensions 188,3 x 120,3 x 25,2 mm
    Mounting / VESA VESA 75
    Power Supply 12 V / 2 A (EU, UK, US)
    Power Supply Included? No
    Power Usage 7 ~ 13 Watt
    Pogo Pins YES (bottom)
    Other
    OSD Language Multi OSD language
    Clock Battery (for RTC) CR2032 - Lithium‐metal non‐rechargeable coin
    Storage Temp ‐10 ~ 55 degrees C
    Working Temp 0 ~ 40 degrees C
    Storage/Working Humidity 10 ~ 90 % non-condensing
    MTBF 40,000 hours demonstrated
    Standard Warranty 3 years
    Certifications FCC, CE, RoHS
    SKU 5007160
