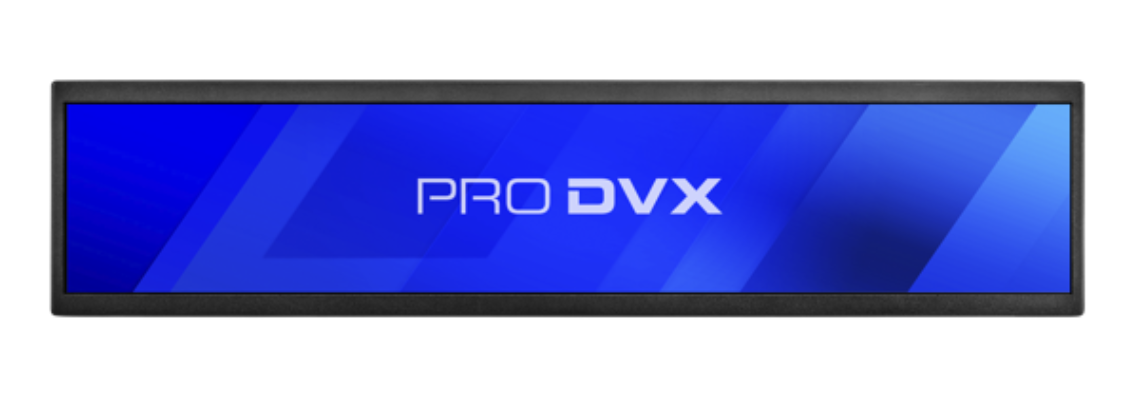

UW-24 | 24" UltraWide Signage Display
The ProDVX UW-24 is an all-in-one Android SOC UltraWide Stretch Display. The ProDVX UW-24 comes with Android 8.1. This device can be connected through RJ45 LAN, WiFi and Bluetooth. This 24" all-in-one Android SOC UltraWide Signage Stretch Display comes with a special mounting plate and has metal housing.
Panel
| Panel type | TFT LCD IPS |
| Resolution | 1920 x 360 |
| Aspect ratio | 16:3 wide |
| Backlight | Edge-LED backlight |
| Brightness | 300 cd/m2 |
| Vieweing angle | H 178° / V 178° |
| Contrast ratio | 1200 : 1 |
| Touch Type | N/A |
| Convenience | Landscape,Portrait |
| Gyro | YES |
| Operation hours | 24/7 |
System
| CPU | Cortex A17, 1.6GHz, 4-Core, RK3288 |
| GPU | MALI T764 / 3D Graphic Engine (4K) |
| Cooling | Fanless |
| System memory | 2 GB DDR3 SDRAM |
| Video out | HDMI |
| Internal storage | 16 GB eMMC Flash |
| External storage | SD-Card Slot |
| Card slot | SD |
| OS | Android 8.1 |
| LED Light Bar | N/A |
| I/O Ports | 3.5 mm audio-out,Mini-USB,RJ45,HDMI out,12 V DC-IN,3x USB 2.0 |
| Network LAN RJ45 | 10/100 Mbps LAN |
| WiFi | 802.11 b/g/n |
| Bluetooth | BT 4.0 |
| Power over Ethernet (PoE) | N/A |
| Integrated NFC | N/A |
| Camera | N/A |
Video/Audio
| Video support | 3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS |
| Audio support | AAC,ASF,MP2,OGG,WAV,WMA |
| Photo support | JPG,JPEG,PNG,BMP,GIF |
| Microphone | N/A |
| Speakers | N/A |
| Audio Jack Output 3.5mm | YES |
Physical
| Housing | Metal |
| Color | Black |
| Weight | 2750 g |
| Dimensions | 615,73 x 140,1 x 34 mm |
| Mounting / VESA | VESA unique pattern |
| Power Supply | 12 V / 3 A |
| Power Supply Included? | Yes |
| Power Usage | 10 ~ 18 Watt |
| Pogo Pins | N/A |
Other
| OSD Language | Multi OSD language |
| Clock Battery (for RTC) | CR2032 - Lithium‐metal non‐rechargeable coin |
| Storage Temp | ‐10 ~ 55 degrees C |
| Working Temp | 0 ~ 40 degrees C |
| Storage/Working Humidity | 10 ~ 90 % non-condensing |
| MTBF | 40,000 hours demonstrated |
| Standard Warranty | 2 years |
| Certifications | FCC, CE, RoHS |
