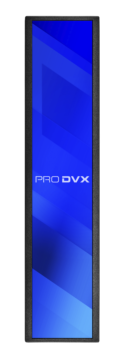

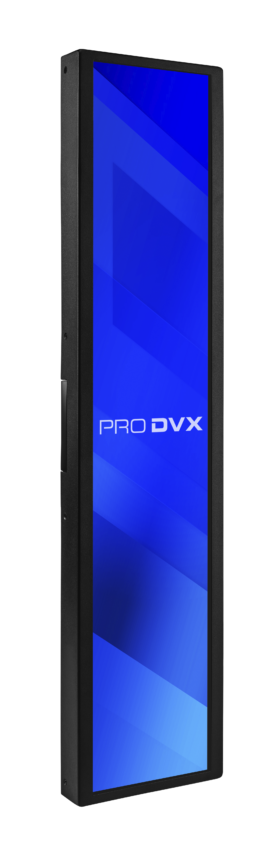

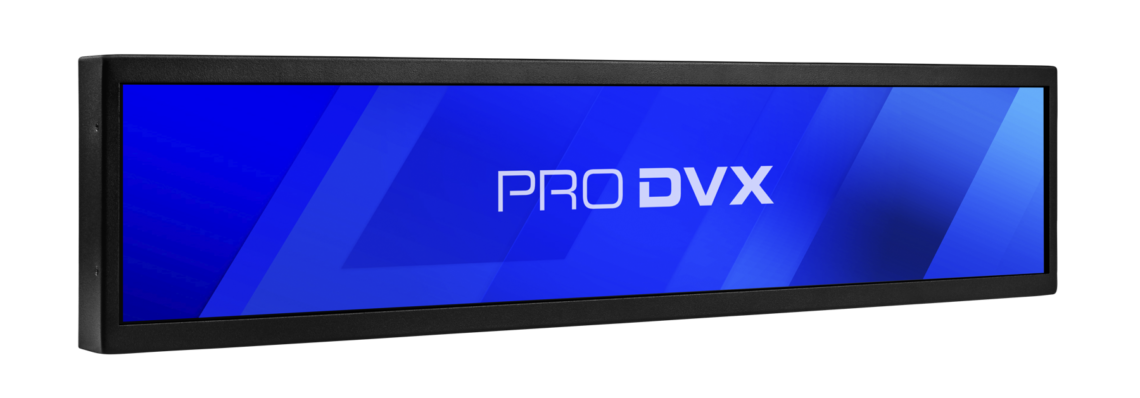

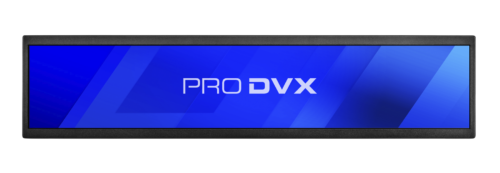

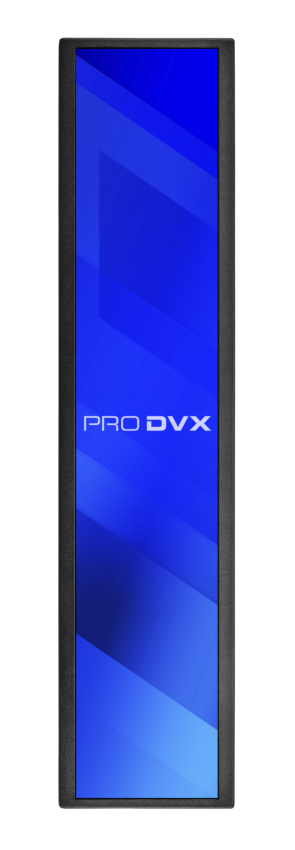

UW-24

SKU: 5524100
  • 24" UltraWide Signage Display
  • Android 8.1
  • Up to 300 cd/m2 brightness
  • This is a legacy product and is no longer available.

    Please find the replacement for this product here.

    The ProDVX UW-24 is an all-in-one Android SOC UltraWide Stretch Display. The ProDVX UW-24 comes with Android 8.1. This device can be connected through RJ45 LAN, WiFi and Bluetooth. This 24" all-in-one Android SOC UltraWide Signage Stretch Display comes with a special mounting plate and has metal housing.
    Panel
    Panel type TFT LCD IPS
    Resolution 1920 x 360
    Aspect ratio 16:3 wide
    Backlight Edge-LED backlight
    Brightness 300 cd/m2
    Viewing angle H 178° / V 178°
    Contrast ratio 1200 : 1
    Touch Type N/A
    Convenience Landscape,Portrait
    Gyro YES
    Operation hours 24/7
    System
    CPU Cortex A17, 1.6GHz, 4-Core, RK3288
    GPU MALI T764 / 3D Graphic Engine (4K)
    Cooling Fanless
    System memory 2 GB DDR3 SDRAM
    Video out HDMI
    Internal storage 16 GB eMMC Flash
    External storage SD-Card Slot
    Card slot SD
    OS Android 8.1
    LED Light Bar N/A
    I/O Ports 3.5 mm audio-out,Mini-USB,RJ45,HDMI out,12 V DC-IN,3x USB 2.0
    Network LAN RJ45 10/100 Mbps LAN
    WiFi 802.11 b/g/n
    Bluetooth BT 4.0
    Power over Ethernet (PoE) N/A
    Integrated NFC N/A
    Camera N/A
    Video/Audio
    Video support 3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS
    Audio support AAC,ASF,MP2,OGG,WAV,WMA
    Photo support JPG,JPEG,PNG,BMP,GIF
    Microphone N/A
    Speakers N/A
    Audio Jack Output 3.5mm YES
    Physical
    Housing Metal
    Color Black
    Weight 2750 g
    Dimensions 615,73 x 140,1 x 34 mm
    Mounting / VESA VESA unique pattern
    Power Supply 12 V / 3 A
    Power Supply Included? Yes
    Power Usage 10 ~ 18 Watt
    Pogo Pins N/A
    Other
    OSD Language Multi OSD language
    Clock Battery (for RTC) CR2032 - Lithium‐metal non‐rechargeable coin
    Storage Temp ‐10 ~ 55 degrees C
    Working Temp 0 ~ 40 degrees C
    Storage/Working Humidity 10 ~ 90 % non-condensing
    MTBF 40,000 hours demonstrated
    Standard Warranty 2 years
    Certifications CE, RoHS, REACH
    SKU 5524100
