TMP-07
SKU: 10101207.107
This is a legacy product and is no longer available. Contact us to help you find a replacement for this product.

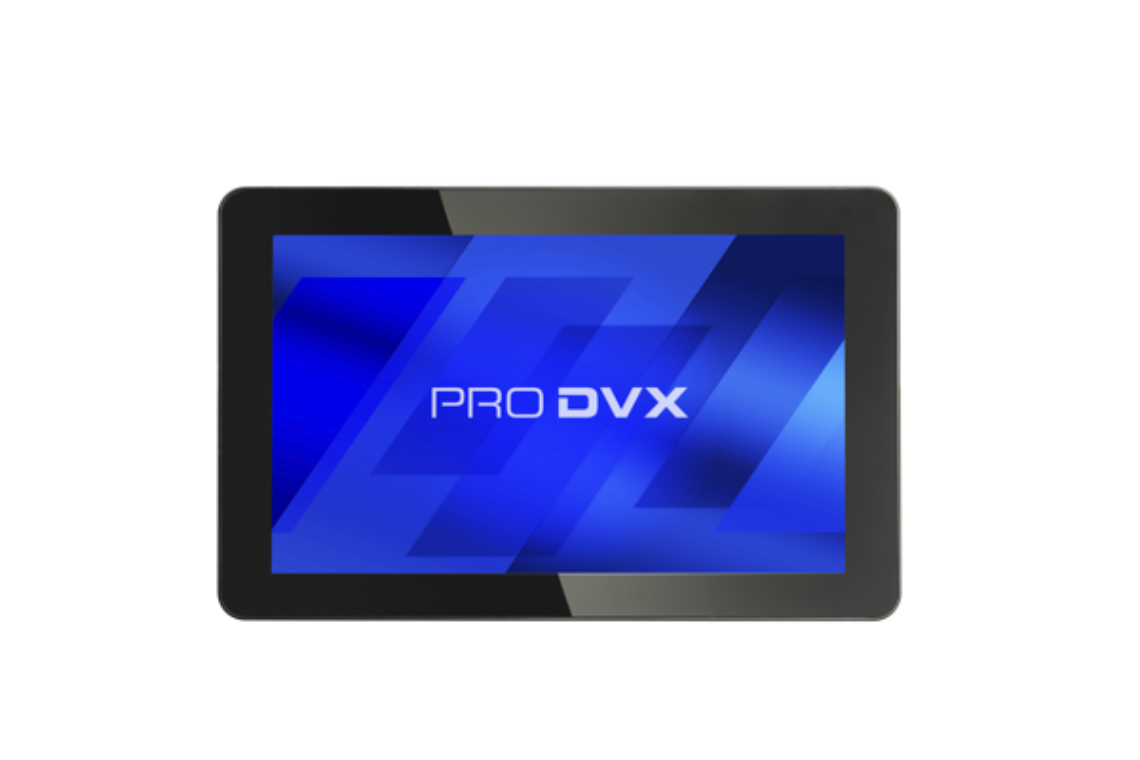

The ProDVX TMP-07 is a professional Touch Monitor Display. The ProDVX TMP-07 comes with a 5 point Projected Capacitive Touch Display. The video input on this 7" Touch Monitor Display is HDMI and VGA. This Commercial Grade Touch Display has a plastic frontside and metal backside. The device can be mounted through a half VESA mounting bracket.
Panel
| Panel type | TFT LCD |
| Resolution | 1024 x 600 |
| Aspect ratio | 17:10 wide |
| Backlight | Edge-LED backlight |
| Brightness | 240 cd/m2 |
| Viewing angle | H 140° / V 130° |
| Contrast ratio | 600 : 1 |
| Touch Type | 10 point touch projected capacitive |
| Convenience | Landscape,Portrait,Table Mode |
| Gyro | N/A |
System
| Monitor | YES |
| Video input | HDMI / VGA |
| Video resolution | 1024 x 600 |
| Internal media player | N/A |
| Card slot | N/A |
| USB Host | 1 x |
| I/O Ports | 12 V DC-IN,HDMI-in 1.4,USB-B,VGA |
| Power over Ethernet (PoE) | N/A |
Video/Audio
| Speakers | N/A |
| Audio Jack Output 3.5mm | N/A |
Physical
| Housing | Plastic / Metal |
| Color | Black |
| Weight | 450 g |
| Dimensions | 188 x 120 x 24 mm |
| Mounting / VESA | VESA unique pattern |
| Power Supply | 12 V / 2 A (EU, UK, US) |
| Power Supply Included? | Yes |
| Power Usage | 6 Watt |
Other
| Working Temp | 0 ~ 40 degrees C |
| Standard Warranty | 2 years |
| Certifications | FCC, CE, RoHS |
| SKU | 10101207.107 |
