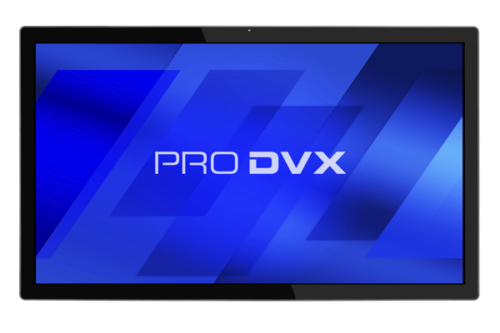

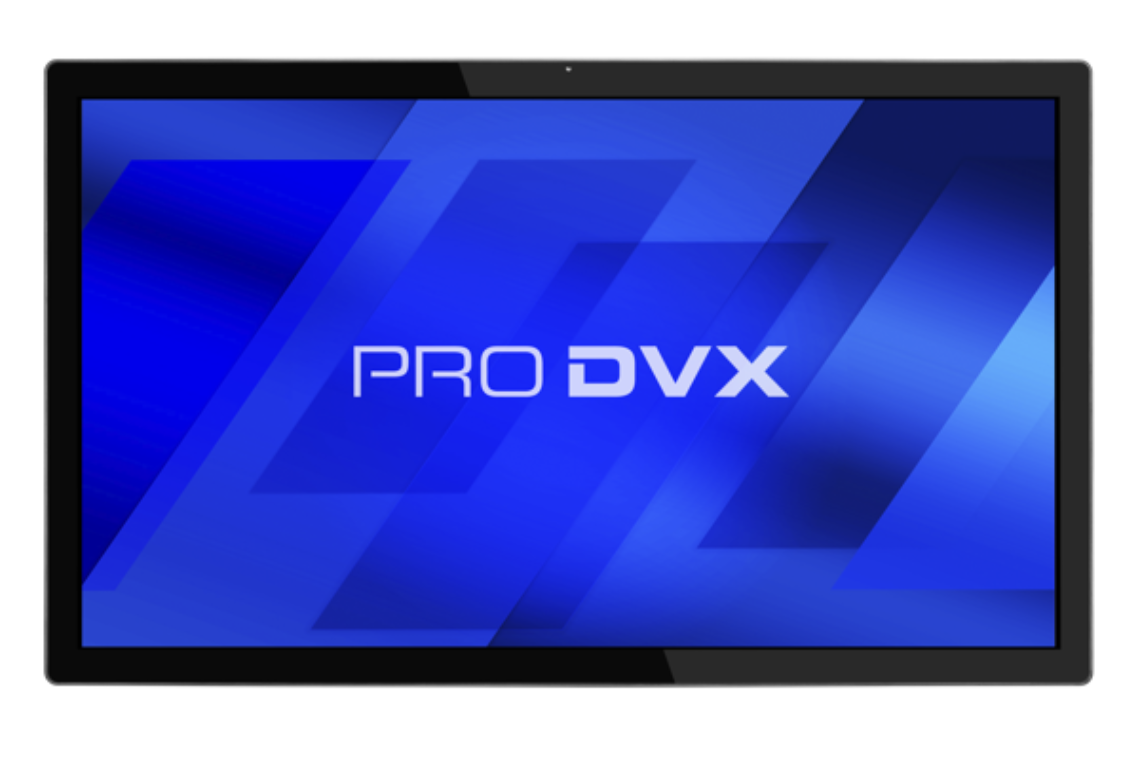

APPC-32EL | 32" Android Touch Display
This is a legacy product and is no longer available. Contact us to help you find a replacement for this product.
The ProDVX APPC-32EL is an Android Panel PC with a 32” Touch Display. The ProDVX APPC-32EL comes with Android 6. This device can be connected through RJ45 LAN, WiFi and Bluetooth. This Android SOC Touch Display has a projected capacitive touch display and plastic housing. This Entry Level display is part of the EL Series by ProDVX and standard comes with a Mini USB, USB, HDMI I/O ports and optional with a 2MP camera. Optional accessories are a Barcode Scanner (USB), NFC Module (USB) or VESA mounting brackets.
Panel
| Panel type | TFT LCD IPS |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 wide |
| Backlight | Edge-LED backlight |
| Brightness | 250 cd/m2 |
| Viewing Angle | H 178° / V 178° |
| Contrast Ratio | 3000 : 3 |
| Touch Type | 10 point touch projected capacitive |
| Convenience | Landscape,Portrait,Table Mode |
System
| CPU | Cortex A17, Quad Core, RK3288 |
| GPU | MALI T764 / 3D Graphic Engine (4K) |
| System Memory | 2 GB DDR3 SDRAM |
| Internal Storage | 16 GB eMMC Flash |
| External Storage | SD-Card Slot |
| OS | Android 6 |
| LED Light Bar | N/A |
| I/O Ports | 12 V DC-IN,3.5 mm audio-out,HDMI out,Micro-USB,RJ45,USB |
| Network LAN RJ45 | 10/100 Mbps LAN |
| WiFi | 802.11 b/g/n |
| Bluetooth | BT 4.0 |
| Power over Ethernet (PoE) | N/A |
| Integrated NFC | N/A |
| Camera | N/A |
Video/Audio
| Video Support | 3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS |
| Audio Support | AAC,ASF,MP2,OGG,WAV,WMA |
| Photo Support | JPG,JPEG,PNG,BMP,GIF |
| Microphone | N/A |
| Speakers | 2 x 3 W |
| Audio Jack Output 3.5mm | YES |
Physical
| Housing | Plastic |
| Color | Black |
| Weight | 8500 g |
| Dimensions | 751 x 450 x 41 mm |
| Mounting / VESA | VESA 100 |
| Power Supply | 12 V / 5 A |
| Power Supply Included? | Yes |
| Power Usage | 10 ~ 20 Watt |
Other
| OSD Language | Multi OSD language |
| Clock Battery (for RTC) | Lithium‐metal non‐rechargeable coin |
| Storage Temp | ‐10 ~ 55 degrees C |
| Working Temp | 0 ~ 40 degrees C |
| Storage/Working Humidity | 10 ~ 90 % non-condensing |
| MTBF | 45,000 hours demonstrated |
| Standard Warranty | 2 years |
| Certifications | CE, RoHS |
