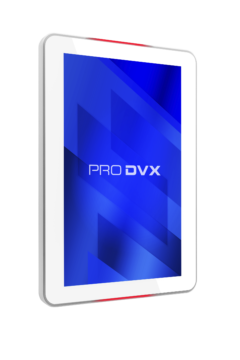

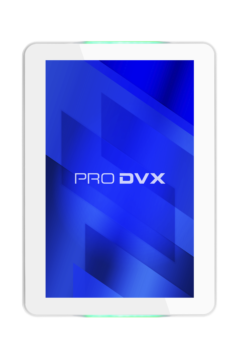

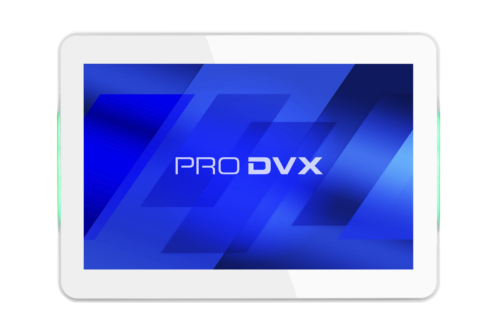

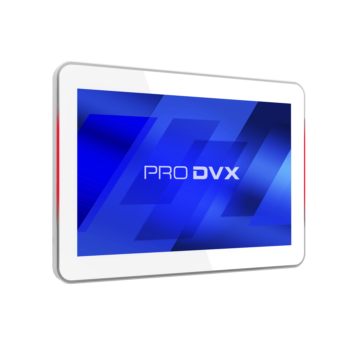

APPC-10XPLW
Commercial Grade 10" Android Panel PC (Tablet) with unique features. The ultimate solution for your Interactive Digital Signage, Home Automation, Room Booking and many more applications. The X-Series are available in various sizes including Power over Ethernet.
Features:
- Side LED Status Light Bar for Room Signage and Access Control
- Power over Ethernet
- Cortex A17, Quad Core, RK3288
- Robust eMMC Flash Memory
- 10.1" high viewing angle IPS panel
- RJ45 LAN, WiFi, Bluetooth
- USB Connector
- Micro USB connector
- Open Source Android
- Pogo Pins for optional accessories
- Schedule: reboot / shut down / on off
- VESA Mountable
- BT version 4.2
- Commercial grade build suitable for 24/7 usage
- Also available in black
Optional:
- 1D/2D Barcode Scanner
- NFC Module
- Mounting Brackets
Specifications
Panel
| Resolution | 1280 x 800 |
| Aspect Ratio | 16:10 wide |
| Backlight | LED Side light type |
| Brightness | 500 cd/m2 |
| Viewing Angle | H 160° / V 160° |
| Contrast Ratio | 800 : 1 |
| Touch Type | 5 point touch projected capacitive |
System
| CPU | Cortex A17, Quad Core, RK3288 |
| GPU | MALI T764 / 3D Graphic Engine (4K) |
| System Memory | 2 GB DDR3 SDRAM |
| Internal Storage | 16 GB eMMC Flash |
| External Storage | SD-Card Slot (hidden) |
| OS | Android 8 (Optional: Linux Ubuntu) |
| LED Light Bar | 2 side LED bar |
| I/O Ports | Micro-USB / USB / HDMI / GPIO Port / 3.5 mm audio-out / RJ45 / POGO-Connector / 12 V DC-IN |
| Network LAN RJ45 | 10/100/1000 Mbps LAN |
| WiFi / Bluetooth | 802.11 a/b/g/n/ac / BT 4.2 |
| Power over Ethernet (PoE) | IEE 802.3 af/at |
| Camera | 2 M/P front camera (optional) |
Video/Audio
| Video Support | MKV, TS, FLV, AVI, VOB, MPG, DAT, ASF, RM, MOV, 3GP, MP4, WMV |
| Audio Support | MP2, WMA, WAV, AAC, OGG, ASF |
| Photo Support | JPG, JPEG, PNG, BMP, GIF |
| Microphone | Yes |
| Speakers | 2 x 2 W |
| Audio Jack Output 3.5mm | Yes |
Physical
| Housing | Plastic |
| Color | White |
| Weight | 650 g |
| Dimensions | 255 x 181 x 25 mm |
| Mounting / VESA | VESA 75 |
| Power Supply | 12V / 2A (EU, UK, US) |
| Power Usage | 10 ~ 20 Watt |
Other
| LED Light Status Bar | YES |
| Clock Battery (for RTC) | Lithium ion non rechargeable coin |
| Storage Temp | -15 ~ 65 degrees C |
| Working Temp | 0 ~ 40 degrees C |
| Storage/Working Humidity | 10 ~ 90% non-condensing |
| MTBF | 50,000 hours demonstrated |
| Standard Warranty | 2 years |
| Certifications | FCC, CE, & RoHS |
| Optional Vesa Glass Mount | GM-75 |
| Optional Wall Mount | WM-25 |
