ABPC-543

Box PC's

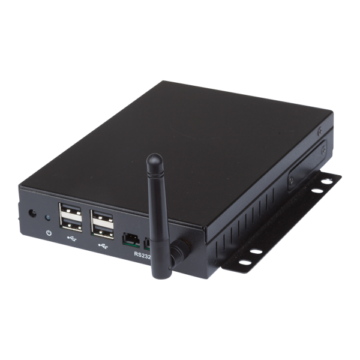

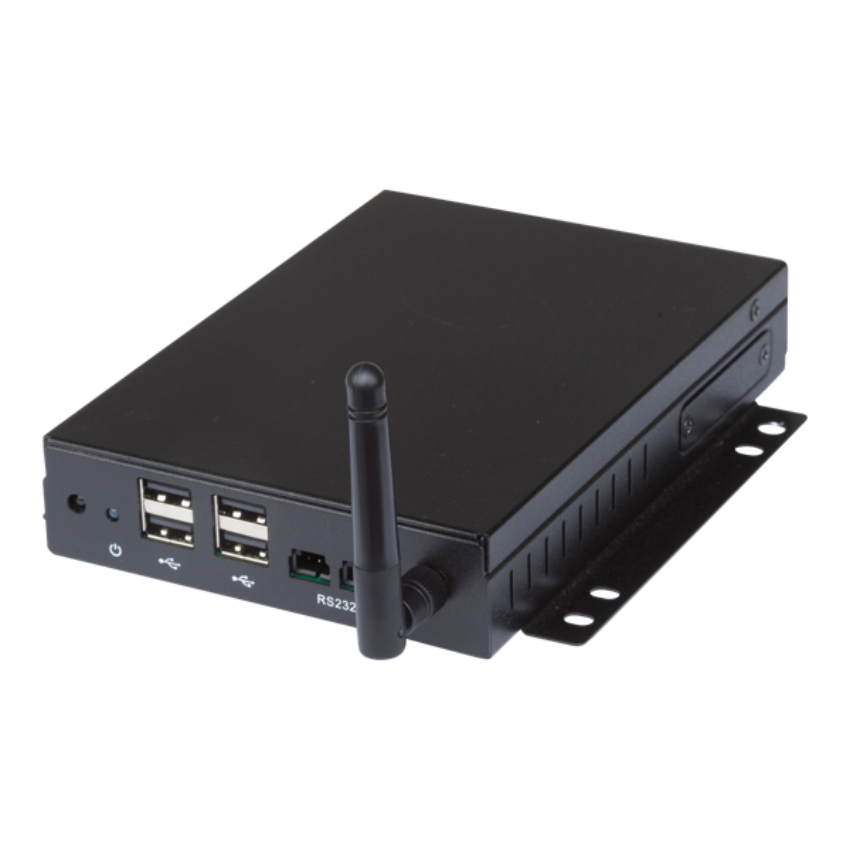

ABPC-543

With our Android Box PC you can reach your customers and have them interact with your brand in a way that is proven to increase sales and brand awareness. Made of durable materials and built specifically for commercial use, ProDVX Devices have been developed to solve the problems found in commercial environments that consumer devices are not designed for.

ProDVX offers the following Professional Grade Android Box PC:

  • ABPC-543 (4K)

All of them build using more than 20 years of passion and experience in the industry.

Specifications

System

Chipset Cortex A17, 1.6 GHz, 4-Core
Processor RK3288
GPU MALI T764 / 3D Graphic Engine (4K)
Cooling Fanless
System Memory 2 GB DDR3 SDRAM
Internal Storage 8 GB eMMC Flash
Storage Socket 2 SD-Card Slot (hidden)
OS Android 5.1 / Linux Ubuntu
I/O Ports USB (4x) / HDMI / RS232 / 3.5 mm audio-out / RJ45 / 12V DC-IN
Network LAN RJ45 100/1000 Mbps LAN
WiFi / Bluetooth 802.11 b/g/n SiP wireless module
Power over Ethernet (PoE) OPTIONAL

Physical

Housing Metal
Color Black
Weight 470 g
Dimensions 155 x 130 x 31 mm
Mounting / VESA OPTIONAL
Power Supply 12 V / 2 A
Power Usage 5 ~ 9 Watt

Other

Clock Battery (for RTC) Lithium ion non rechargeable coin
Storage Temp -15 ~ 65 degrees C
Working Temp -10 ~ 50 degrees C
Storage/Working Humidity 10 ~ 90% non-condensing
MTBF 45,000 hours demonstrated
Standard Warranty 2 years
Certifications FCC, CE, & RoHS
