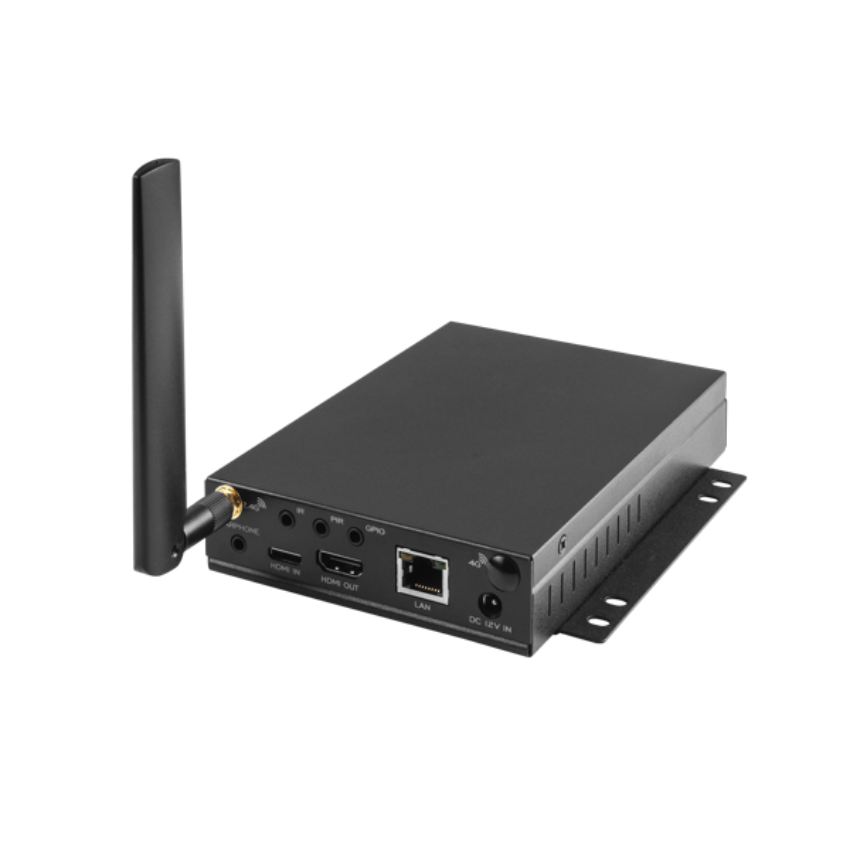

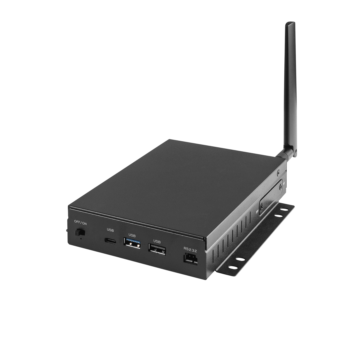

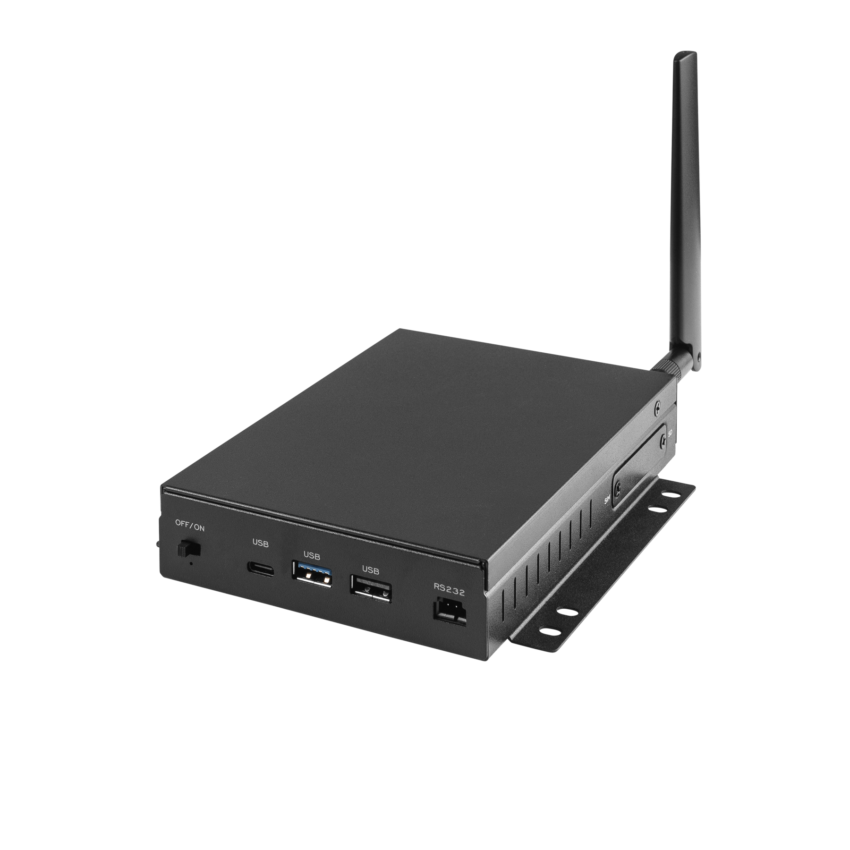

ABPC-4220

  • Android Box PC
  • Power-over-Ethernet+
  • Android 9
  • With our Android Box PC you can reach your customers and have them interact with your brand in a way that is proven to increase sales and brand awareness. Our ABPC-4220 comes with Android 9 and Power-over-Ethernet+. Made of durable materials and built specifically for commercial use, ProDVX Devices have been developed to solve the problems found in commercial environments that consumer devices are not designed for.
    Panel
    Gyro N/A
    System
    Processor RK3399
    CPU Dual Core Cortex A72 with Quad Core A53
    GPU MALI T860MP4 / 3D Graphic Engine (4K)
    Cooling Fanless
    System Memory 4GB DRAM
    Video Input mini HDMI
    Video Out HDMI
    Internal Storage 16GB eMMC
    External Storage miniSD-Card Slot (door)
    Card Slot miniSD
    OS Android 9 (optional Linux)
    I/O Ports 3.5 mm (IR and PIR sensor in),Combo Jack,GPIO Port,HDMI-out 2.0,RJ45,RS232,USB 2.0,USB 3.0,USB-C,mini-HDMI-in 1.4
    Network LAN RJ45 10/100/1000 Mbps LAN
    WiFi 802.11 a/b/g/n/ac 2.4&5GHz (external antenna)
    Bluetooth BT 4.2
    Power over Ethernet (PoE) IEEE 802.3at (PoE+)
    Camera N/A
    Video/Audio
    Video Support 3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS
    Audio Support AAC,ASF,MP2,OGG,WAV,WMA
    Photo Support JPG,JPEG,PNG,BMP,GIF
    Microphone YES (Combo Jack)
    Speakers N/A
    Audio Jack Output 3.5mm YES
    Physical
    Housing Metal
    Color Black
    Weight 470 g
    Dimensions 153 x 107 x 31 mm
    Mounting / VESA VESA 75/100 x 120 mm
    Power Supply 12V / 2A DC input
    Power Supply Included? No
    Power Usage 10 ~ 15 Watt
    Other
    OSD Language Multi OSD language
    Clock Battery (for RTC) CR1220 - Lithium‐metal non‐rechargeable coin
    MTBF 45,000 hours demonstrated
    Standard Warranty 3 years
    Certifications FCC, CE & RoHS
