SKU: 5010630

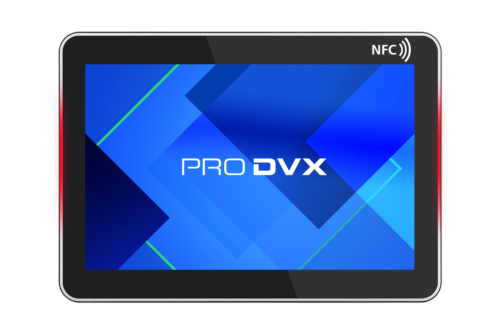

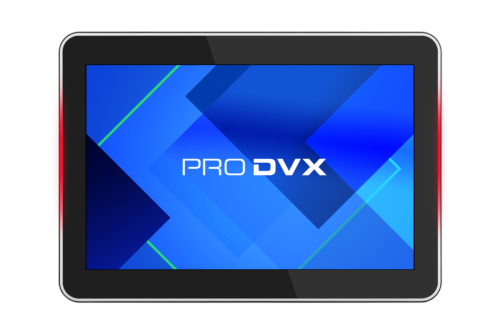

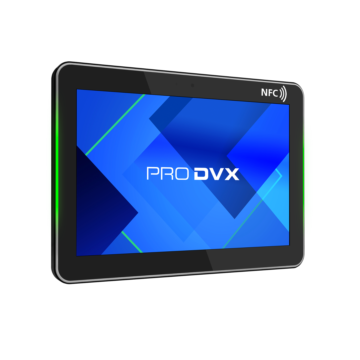

  • 10.1" Android Panel PC
  • Power over Ethernet+

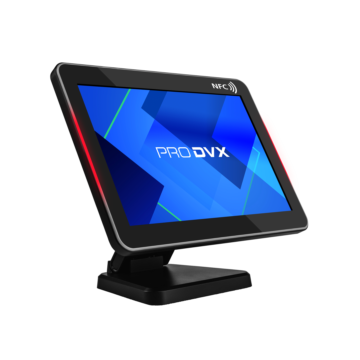

  • 2-sided LED bar, Integrated NFC

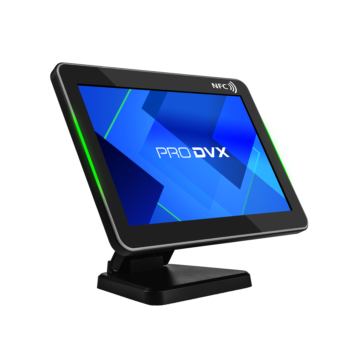

  • The APPC-10XPLN (R23-7281) is a 10.1-inch Android Panel PC, featuring Android 12 and a new quad-core Cortex-A55 CPU and Mali-G52 GPU (RK3568). It comes with a 2-sided RGB LED bar for efficient signalling, and an integrated NFC reader for NFC-enabled solutions. The APPC-10XPLN (R23-7281) ensures superior performance and next-level user experience. Enjoy hassle-free installation with the VESA mounting frame, and Power over Ethernet+ capability for efficient power provisioning. In addition, the non-glare touch panel, which supports 10-point PCAP touch functionality and high brightness, ensures an optimal user experience. The APPC-10XPLN (R23-7281) is a highly versatile device, capable of handling any solution with ease. Its variety of I/O ports and pogo pin ports allow you to add any peripheral to further enhance your solution.
    Panel type TFT LCD IPS
    Resolution 1280 x 800
    Aspect ratio 16:10 wide
    Backlight Edge-LED backlight
    Brightness 500 cd/m2
    Viewing angle H160 / V160
    Contrast ratio 800 to 1
    Touch Type 10 TP Pcap 10ms
    Treatment Non-glare

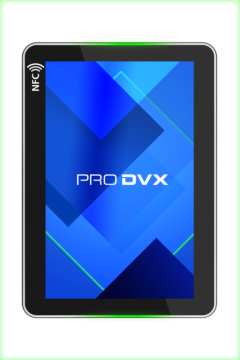

    Convenience Landscape,Portrait,Table Mode,Flushmount
    Operation hours 24h / 7d
    Chipset Cortex A55, 2.0 GHz, 4-Core
    CPU RK3568
    GPU Mali-G52
    Cooling Fanless
    System memory 4 GB DDR4 SDRAM
    Video input N.A.
    Video out Yes, HDMI out
    Video resolution 1280 x 800
    Internal storage 16 GB eMMC Flash
    External storage SD-Card Slot (door)
    Card slot SD
    OS Android 12
    LED Light Bar 2 sided LED bar (RGB)

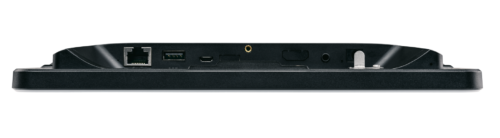

    I/O Ports 12 V DC-IN,3.5 mm audio-out,USB 2.0,RJ45,GPIO,Micro-USB,3x Pogo pin,HDMI out
    Network LAN RJ45 10/100/1000 Mbps LAN
    WiFi 802.11 a/b/g/n/ac
    Bluetooth 5
    Power over Ethernet (PoE) IEEE 802.3at (PoE+)
    Integrated NFC Integrated NFC reader (NXP PN553)
    Camera via PoGo & USB
    Video support H.264,MP4,MPG,MPEG2,MPEG4
    Audio support AAC,ASF,MP2,OGG,WAV,WMA
    Photo support JPG,JPEG,PNG,BMP,GIF
    Microphone YES
    Speakers 2 x 2 W
    Audio Jack Output 3.5mm YES
    Housing ABS+PC (Macrolon)
    Color Black
    Weight 650 g
    Dimensions 255,3 x 181 x 26,7 mm

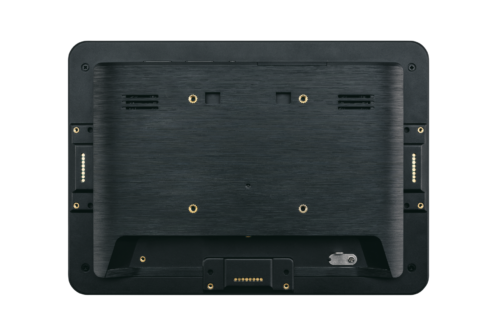

    Mounting / VESA VESA 75
    Power Supply 12 V / 2 A (EU, UK, US)
    Power Supply Included? No
    Power Usage 10 ~ 23 Watt
    Pogo Pins 3x (bottom/left/right)
    OSD Language Multi OSD language
    Clock Battery (for RTC) CR1220 Lithium metal, non rechargeable
    Storage Temp -10~55 degrees C
    Working Temp 0 ~ 40 degrees C
    Storage/Working Humidity 10 ~ 90 % non-condensing
    MTBF 50,000 hours demonstrated
    Standard Warranty 3 years
    Certifications UKCA, CE, FCC, RoHS, REACH
    SKU 5010630
