APPC-10SLBN (RK3288)
SKU: 5010105

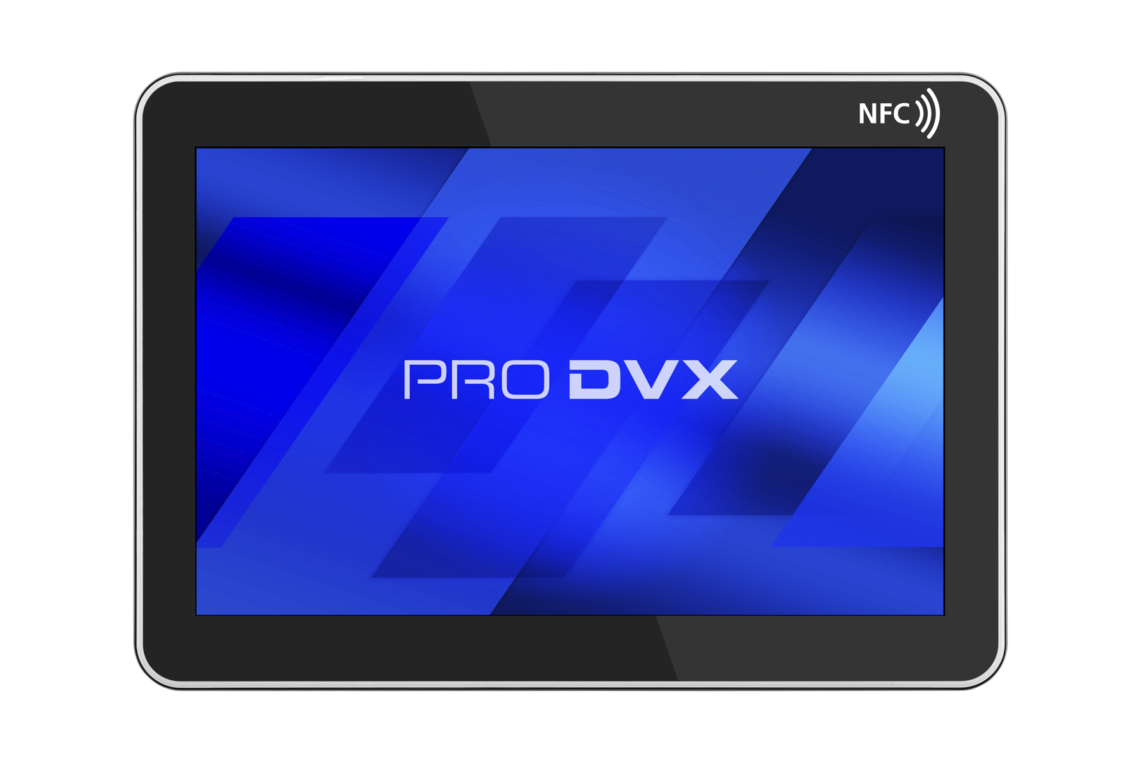

The ProDVX APPC-10SLBN is a Commercial Grade 10.1 inch Android Panel PC with Power over Ethernet (PoE), Integrated NFC Module, and Surround LED Status Light Bar (Full RGB). With its Surround LED Bar it is the ideal solution for Room Booking, Room Signage and Access Control. This device can be connected through RJ45 LAN, WiFi, Bluetooth and contains an option to schedule reboot or shut down. The APPC-10SLBN Android Panel PC standard comes with Android 9 (or optional Linux) and has a projected capacitive touch display and plastic housing. Optional accessories are a 1D/2D Barcode Scanner and Camera.
Panel
Panel type | TFT LCD IPS |
Resolution | 1280 x 800 |
Aspect ratio | 16:10 wide |
Backlight | Edge-LED backlight |
Brightness | 500 cd/m2 |
Viewing angle | H 160° / V 160° |
Contrast ratio | 800 : 1 |
Touch Type | 10 point touch projected capacitive |
Convenience | Landscape,Portrait,Table Mode |
Operation hours | 24/7 |
System
CPU | Cortex A17, Quad Core, RK3288 |
GPU | MALI T764 / 3D Graphic Engine (4K) |
Cooling | Fanless |
System memory | 2 GB DDR3 SDRAM |
Internal storage | 16 GB eMMC Flash |
External storage | SD-Card Slot (door) |
Card slot | SD |
OS | Android 9 (optional Linux) |
LED Light Bar | Surround LED Bar (full RGB) |
I/O Ports | 12 V DC-IN,3.5 mm audio-out,Micro-USB,RJ45,HDMI out,USB 2.0,GPIO |
Network LAN RJ45 | 10/100/1000 Mbps LAN |
WiFi | 802.11 a/b/g/n |
Bluetooth | BT 4.2 |
Power over Ethernet (PoE) | IEEE 802.3at (PoE+) |
Integrated NFC | Integrated NFC reader (NXP PN553) |
Camera | Optional accessory |
Video/Audio
Video support | 3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS |
Audio support | AAC,ASF,MP2,OGG,WAV,WMA |
Photo support | JPG,JPEG,PNG,BMP,GIF |
Microphone | YES |
Speakers | 2 x 2 W |
Audio Jack Output 3.5mm | YES |
Physical
Housing | Plastic |
Color | Black |
Weight | 650 g |
Dimensions | 255,3 x 181 x 26,7 mm |
Mounting / VESA | VESA 75 |
Power Supply | 12 V / 2 A (EU, UK, US) |
Power Supply Included? | No |
Power Usage | 10 ~ 20 Watt |
Pogo Pins | YES (bottom/left/right) |
Other
OSD Language | Multi OSD language |
Clock Battery (for RTC) | CR1220 - Lithium‐metal non‐rechargeable coin |
Storage Temp | ‐10 ~ 55 degrees C |
Working Temp | 0 ~ 40 degrees C |
Storage/Working Humidity | 10 ~ 90 % non-condensing |
MTBF | 50,000 hours demonstrated |
Standard Warranty | 3 years |
Certifications | FCC, CE, RoHS |
SKU | 5010105 |
