SKU: 5007550
  • 7" Android Panel PC
  • Power over Ethernet+
  • 2-sided LED Bar

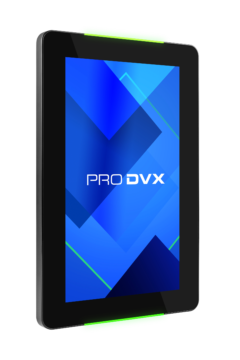

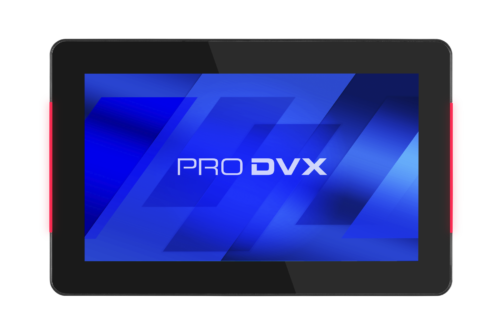

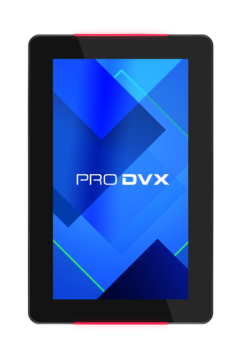

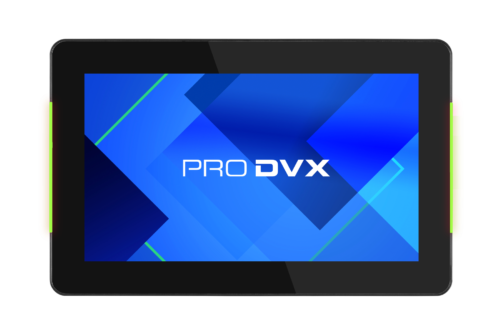

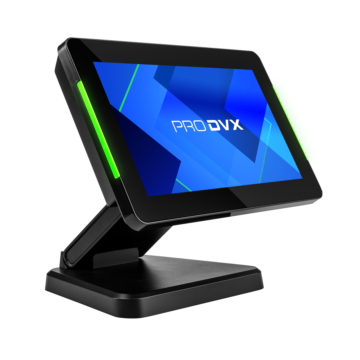

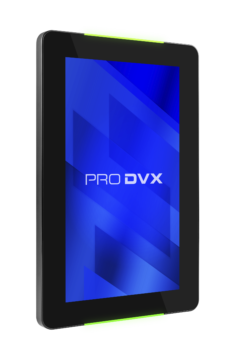

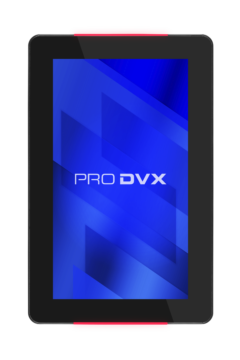

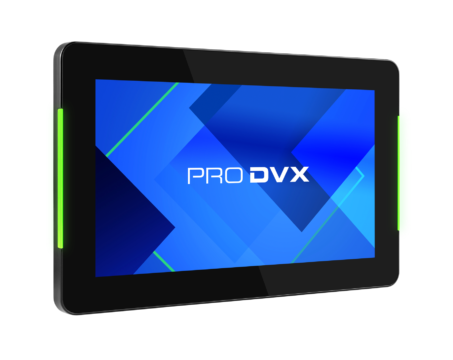

  • The APPC-7XPL (R23-7261) is a 7-inch Android Panel PC running on Android 12. Powered by the quad-core Cortex-A55 CPU and Mali-G52 GPU (RK3568), this device ensures seamless operation and advanced graphical capabilities. With 4GB RAM and 16GB storage, multitasking becomes efficient, while IEEE 802.3at PoE+ support streamlines power and connectivity. Installation is a breeze with VESA mounting capability and a single PoE+ Ethernet cable, eliminating wiring complexities. Connectivity is crucial, offering various I/O ports for peripheral devices, making it ideal for retail, corporate, and industrial settings. The 7-inch touchscreen interface, driven by Android, ensures intuitive navigation, complemented by dual-sided RGB LED status lights. This Android Panel PC supports 10-point PCAP touch functionality and has received a non-glare treatment for enhanced visibility.
    Panel type TFT LCD
    Resolution 1024 x 600
    Aspect ratio 17:10 wide
    Backlight Edge-LED backlight
    Brightness 300 cd/m2
    Viewing angle H140 / V130
    Contrast ratio 800 to 1
    Touch Type 10 TP Pcap 10ms
    Treatment Non-glare
    Convenience Landscape,Portrait,Table Mode,Flushmount
    Operation hours 24h / 7d
    Chipset Cortex A55, 2.0 GHz, 4-Core
    CPU RK3568 (Quad-core ARM Cortex-A55)
    GPU Mali-G52-2EE
    Cooling Fanless
    System memory 4 GB DDR4 SDRAM
    Video input N.A.
    Video out N.A.
    Video resolution 1024 x 600
    Internal storage 16GB eMMC
    External storage MicroSD-Card Slot (door)
    Card slot miniSD
    OS Android 12
    LED Light Bar 2 sided LED bar (RGB)
    I/O Ports 12 V DC-IN,1x Pogo pin,Combo Jack,USB 2.0,Micro-USB,Ethernet (RJ45)
    Network LAN RJ45 10/100/1000 Mbps LAN
    WiFi 802.11 a/b/g/n/ac
    Bluetooth 5
    Power over Ethernet (PoE) IEEE 802.3at (PoE+)
    Integrated NFC via PoGo & USB
    Camera via PoGo & USB
    Video support MPEG2,MPEG4,H.264,MP4,MPG
    Audio support MP2,WMA,WAV,AAC,OGG,ASF,MP3
    Photo support JPG,JPEG,PNG,BMP,GIF
    Microphone YES
    Speakers 2 x 1 W
    Audio Jack Output 3.5mm YES
    Housing ABS+PC (Macrolon)
    Color Black
    Weight 360 g
    Dimensions 188,1 x 120,3 x 25,2
    Mounting / VESA VESA 75
    Power Supply 12 V / 2 A
    Power Supply Included? Optional accessory
    Power Usage 6 ~ 23 Watt
    Pogo Pins 1x (bottom)
    OSD Language Multi OSD language
    Clock Battery (for RTC) CR1220 Lithium metal, non rechargeable
    Storage Temp -10~55 degrees C
    Working Temp 0 ~ 40 degrees C
    Storage/Working Humidity 0 ~ 95% non-condensing
    MTBF 35,000 hours demonstrated
    Standard Warranty 3 years
    Certifications UKCA, CE, FCC, RoHS, REACH
    SKU 5007550
