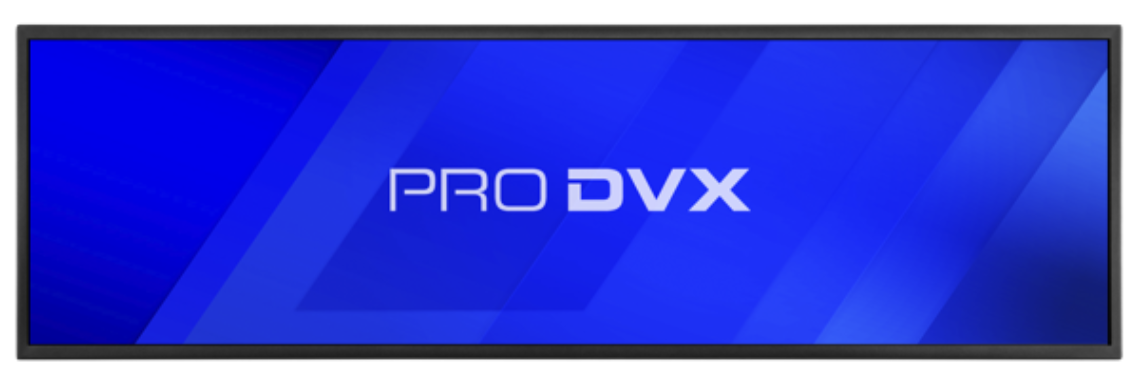

UW-37
The UtraWide Signage Displays by ProDVX are custom designed and manufactured All-In One Displays with Embedded ARM processor (SOC) for commercial continuous (24/7) use. The ultimate solution for your Digital Signage, Menuboard, Queuing, Wayfinding and many more applications.
Features:
• All In One Android SOC Signage Display
• No batteries, powered through power cable
• Unique Ultra Wide, Wide Angle LCD Monitor
• Cortex A17, 1.6 GHz, Quad Core (RK3288)
• RJ45 LAN / WiFi / Bluetooth
• Special Mounting Plate (included)
• Commercial Grade (24/7 usage)
• Android 6
Specifications
Panel
| Resolution | 1920 x 540 |
| Aspect Ratio | 32:3 Wide |
| Backlight | LED Side light type |
| Brightness | 700 cd/m2 |
| Viewing Angle | H 178° / V 178° |
| Contrast Ratio | 4000 : 1 |
| Touch Type | N/A |
System
| CPU | Cortex A17, 1.6 GHz, 4-Core, RK3288 |
| GPU | MALI T764 / 3D Graphic Engine (4K) |
| System Memory | 2 GB DDR3 SDRAM |
| Internal Storage | 16 GB eMMC Flash |
| External Storage | SD-Card Slot (hidden) |
| OS | Android 6 |
| LED Light Bar | N/A |
| I/O Ports | Micro-USB / USB / 3.5 mm audio-out / RJ45 |
| Network LAN RJ45 | 10/100 Mbps LAN |
| WiFi / Bluetooth | 802.11 b/g/n / BT 4.0 |
| Power over Ethernet (PoE) | N/A |
| Camera | N/A |
Video/Audio
| Video Support | MKV, TS, FLV, AVI, VOB, MPG, DAT, ASF, RM, MOV, 3GP, MP4, WMV |
| Audio Support | MP2, WMA, WAV, AAC, OGG, ASF |
| Photo Support | JPG, JPEG, PNG, BMP, GIF |
| Speakers | N/A |
| Audio Jack Output 3.5mm | N/A |
Physical
| Housing | Metal |
| Color | Black |
| Weight | 9500 g |
| Dimensions | 902 x 285 x 39 mm |
| Mounting / VESA | VESA unique patern |
| Power Supply | AC 100 V - 240 V |
| Power Usage | 12 ~ 26 Watt |
Other
| Clock Battery (for RTC) | Lithium ion non rechargeable coin |
| Storage Temp | -15 ~ 65 degrees C |
| Working Temp | -10 ~ 50 degrees C |
| Storage/Working Humidity | 10 ~ 90% non-condensing |
| MTBF | 45,000 hours demonstrated |
| Standard Warranty | 2 years |
| Certifications | FCC, CE, & RoHS |
