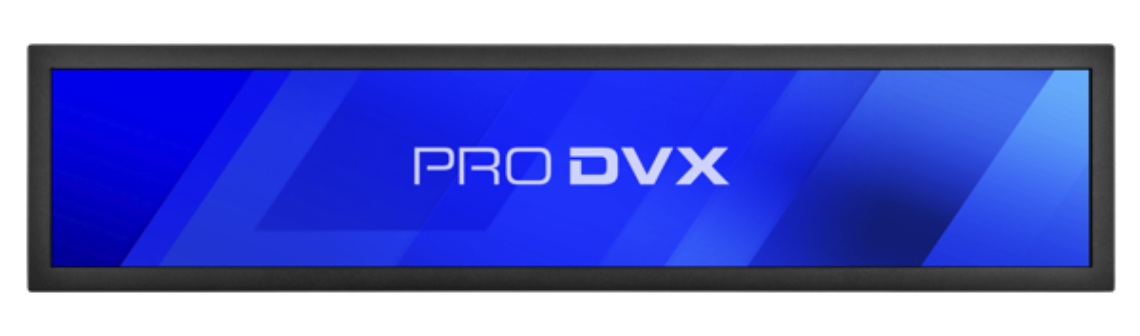

UltraWide Signage Displays


The UtraWide Signage Displays by ProDVX are custom designed and manufactured All-In One Displays with Embedded ARM processor (SOC) for commercial continuous (24/7) use. The ultimate solution for your Digital Signage, Menuboard, Queuing, Wayfinding and many more applications.


• All In One Android SOC Signage Display
• No batteries, powered through power cable
• Unique Ultra Wide, Wide Angle LCD Monitor
• Cortex A17, 1.6 GHz, Quad Core (RK3288)
• RJ45 LAN / WiFi / Bluetooth
• Special Mounting Plate (included)
• Commercial Grade (24/7 usage)
• Android 6



Resolution 1920 x 360
Aspect Ratio 16:3 wide
Backlight LED Side light type
Brightness 700 cd/m2
Viewing Angle H 178° / V 178°
Contrast Ratio 1200 : 1
Touch Type N/A


CPU Cortex A17, 1.6 GHz, 4-Core, RK3288
GPU MALI T764 / 3D Graphic Engine (4K)
System Memory 2 GB DDR3 SDRAM
Internal Storage 16 GB eMMC Flash
External Storage SD-Card Slot (hidden)
OS Android 6
LED Light Bar N/A
I/O Ports Micro-USB / USB / 3.5 mm audio-out / RJ45 / HDMI
Network LAN RJ45 10/100 Mbps LAN
WiFi / Bluetooth 802.11 b/g/n / BT 4.0
Power over Ethernet (PoE) N/A
Camera N/A


Video Support MKV, TS, FLV, AVI, VOB, MPG, DAT, ASF, RM, MOV, 3GP, MP4, WMV
Audio Support MP2, WMA, WAV, AAC, OGG, ASF
Photo Support JPG, JPEG, PNG, BMP, GIF
Speakers N/A
Audio Jack Output 3.5mm N/A


Housing Metal
Color Black
Weight 4550 g
Dimensions 736 x 168 x 30 mm
Mounting / VESA VESA unique patern
Power Supply 12 V / 4 A
Power Usage 11 ~ 19 Watt


Clock Battery (for RTC) Lithium ion non rechargeable coin
Storage Temp -15 ~ 65 degrees C
Working Temp -10 ~ 50 degrees C
Storage/Working Humidity 10 ~ 90% non-condensing
MTBF 45,000 hours demonstrated
Standard Warranty 2 years
Certifications FCC, CE, CCC & RoHS
