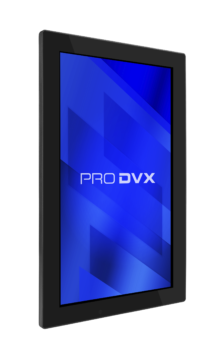

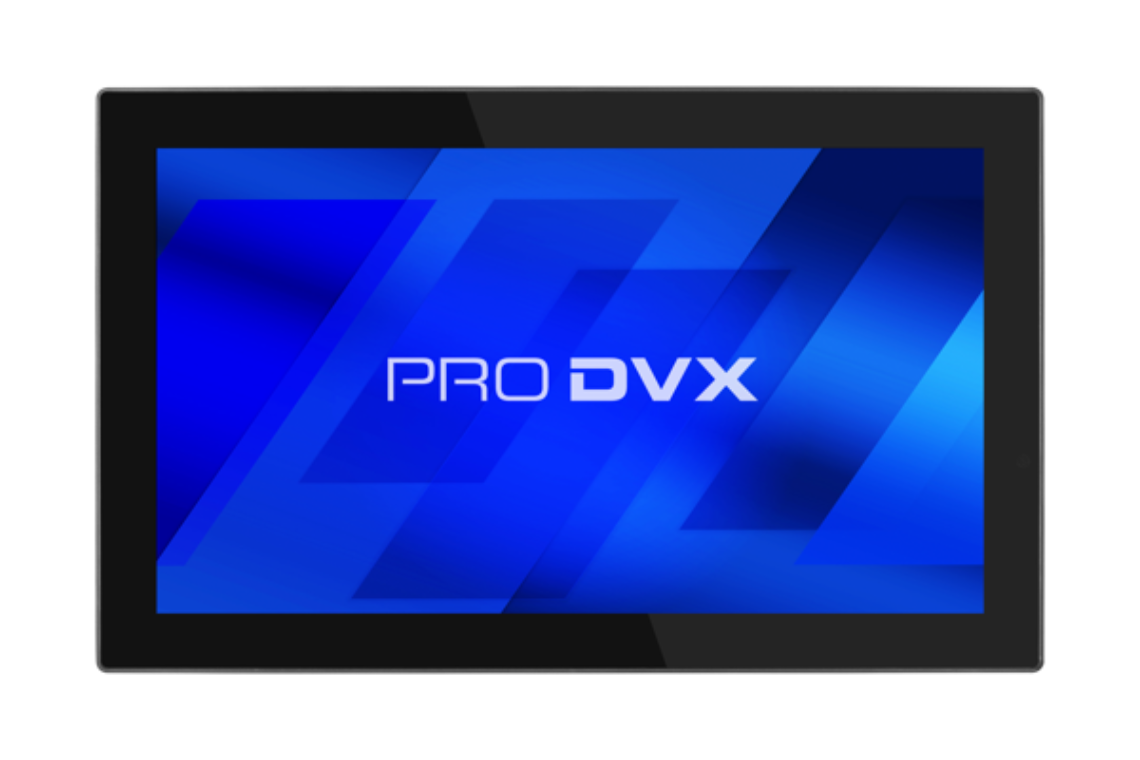

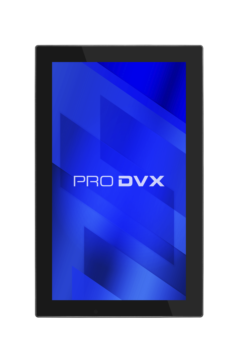

SD-18 | 18" Signage Display

  • 18.5" Signage Display
  • Embedded FHD Media Player
  • HDMI video input
  • The ProDVX SD-18 is a professional Signage Display. The ProDVX SD-18 comes with an embedded FHD Media Player. The content can be connected through the HDMI input and the unit has a SD, MMC, and MS Card Slot. This 18.5" Commercial Grade Signage Display standard comes with an Auto Video Play & Loop option and has plastic housing. This device supports multiple video, audio and photo sources and can be mounted through a VESA mount. The SD-18 standard comes with speakers and an audio jack output 3.5 mm.
    Panel
    Panel type TFT LCD IPS
    Resolution 1366 x 768
    Aspect ratio 16:9 wide
    Backlight Edge-LED backlight
    Brightness 250 cd/m2
    Viewing angle H 170° / V 170°
    Contrast ratio 800 : 1
    Touch Type N/A
    Convenience Landscape,Portrait
    Gyro N/A
    Operation hours 24/7
    System
    Monitor YES
    Video input HDMI
    Video resolution 1920 x 1080
    Internal media player YES
    Card slot SD/MMC/MS
    USB Host 1 x
    I/O Ports 12 V DC-IN,3.5 mm audio-in,3.5 mm audio-out,USB 2.0,HDMI-in 1.4
    Auto Video Play & Loop YES
    Video/Audio
    Video support AVI,H.264,MKV,MOV,MPG,MPEG2,MPEG4,RM,RMVB,TS etc.
    Audio support AAC,MP3
    Photo support JPEG,BMP
    Speakers 2 x 2 W
    Audio Jack Output 3.5mm YES
    Physical
    Housing Plastic
    Color Black
    Weight 3000 g
    Dimensions 468 x 288 x 37,5 mm
    Mounting / VESA VESA 100
    Power Supply 12 V / 2 A (EU, UK, US)
    Power Supply Included? Yes
    Power Usage 12 Watt
    Other
    OSD Language Multi OSD language
    Real time clock (RTC) YES
    Calendar YES
    Remote control YES
    Working Temp 0 ~ 40 degrees C
    Standard Warranty 2 years
    Certifications CE, RoHS
