IPPC-24

  • 24" Intel Panel PC
  • Windows 10 IoT Enterprise LTSC

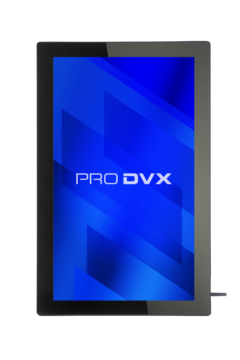

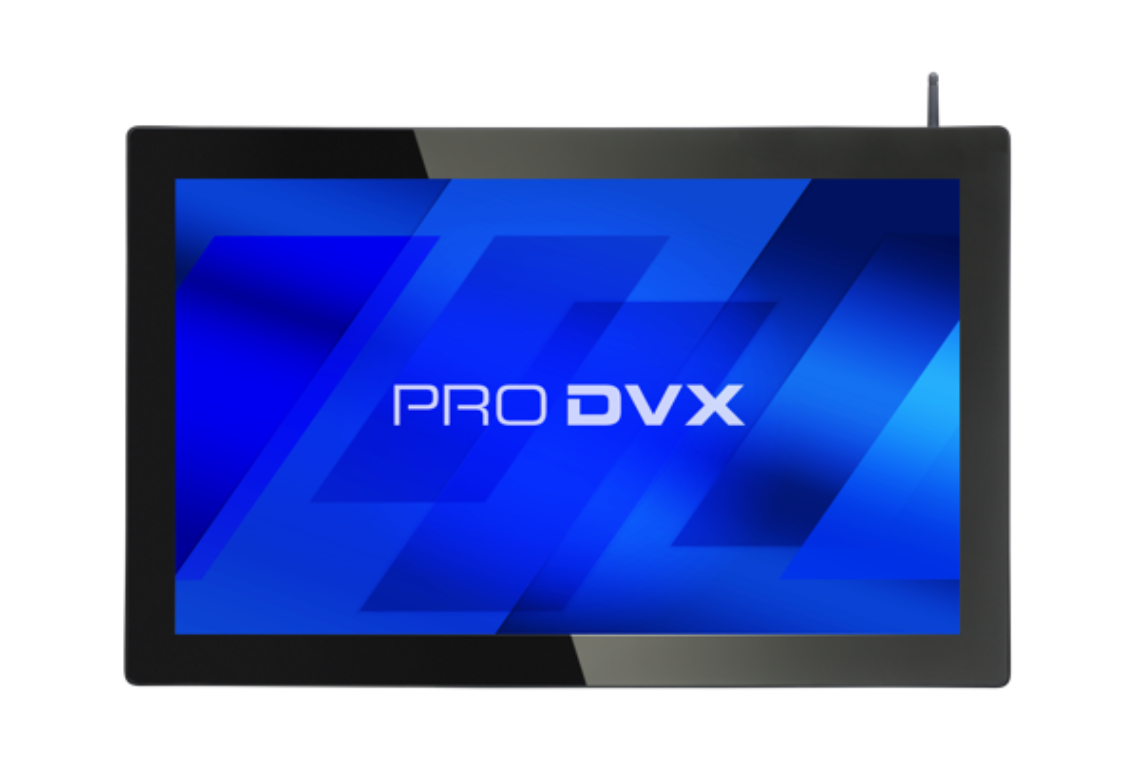

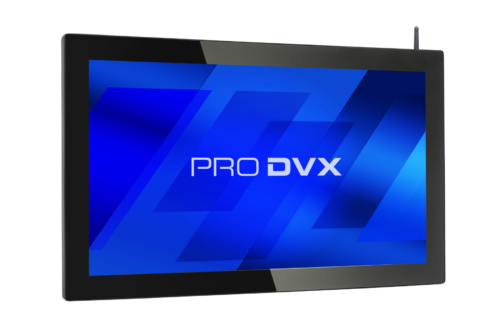

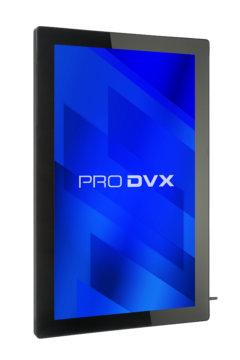

  • The ProDVX IPPC-24 is an Intel Panel PC with a 23.6" Touch Display. The ProDVX IPPC-24 standard comes with an Intel Pentium N3710. This device can be connected through RJ45 LAN, WiFi, Bluetooth and is fanless due to passive cooling. This Intel SOC Touch Display has a projected capacitive touch display in metal housing. It can be mounted using the VESA 100 brackets. Optional Pogo pin accessories include a 1D-2D Barcode Scanner, NFC Module and Camera. This product requires an additional Windows 10 IoT Enterprise LTSC license.
    Panel
    Panel type TFT LCD IPS
    Resolution 1920 x 1080
    Aspect ratio 16:9 wide
    Backlight Edge-LED backlight
    Brightness 250 cd/m2
    Vieweing angle H 178° / V 178°
    Contrast ratio 1000 : 1
    Touch Type 10 point touch projected capacitive
    Convenience Landscape,Portrait,Table Mode
    Gyro N/A
    System
    Processor Pentium N3160
    CPU Intel® Pentium® N3710
    GPU Intel HD Graphics
    Cooling Fanless
    System memory 4 GB DDR3L 1600
    Video out mini-hdmi
    Internal storage 64 GB M.2 SSD
    External storage SD-Card Slot (door)
    Storage socket 2 SD-Card Slot (door)
    Card slot SD
    OS Windows 10 (optional Linux)
    Additional Windows license required Yes, at a cost
    LED Light Bar N/A
    I/O Ports 12 V DC-IN,2x COM (RJ45),3.5 mm audio-out,Ethernet (RJ45),Micro-USB,S/PDIF,mini-hdmi-out,2x USB 3.0
    Network LAN RJ45 10/100/1000 Mbps LAN
    WiFi 802.11 b/g/n SiP wireless module (external antenna)
    Bluetooth BT 4.0
    Power over Ethernet (PoE) N/A
    Integrated NFC Optional accessory
    Camera Optional accessory
    Video/Audio
    Microphone N/A
    Speakers 2 x 3 W
    Audio Jack Output 3.5mm YES
    Physical
    Housing Metal
    Color Black
    Weight 7500 g
    Dimensions 576 x 345 x 43 mm

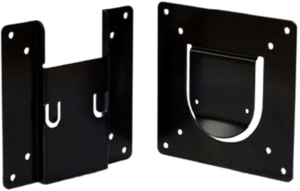

    Mounting / VESA VESA 100x100
    Power Supply 12 V / 5 A
    Power Supply Included? Yes
    Power Usage 11 ~ 26 Watt
    Pogo Pins YES (bottom/left)
    Other
    OSD Language Multi OSD language
    Clock Battery (for RTC) CR2032 - Lithium‐metal non‐rechargeable coin
    Storage Temp ‐10 ~ 55 degrees C
    Working Temp 0 ~ 40 degrees C
    Storage/Working Humidity 10 ~ 90% non-condensing
    MTBF 50,000 hours demonstrated
    Standard Warranty 2 years
    Certifications FCC, CE, RoHS
