APPC-22EL

Integrated Android SOC Touch Displays

APPC-22EL

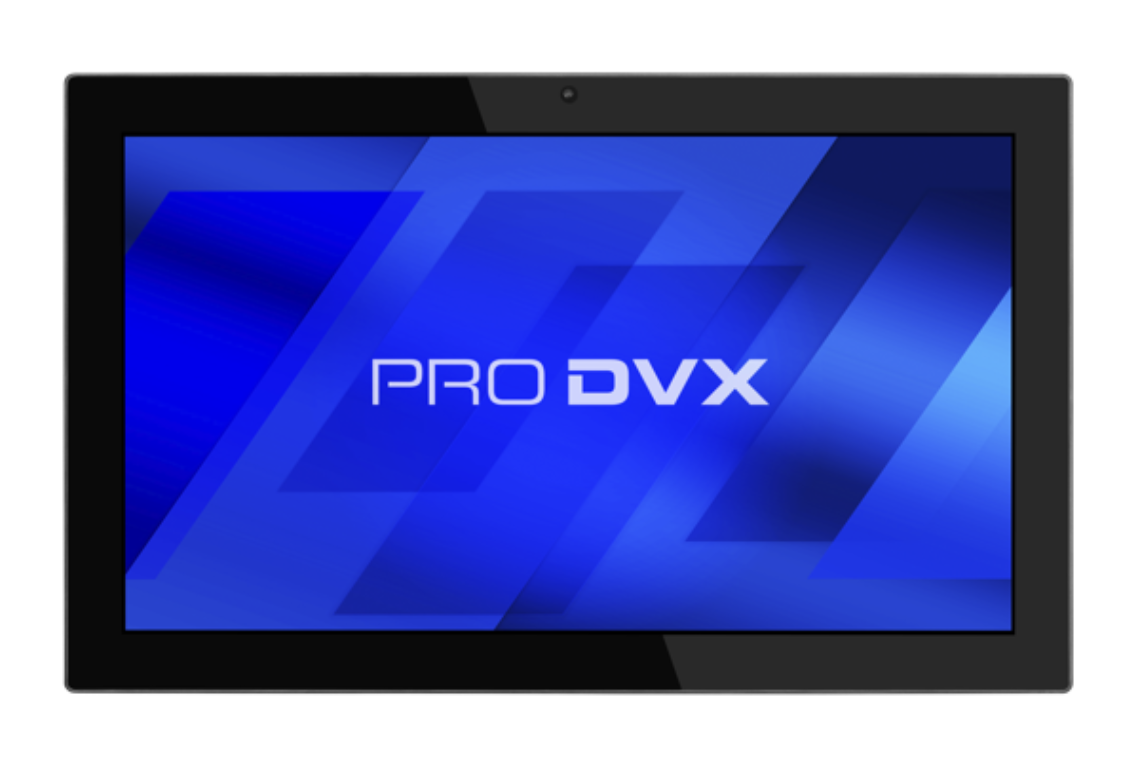

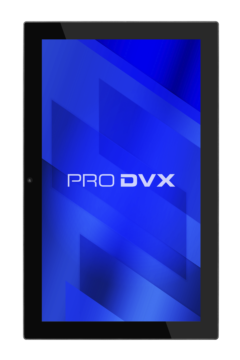

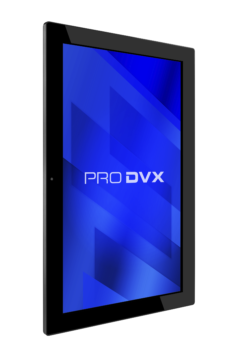

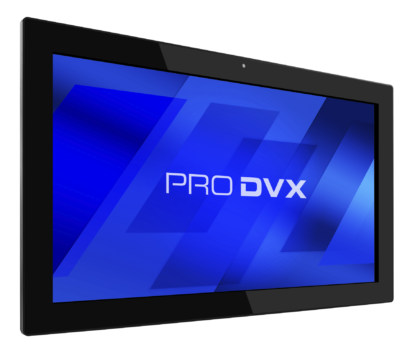

Commercial Grade 21.5" Android Panel PC (Tablet) with unique features. The Android Panel PC range is available form 7 inch up to 32 inch. The ultimate solution for your Interactive Digital Signage, Home Automation, Room Booking and many more applications. In Metal, Plastic and Open Frame enclosure. Various options including Power over Ethernet.

Features:

  • EL Entry Level Android SOC Touch Display
  • Commercial Grade (24/7 usage)
  • Full HD (1920 x 1080)
  • True Flat Projected Capacitive Multi-Touch
  • RJ45 LAN / WiFi / Bluetooth
  • VESA (100) Mountable
  • Cortex A17, 1.6 GHz, Quad Core (RK3288)
  • Android 6

Specifications

Panel

Resolution 1920 x 1080
Aspect Ratio 16:9 wide
Backlight LED Side light type
Brightness 250 cd/m2
Viewing Angle H 178° / V 178°
Contrast Ratio 1000 : 1
Touch Type 10 point touch projected capacitive

System

CPU Cortex A17, 1.6 GHz, 4-Core, RK3288
GPU MALI T764 / 3D Graphic Engine (4K)
System Memory 2 GB DDR3 SDRAM
Internal Storage 16 GB eMMC Flash
External Storage SD-Card Slot
OS Android 6
LED Light Bar N/A
I/O Ports Micro-USB / USB / 3.5 mm audio-out / RJ45 / 12V DC-IN
Network LAN RJ45 10/100 Mbps LAN
WiFi / Bluetooth 802.11 b/g/n / BT 4.0
Power over Ethernet (PoE) N/A
Camera 2 M/P front camera

Video/Audio

Video Support MKV, TS, FLV, AVI, VOB, MPG, DAT, ASF, RM, MOV, 3GP, MP4, WMV
Audio Support MP2, WMA, WAV, AAC, OGG, ASF
Photo Support JPG, JPEG, PNG, BMP, GIF
Microphone YES
Speakers 2 x 2 W
Audio Jack Output 3.5mm YES

Physical

Housing Plastic
Color Black
Weight 3600 g
Dimensions 538 x 331 x 37 mm
Mounting / VESA VESA 100
Power Supply 12 V / 3 A
Power Usage 10 ~ 20 Watt

Other

LED Light Status Bar N/A
Clock Battery (for RTC) Lithium ion non rechargeable coin
Storage Temp -10 ~ 60 degrees C
Working Temp 0 ~ 40 degrees C
Storage/Working Humidity 10 ~ 90% non-condensing
MTBF 45,000 hours demonstrated
Standard Warranty 2 years
Certifications FCC, CE, & RoHS
Optional Wall Mount WM-25
