Integrated Android SOC Touch Displays

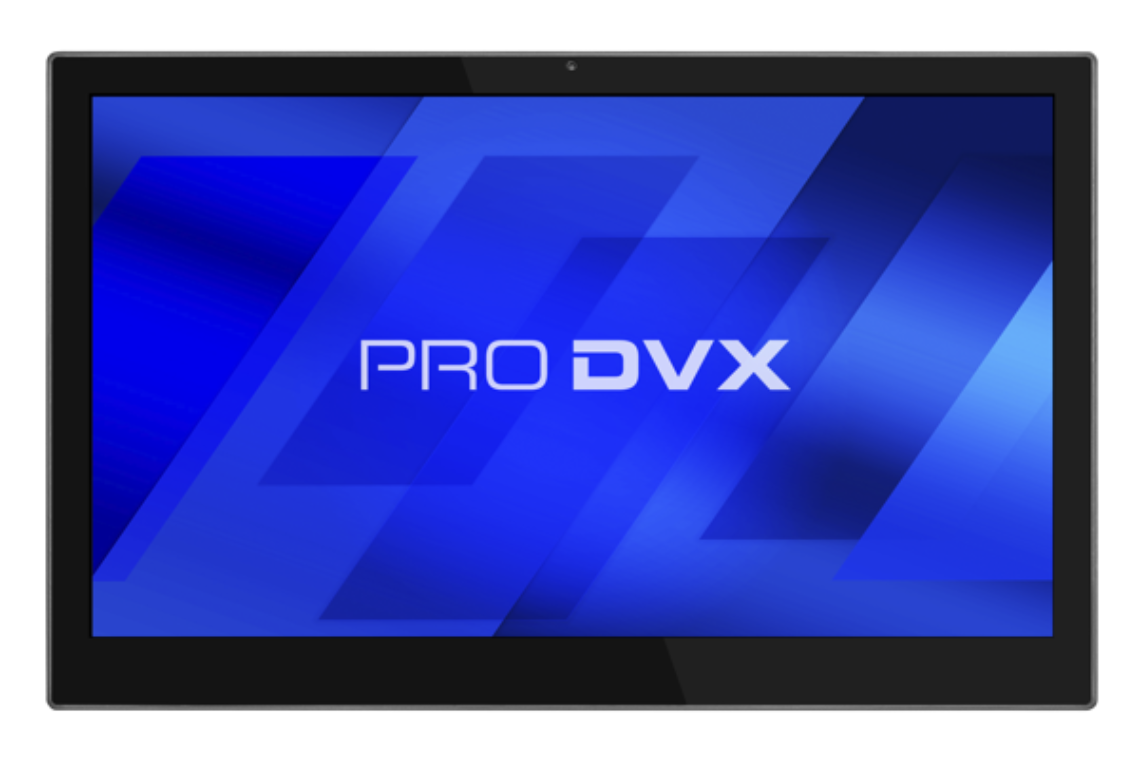

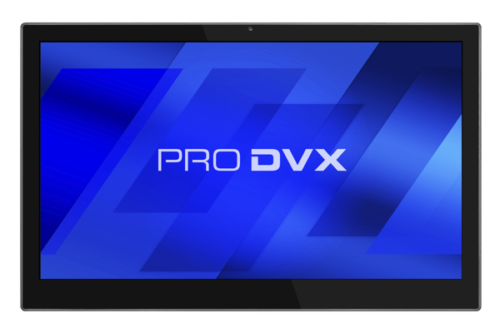

The ProDVX APPC-17EL is an Android Panel PC with a 17.3” Touch Display. The ProDVX APPC-17EL comes with Android 6. This device can be connected through RJ45 LAN, WiFi and Bluetooth. This Android SOC Touch Display has a projected capacitive touch display and plastic housing. This Entry Level display is part of the EL Series by ProDVX and standard comes with a 2MP camera, Mini USB, USB and HDMI I/O ports. Optional accessories are VESA mounting brackets.


  • EL Entry Level Android SOC Touch Display
  • No batteries, powered through power cable
  • True Flat Projected Capacitive Multi-Touch
  • Cortex A17, Quad Core, RK3288
  • RJ45 LAN / WiFi / Bluetooth / Camera
  • VESA (100) Mountable
  • Commercial Grade (24/7 usage)
  • Android 6



Resolution 1920 x 1080
Aspect Ratio 16:9 wide
Backlight LED Side light type
Brightness 250 cd/m2
Viewing Angle H 170° / V 170°
Contrast Ratio 800 : 1
Touch Type 10 point touch projected capacitive


CPU Cortex A17, Quad Core, RK3288
GPU MALI T764 / 3D Graphic Engine (4K)
System Memory 2 GB DDR3 SDRAM
Internal Storage 16 GB eMMC Flash
External Storage SD-Card Slot
OS Android 6
LED Light Bar N/A
I/O Ports Micro-USB / USB / 3.5 mm audio-out / RJ45 / 12V DC-IN
Network LAN RJ45 10/100 Mbps LAN
WiFi / Bluetooth 802.11 b/g/n / BT 4.0
Power over Ethernet (PoE) N/A
Camera 2 M/P front camera


Video Support MKV, TS, FLV, AVI, VOB, MPG, DAT, ASF, RM, MOV, 3GP, MP4, WMV
Audio Support MP2, WMA, WAV, AAC, OGG, ASF
Photo Support JPG, JPEG, PNG, BMP, GIF
Microphone YES
Speakers 2 x 2 W
Audio Jack Output 3.5mm YES


Housing Plastic
Color Black
Weight 1610 g
Dimensions 418 x 263 x 27 mm
Mounting / VESA VESA 100
Power Supply 12 V / 3 A
Power Usage 10 ~ 20 Watt


LED Light Status Bar N/A
Clock Battery (for RTC) Lithium ion non rechargeable coin
Storage Temp -10 ~ 60 degrees C
Working Temp 0 ~ 40 degrees C
Storage/Working Humidity 10 ~ 90% non-condensing
MTBF 45,000 hours demonstrated
Standard Warranty 2 years
Certifications FCC, CE, & RoHS
Optional Wall Mount WM-25
