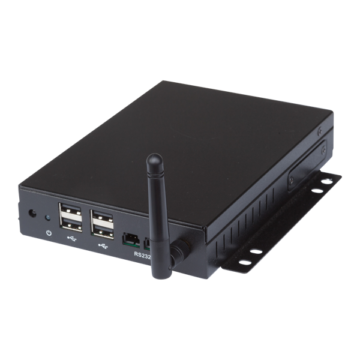

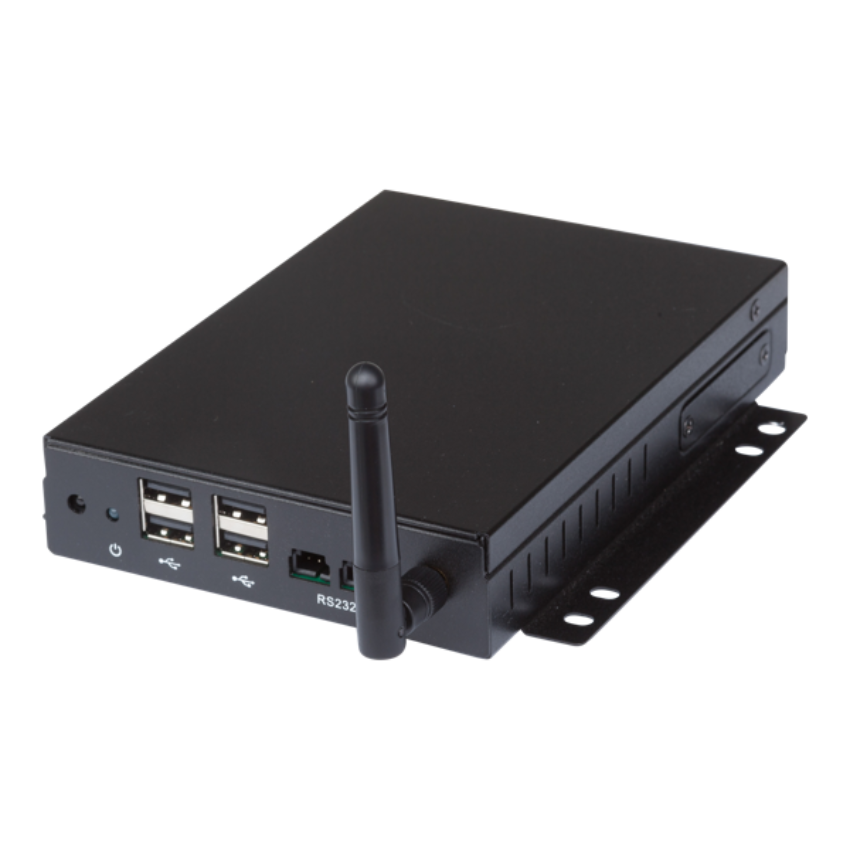

ABPC-543P
This is a legacy product and is no longer available. Contact us to help you find a replacement for this product.
With our Android Box PC you can reach your customers and have them interact with your brand in a way that is proven to increase sales and brand awareness. Our ABPC-543 comes with Android 5.1 and Power-over-Ethernet. Made of durable materials and built specifically for commercial use, ProDVX Devices have been developed to solve the problems found in commercial environments that consumer devices are not designed for.
System
| Chipset | Cortex A17, 1.6 GHz, 4-Core |
| GPU | MALI T764 / 3D Graphic Engine (4K) |
| Cooling | Fanless |
| System memory | 2 GB DDR3 SDRAM |
| Video out | HDMI |
| Internal storage | 8 GB eMMC Flash |
| Storage socket 2 | SD-Card Slot (door) |
| OS | Android 5.1 |
| I/O Ports | 12 V DC-IN,3.5 mm audio-out,HDMI,RJ45,2x RS232,S/PDIF |
| Network LAN RJ45 | 100/1000 Mbps LAN |
| WiFi | 802.11 b/g/n SiP wireless module |
| Bluetooth | BT 4.2 |
| Power over Ethernet (PoE) | IEEE 802.3at (PoE+) |
Physical
| Housing | Metal |
| Color | Black |
| Weight | 470 g |
| Dimensions | 155 x 130 x 31 mm |
| Mounting / VESA | VESA unique pattern |
| Power Supply | 12 V / 2 A (EU, UK, US) |
| Power Usage | 5 ~ 9 Watt |
Other
| Clock Battery (for RTC) | Lithium‐metal non‐rechargeable coin |
| Storage Temp | ‐10 ~ 55 degrees C |
| Working Temp | 0 ~ 40 degrees C |
| Storage/Working Humidity | 10 ~ 90 % non-condensing |
| MTBF | 45,000 hours demonstrated |
| Standard Warranty | 2 years |
| Certifications | FCC, CE, RoHS |
| SKU | 99108610.455 |
