PuKK Workspace
(R26-8281)
Art. No: 7031200

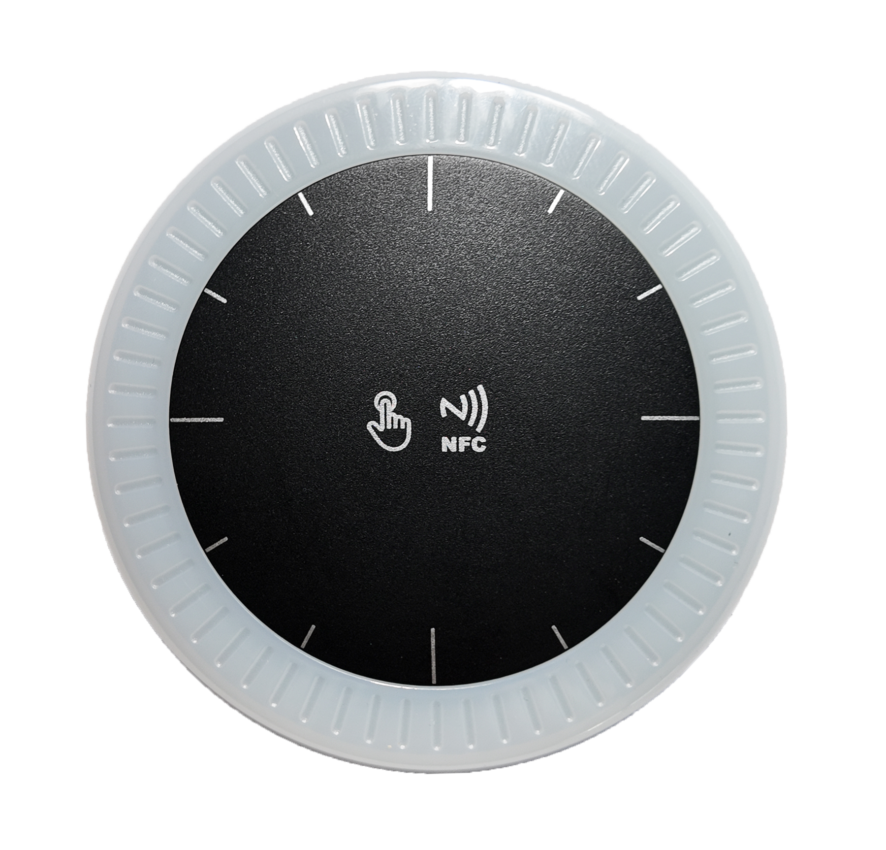

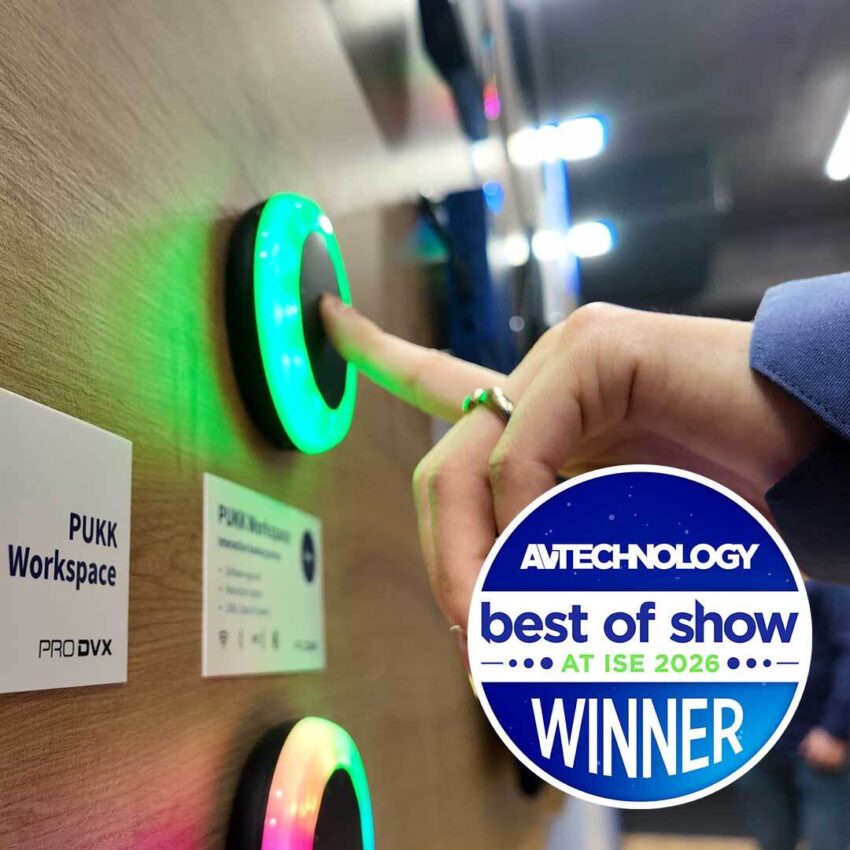

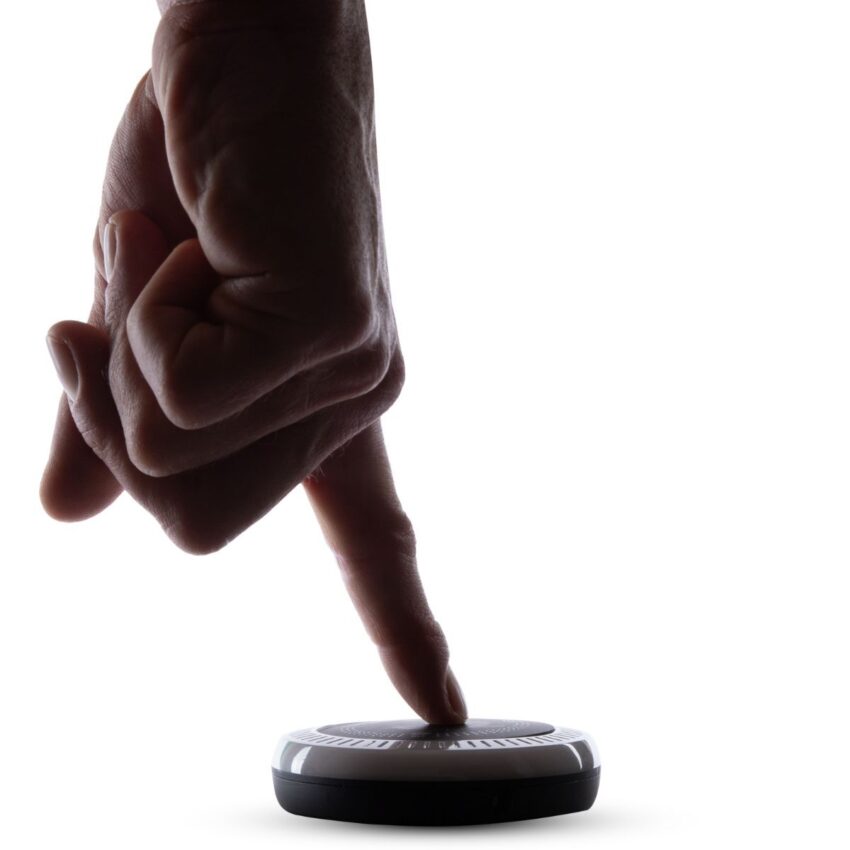

General description: The PuKK Workspace (R26-8281) is an award-winning interactive booking device. The device combines visual LED status indicators with physical interaction, enabling users to actively confirm bookings on location. With built-in Wi-Fi, Bluetooth, and a REST API, the PuKK Workspace integrates seamlessly into existing environments and software platforms. Its compact form factor (80 × 80 × 20.6 mm), simple USB-C power input, and integrated mounting holes for easy wall or surface mounting make installation quick and flexible. Ideal for workspace, healthcare, and hospitality applications, from desk booking and meeting room check-in to nurse-calling systems and housekeeping indicators.
Panel
| Convenience | Easy installation |
| Operation hours | 24h / 7d |
System
| Chipset | ESP-C3 |
| CPU | ESP32-C3 |
| Cooling | Fanless |
| Internal storage | N.A. |
| External storage | N.A. |
| OS | FreeRTOS (ESP-IDF) |

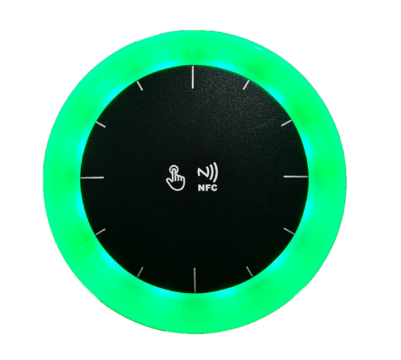

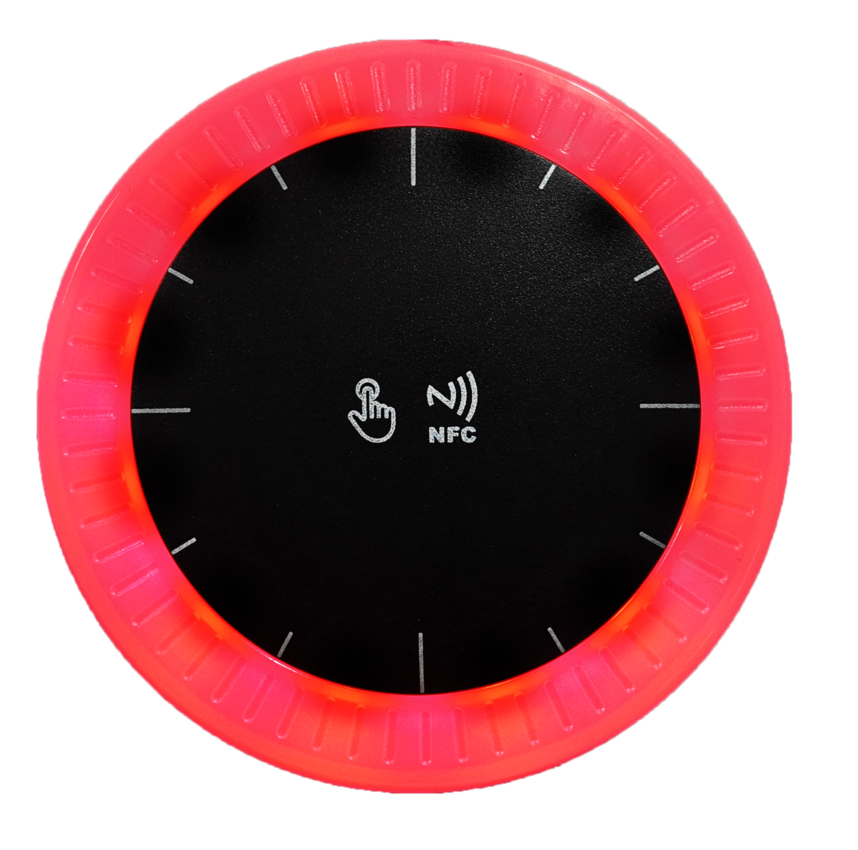

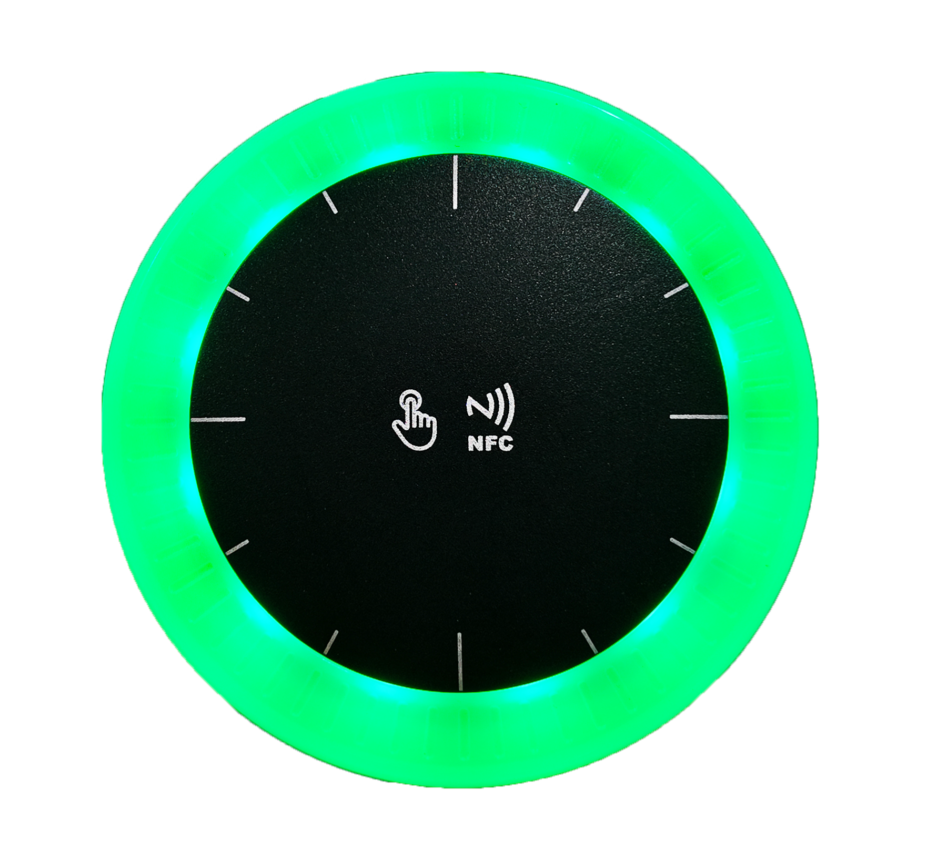

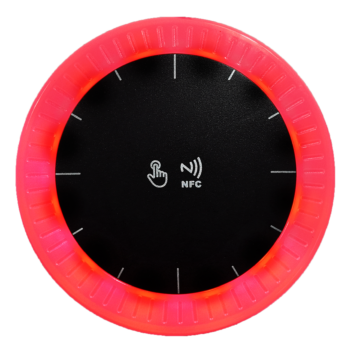

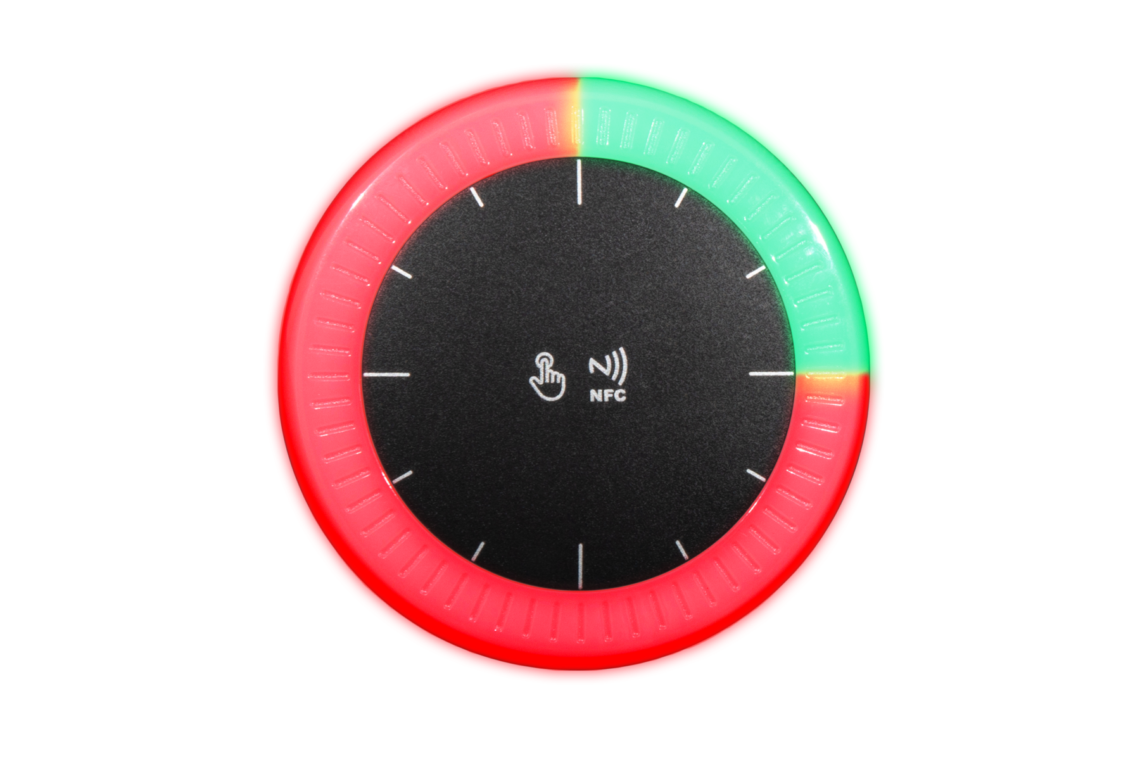

| LED Light Bar | Individually controlled Full RGB LED |
| I/O Ports | USB-C |
| Network LAN RJ45 | N.A |
| WiFi | 802.11 b/g/n |
| Bluetooth | BLE 5.0 |
| Power over Ethernet (PoE) | N.A. |

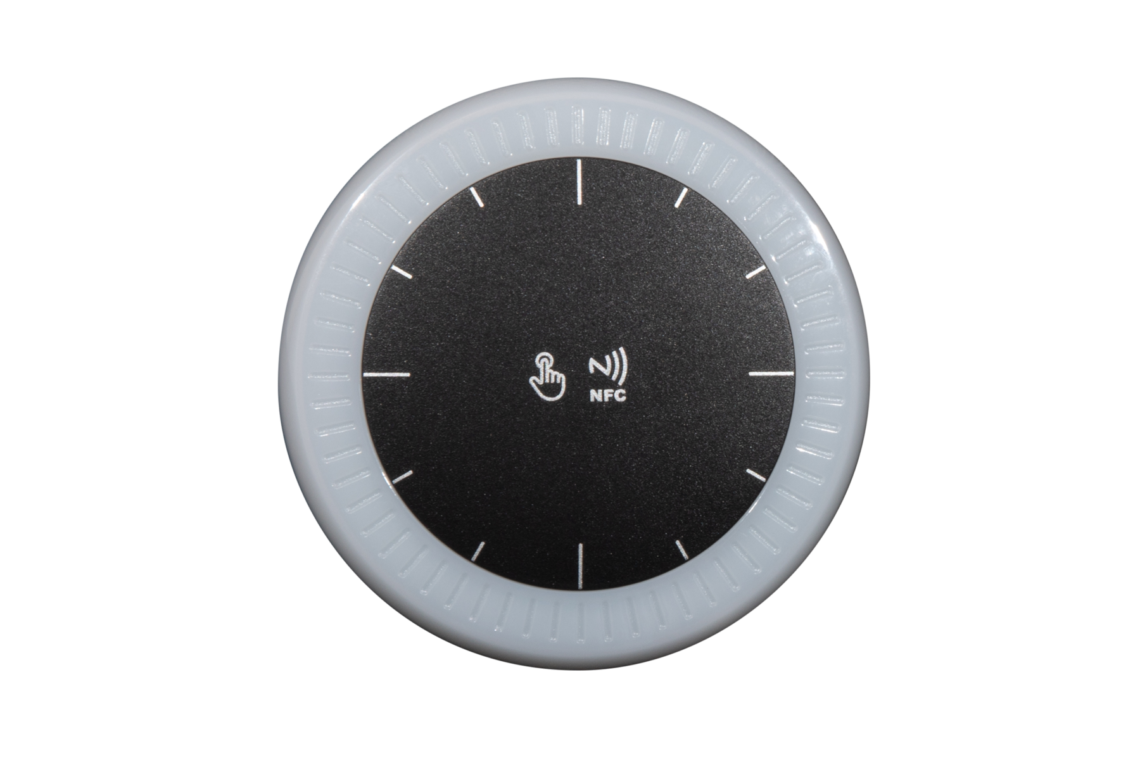

| Integrated NFC | YES (NXP PN7160) |
Video/Audio
| Microphone | N.A. |
Physical
| Housing | ABS+PC (Macrolon) |
| Color | Black |
| Weight | 70 g |

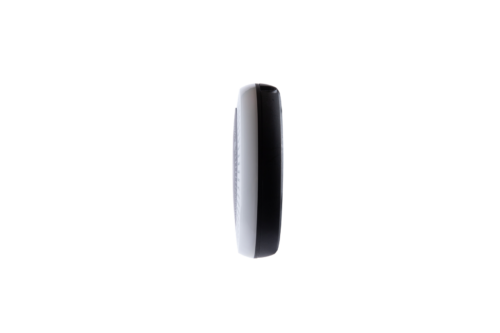

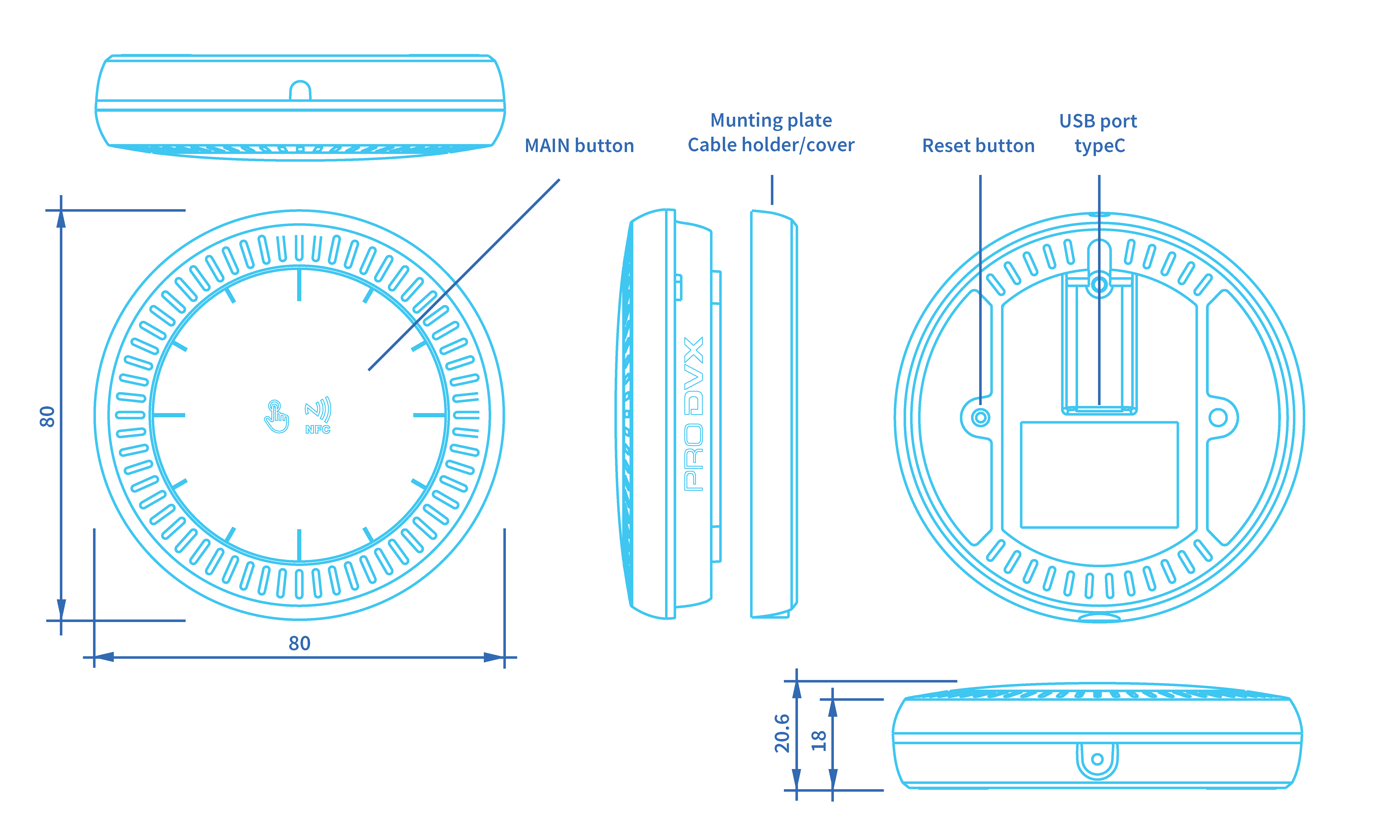

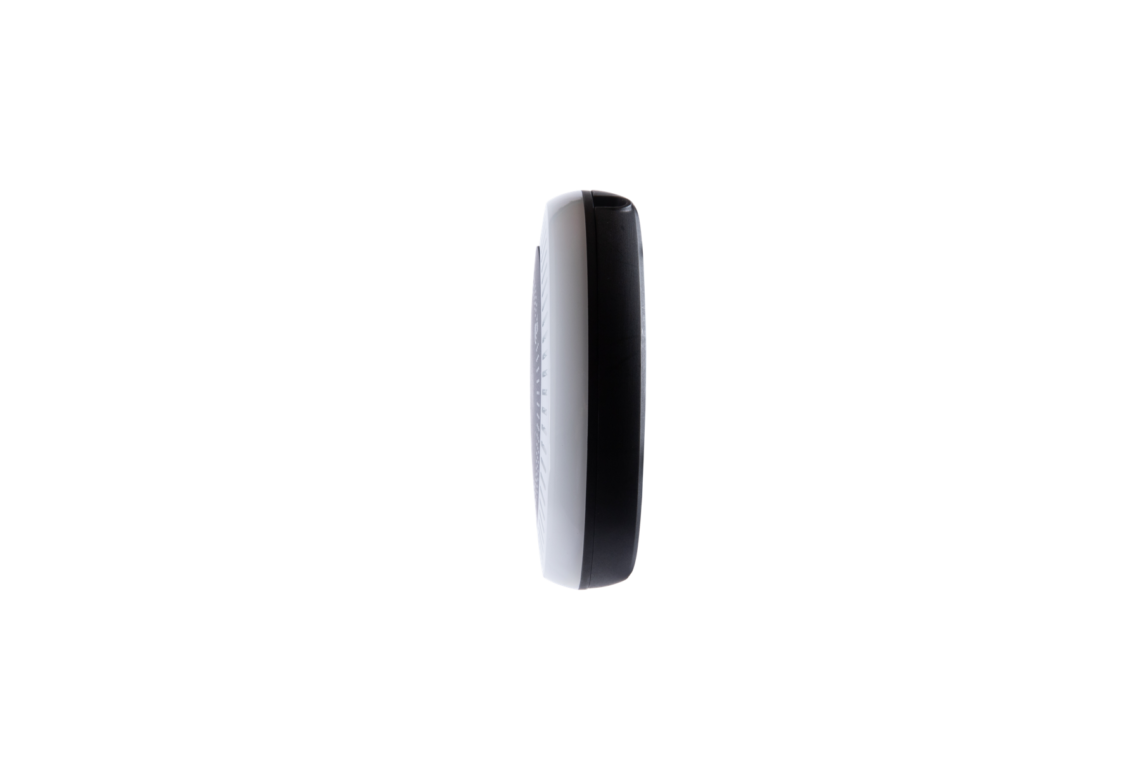

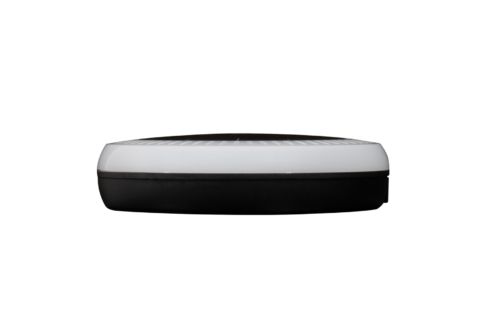

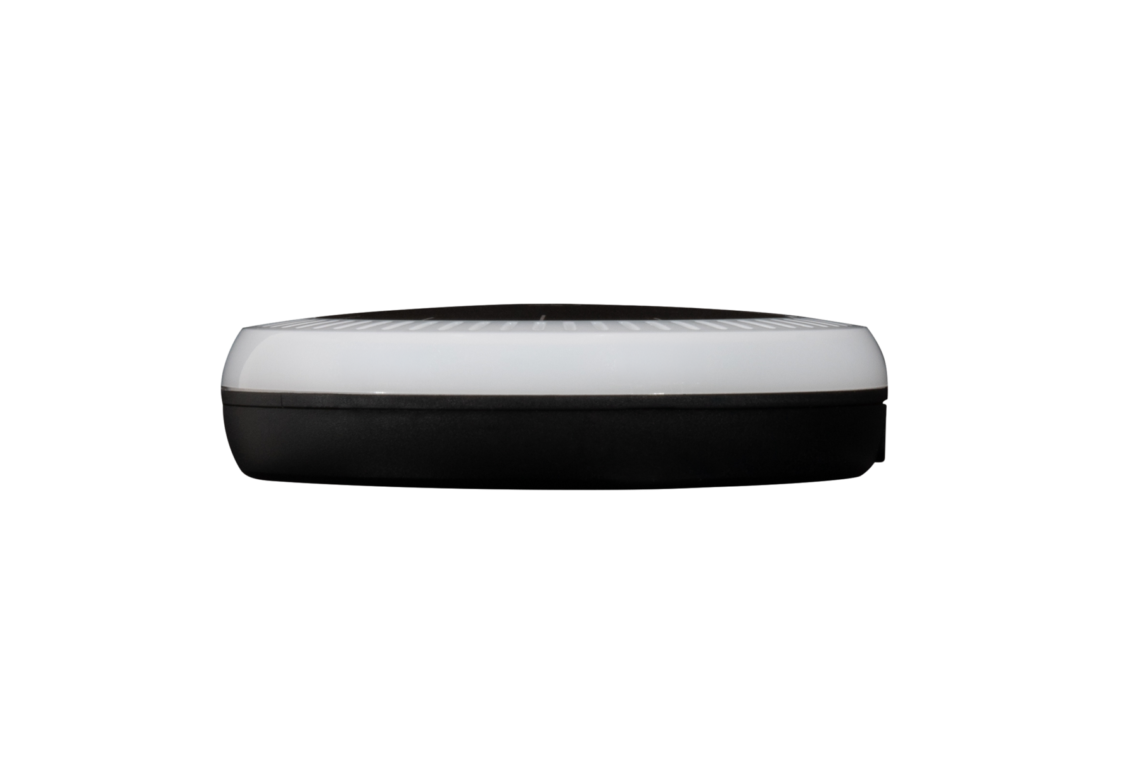

| Dimensions | 80 x 80 x 20.6 mm |

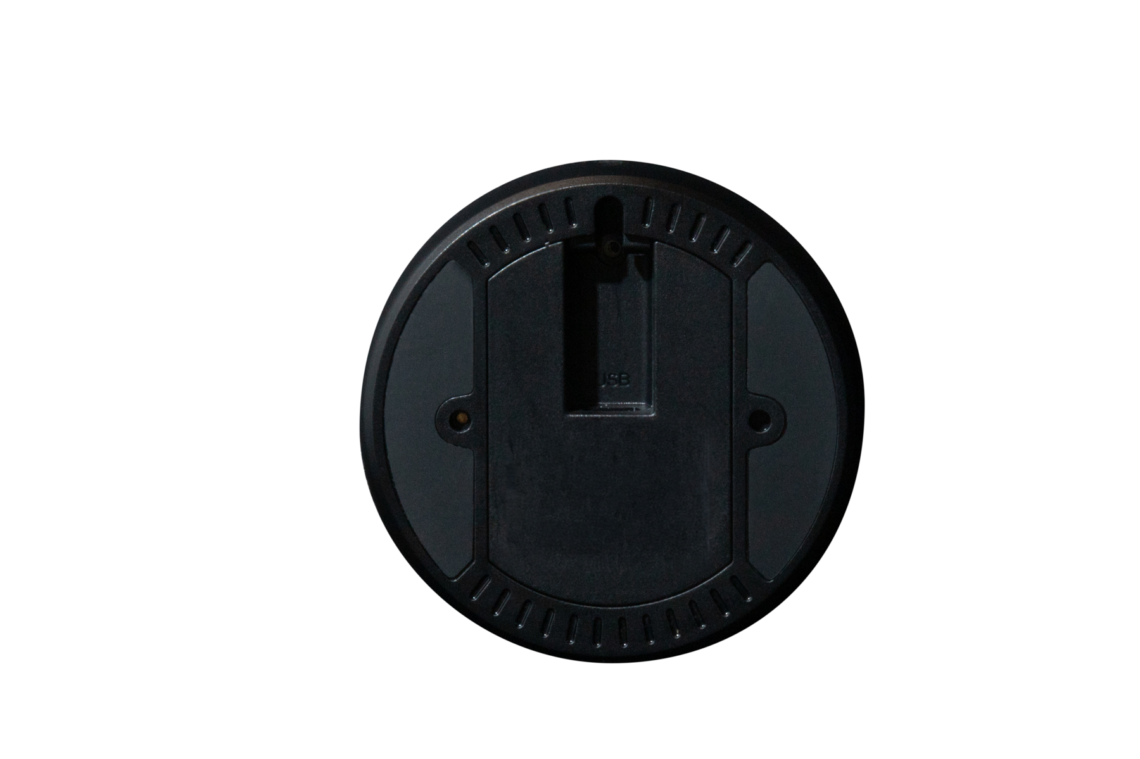

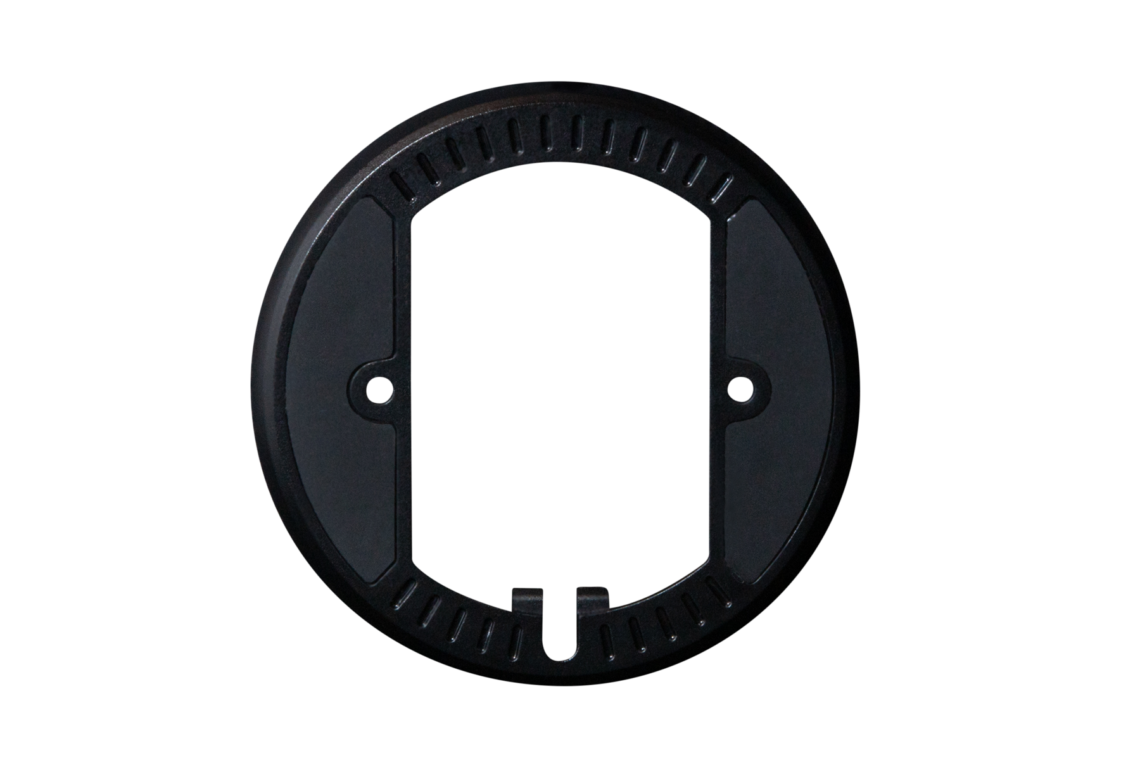

| Mounting / VESA | Screws |
| Power Supply | 12V / 2A DC input |
| Power Supply Included? | No |
| Pogo Pins | N.A. |
Other
| OSD Language | no OSD |
| Clock Battery (for RTC) | N.A. |
| Storage Temp | -10~55 degrees C |
| Working Temp | 0 ~ 40 degrees C |
| Storage/Working Humidity | 10 ~ 90% non-condensing |
| MTBF | 50,000 hours demonstrated |
| Standard Warranty | 2 years |
| Certifications | UKCA, CE, FCC, RoHS, REACH |
| Art. No | 7031200 |
