TMP-22X
(R24-1001)
Art. No: 3022105

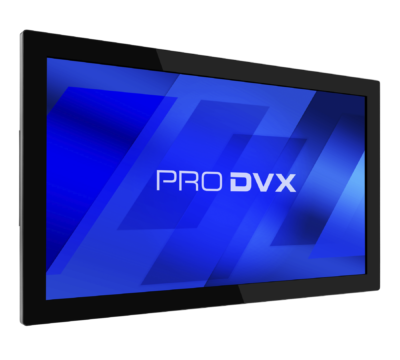

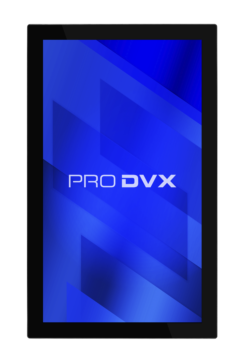

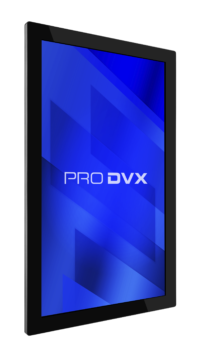

The TMP-22X is a 21.5-inch touch monitor display designed to enhance your interactive solutions. It features an accurate multi touch panel, that provides high brightness and received a non-glare treatment for enhanced visibility. The TMP-22X is easily installable with its VESA mounting frame, ensuring setup is a breeze. This makes the TMP-22X the perfect touchscreen monitor for a range of solutions from point of sale, self-service, and interactive signage to wayfinding, queuing and customer feedback.
Panel
| Panel type | TFT LCD IPS |
| Aspect ratio | 16:9 wide |
| Backlight | Edge-LED backlight |
| Brightness | 250 cd/m2 |
| Viewing angle | H178 / V178 |
| Contrast ratio | 3000 to 1 |
| Touch Type | 10 TP Pcap 20ms |
| Treatment | Non-glare |
| Convenience | Landscape,Portrait,Table Mode |
| Operation hours | 24h / 7d |
System
| Cooling | Fanless |
| Video input | Yes, HDMI in |
| Video out | N.A. |
| LED Light Bar | N.A. |
| I/O Ports | 12 V DC-IN,HDMI-in 1.4,USB 2.0 |
| Power over Ethernet (PoE) | N.A. |
| Integrated NFC | N.A. |
| Camera | N.A. |
Video/Audio
| Speakers | 2 x 3 W |
| Audio Jack Output 3.5mm | YES |
Physical
| Housing | ABS+PC (Macrolon) |
| Color | Black |
| Weight | 3300 g |
| Dimensions | 530,5 x 321,22x 35 mm |
| Mounting / VESA | VESA 100 |
| Power Supply | 12 V / 2 A (EU, UK, US) |
| Power Usage | 20 Watt |
| Pogo Pins | N.A. |
Other
| OSD Language | no OSD |
| Storage Temp | -10~55 degrees C |
| Working Temp | 0 ~ 40 degrees C |
| Storage/Working Humidity | 0 ~ 95% non-condensing |
| MTBF | 50,000 hours demonstrated |
| Standard Warranty | 3 years |
| Certifications | CE, RoHS, REACH |
| Art. No | 3022105 |
