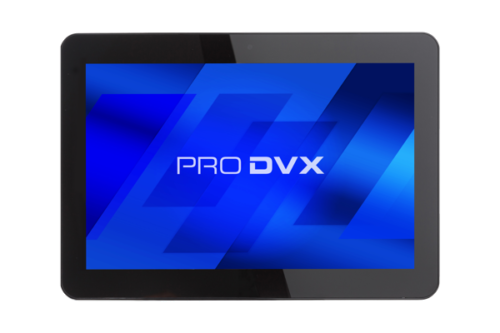

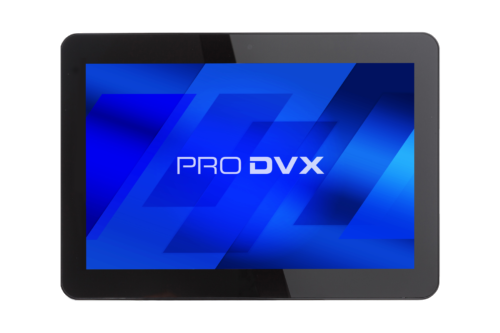

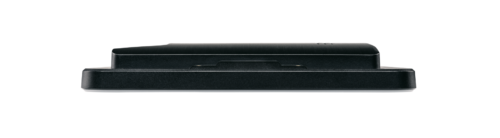

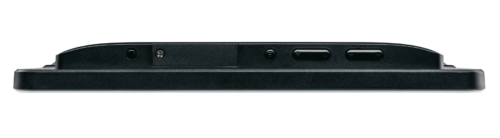

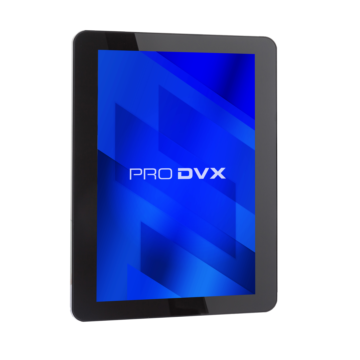

APPC-10XP (camera) | 10" Android Touch Display PoE Camera

  • 10.1" Android Panel PC
  • Power-over-Ethernet +
  • 5MP front camera
  • The ProDVX APPC-10XP (camera) is an Android Panel PC with a 10.1” Touch Display, Power over Ethernet (PoE) and 2 sided LED Bar (RGB). Next to that, it comes with a 5MP camera. The ProDVX APPC-10XP (camera) comes with Android 8 (or optional Linux). This device can be connected through RJ45 LAN, WiFi, Bluetooth and contains a standard option to schedule reboot or shut down. This Android SOC Touch Display has a projected capacitive touch display and plastic housing.
    Panel
    Panel type TFT LCD IPS
    Resolution 1280 x 800
    Aspect Ratio 16:10 wide
    Backlight Edge-LED backlight
    Brightness 500 cd/m2
    Viewing Angle H 160° / V 160°
    Contrast Ratio 800 : 1
    Touch Type 10 point touch projected capacitive
    System
    CPU Cortex A17, Quad Core, RK3288
    GPU MALI T764 / 3D Graphic Engine (4K)
    System Memory 2 GB DDR3 SDRAM
    Internal Storage 16 GB eMMC Flash
    External Storage SD-Card Slot (door)
    OS Android 8 (optional Linux)
    LED Light Bar N/A

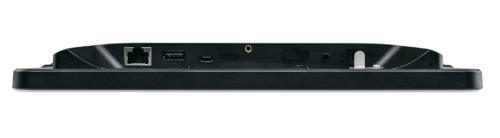

    I/O Ports Micro-USB,USB,HDMI,GPIO Port,3.5 mm audio-out,RJ45,12 V DC-IN
    Network LAN RJ45 10/100/1000 Mbps LAN
    WiFi 802.11 a/b/g/n/ac
    Bluetooth BT 4.2
    Power over Ethernet (PoE) IEEE 802.3at
    Integrated NFC N/A
    Camera 5 M/P front camera
    Video/Audio
    Video Support 3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS
    Audio Support AAC,ASF,MP2,OGG,WAV,WMA
    Photo Support JPG,JPEG,PNG,BMP,GIF
    Microphone YES
    Speakers 2 x 2 W
    Audio Jack Output 3.5mm YES
    Physical
    Housing Plastic
    Color Black
    Weight 650 g
    Dimensions 256 x 181 x 27 mm
    Mounting / VESA VESA 75
    Power Supply 12 V / 2 A (EU, UK, US)
    Power Usage 10 ~ 20 Watt
    Other
    OSD Language Multi OSD language
    Clock Battery (for RTC) Lithium‐ion non‐rechargeable coin
    Storage Temp ‐10 ~ 55 degrees C
    Working Temp 0 ~ 40 degrees C
    Storage/Working Humidity 10 ~ 90 % non-condensing
    MTBF 50,000 hours demonstrated
    Standard Warranty 2 years
    Certifications FCC, CE, RoHS
