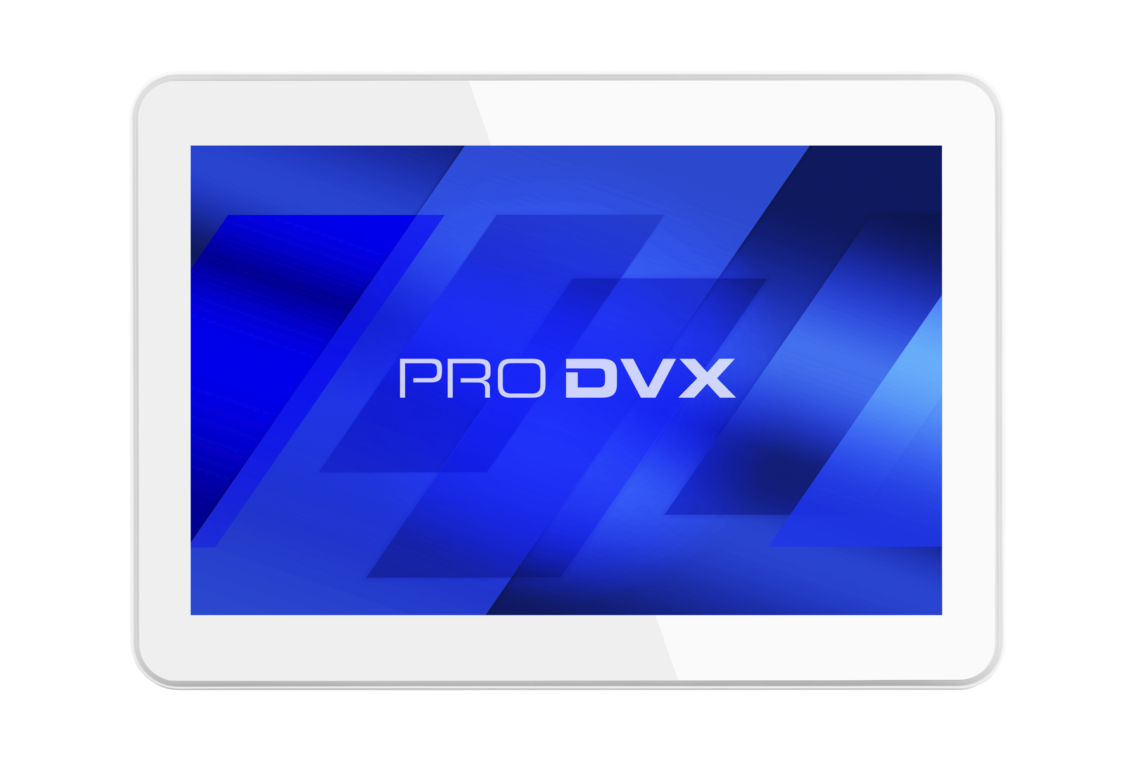

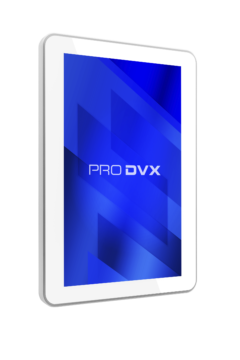

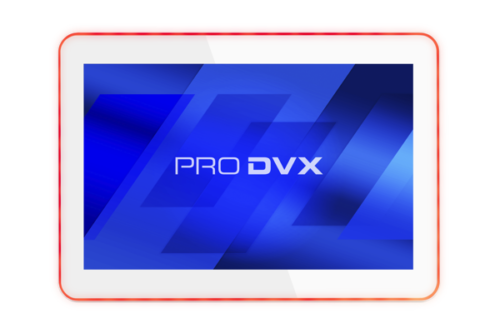

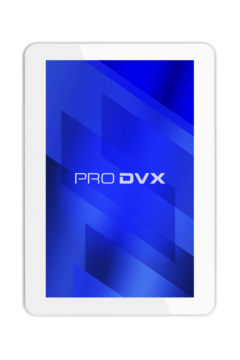

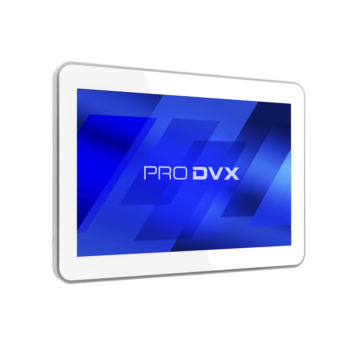

APPC-10SLBW | 10" Android Touch Display PoE SLB White

  • 10.1" Android Panel PC
  • Power-over-Ethernet +

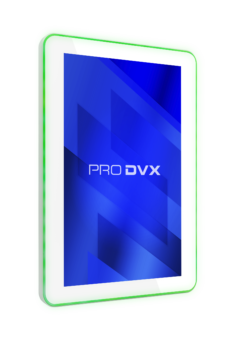

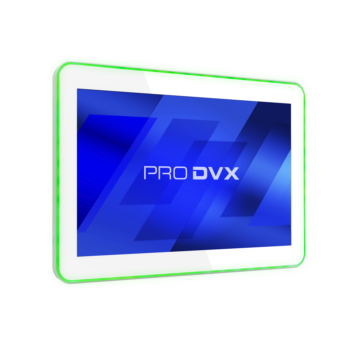

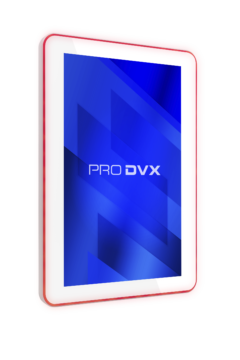

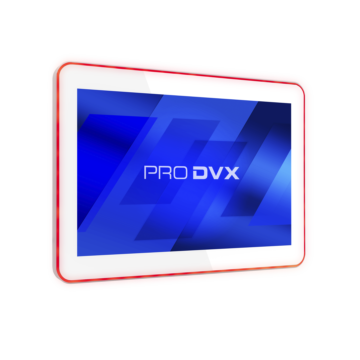

  • Surround LED Bar
  • The ProDVX APPC-10SLBW is a prize-winning white Commercial Grade 10.1 inch Android Panel PC with Power over Ethernet (PoE) and Surround LED Status Light Bar (Full RGB). The APPC-10SLWB has won an International Business Award (IBA) for its outstanding design and reliability. With its Surround LED Bar it is the ideal solution for Room Booking, Room Signage and Access Control. This device can be connected through RJ45 LAN, WiFi, Bluetooth and contains an option to schedule reboot or shut down. The APPC-10SLBW Android Panel PC standard comes with Android 8 (or optional Linux) and has a projected capacitive touch display and plastic housing. Optional accessories are a 1D/2D Barcode Scanner, NFC Module and Motion Sensor.
    Panel
    Panel type TFT LCD IPS
    Resolution 1280 x 800
    Aspect Ratio 16:10 wide
    Backlight Edge-LED backlight
    Brightness 500 cd/m2
    Viewing Angle H 160° / V 160°
    Contrast Ratio 800 : 1
    Touch Type 10 point touch projected capacitive
    System
    CPU Cortex A17, Quad Core, RK3288
    GPU MALI T764 / 3D Graphic Engine (4K)
    System Memory 2 GB DDR3 SDRAM
    Internal Storage 16 GB eMMC Flash
    External Storage SD-Card Slot (door)
    OS Android 8 (optional Linux)

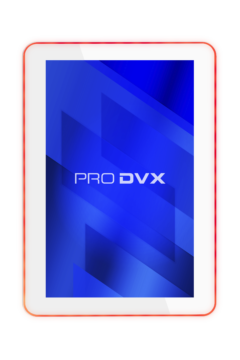

    LED Light Bar RED / GREEN / BLUE (full RGB)

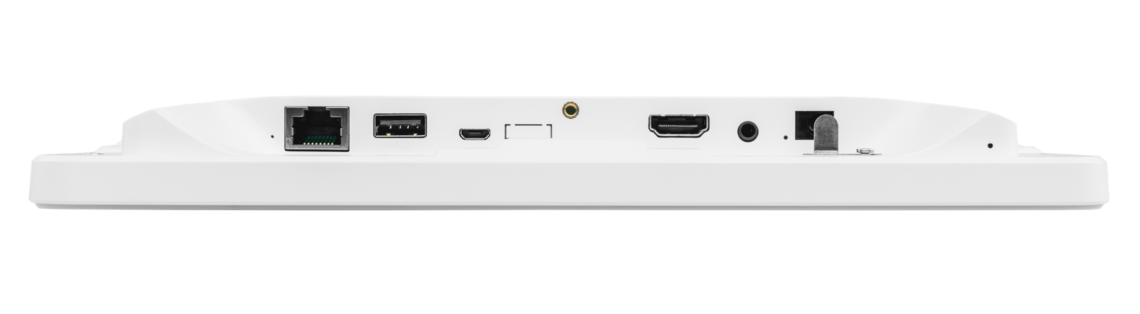

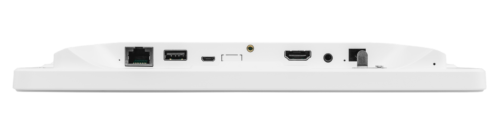

    I/O Ports Micro-USB,USB,HDMI,GPIO Port,3.5 mm audio-out,RJ45,12 V DC-IN
    Network LAN RJ45 10/100/1000 Mbps LAN
    WiFi 802.11 a/b/g/n
    Bluetooth BT 4.2
    Power over Ethernet (PoE) IEEE 802.3at (PoE+)
    Integrated NFC N/A
    Camera N/A
    Video/Audio
    Video Support 3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS
    Audio Support AAC,ASF,MP2,OGG,WAV,WMA
    Photo Support JPG,JPEG,PNG,BMP,GIF
    Microphone YES
    Speakers 2 x 2 W
    Audio Jack Output 3.5mm YES
    Physical
    Housing Plastic
    Color White
    Weight 650 g
    Dimensions 256 x 181 x 27 mm

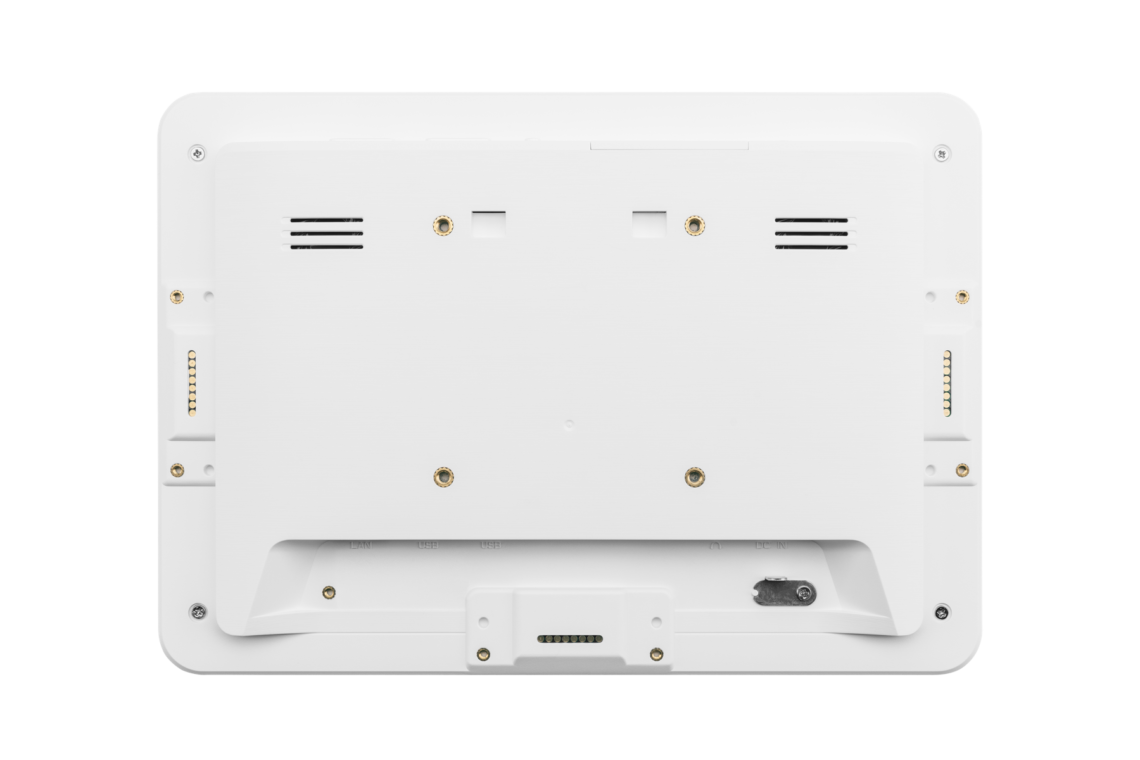

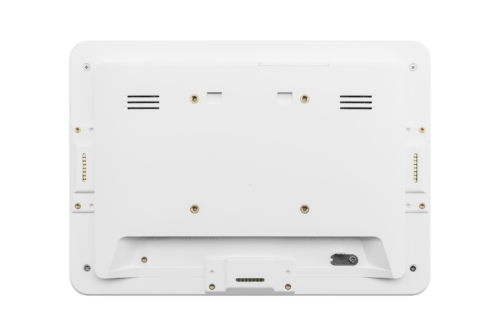

    Mounting / VESA VESA 75
    Power Supply 12 V / 2 A (EU, UK, US)
    Power Usage 10 ~ 20 Watt
    Other
    OSD Language Multi OSD language
    Clock Battery (for RTC) Lithium‐ion non‐rechargeable coin
    Storage Temp ‐10 ~ 55 degrees C
    Working Temp 0 ~ 40 degrees C
    Storage/Working Humidity 10 ~ 90 % non-condensing
    MTBF 50,000 hours demonstrated
    Standard Warranty 2 years
    Certifications FCC, CE, RoHS
